The Flexibility to Work with Any Home

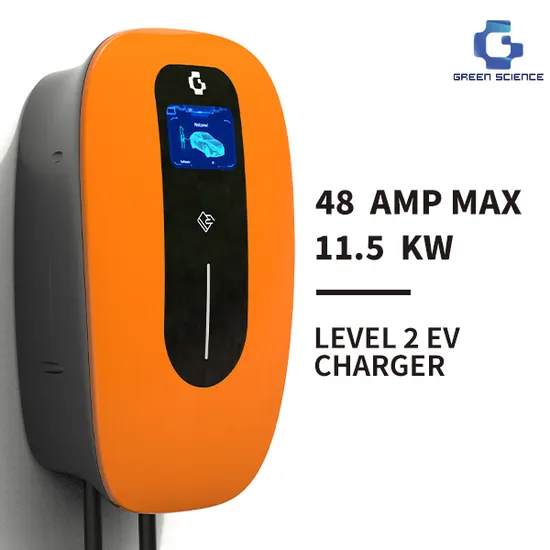

A wall outlet just doesn't cut it, a flexible home charger that can deliver 48 amps Max of power.
Works with Any EV
Green Science EV Charger can charge any EV, including your next one. It uses a universal SAE J1772 connector and has
been tested with all top-selling models: Chevrolet Bolt EV, Chevy Volt, Hyundai Kona, Kia Niro, Nissan LEAF, Tesla, Toyota
Prius Prime and more.

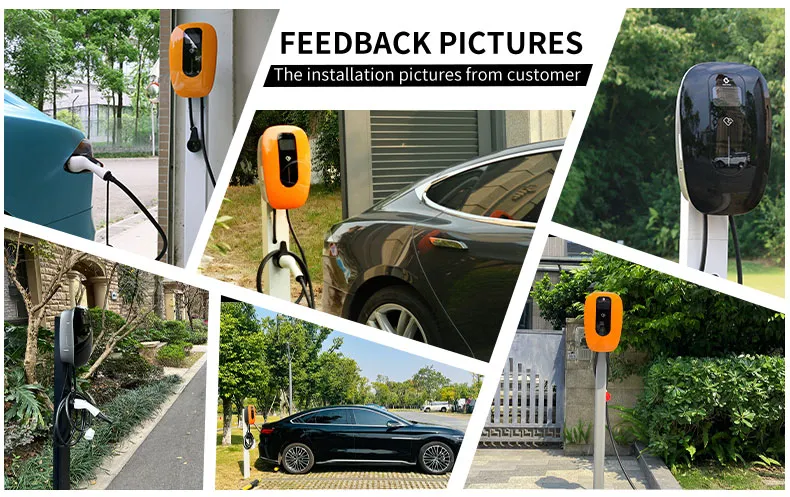

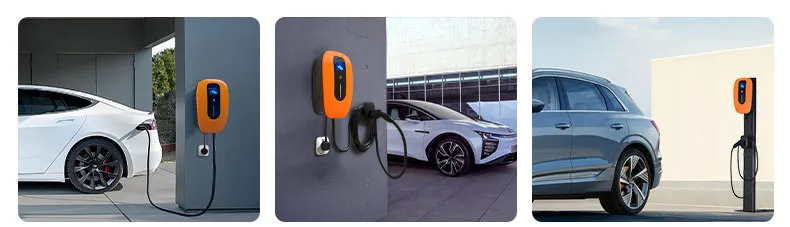

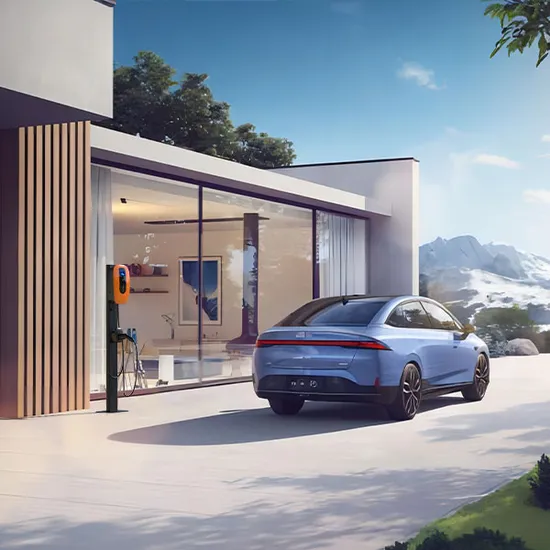

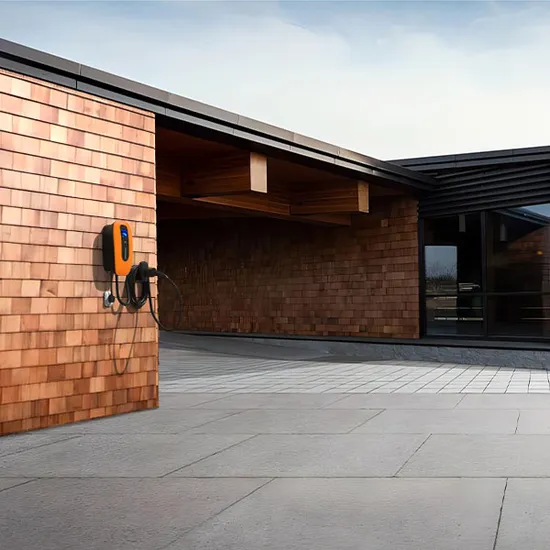

Wall-mounted or Pedestal-mounted
Easy installation, meeting different working scenarios.
| Model | GS-AC32-B01 | GS-AC40-B01 | GS-AC48-B01 |
| Power Supply | L1+L2+Ground | ||
| Rated Voltage | 240V AC Level 2 | ||
| Rated Current | 32A | 40A | 48A |
| Frequncy | 60Hz | 60Hz | 60Hz |
| Rated Power | 7.5kw | 10kw | 11.5kw |
| Charging Connector | SAE J1772 Type 1 | ||
| Cable Length | 11.48 ft.(3.5m) 16.4ft. (5m) or 24.6ft(7.5m) | ||
| Input Power Cable | NEMA 14-50 or NEMA 6-50 or Hardwired | ||
| Enclosure | PC 940A +ABS | ||
| Control Mode | Plug& Play /RFID Card/App | ||
| Display | 4.3 inch LCD | ||
| Emergency Stop | Yes | ||
| Internet | WIFI /Bluetooth/RJ45/4G (Optional) | ||
| Protocol | OCPP 1.6J | ||
| Energy Meter | Optional | ||
| IP Protection | NEMA Type 4 | ||
| RCD | CCID 20 | ||
| Impact Protection | IK10 | ||
| Electric Protection | Over Current Protection, Residual current protection, Ground Protection, Surge protection, Over/Under Voltage protection, Over/Under temperature protection | ||
| Certification | FCC | ||
| Manufactured Standard | SAE J1772, UL2231, and UL 2594 | ||
