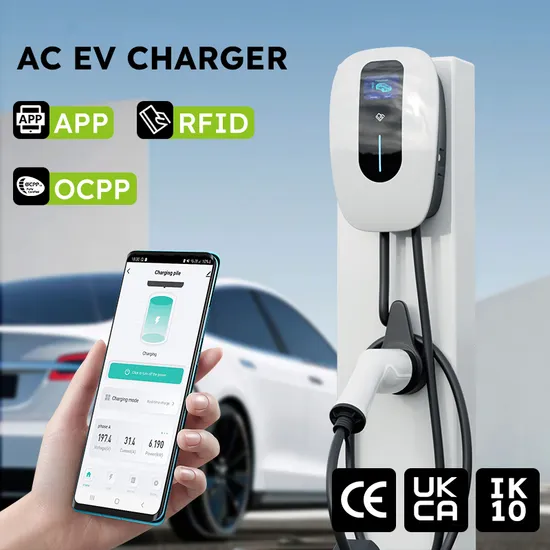

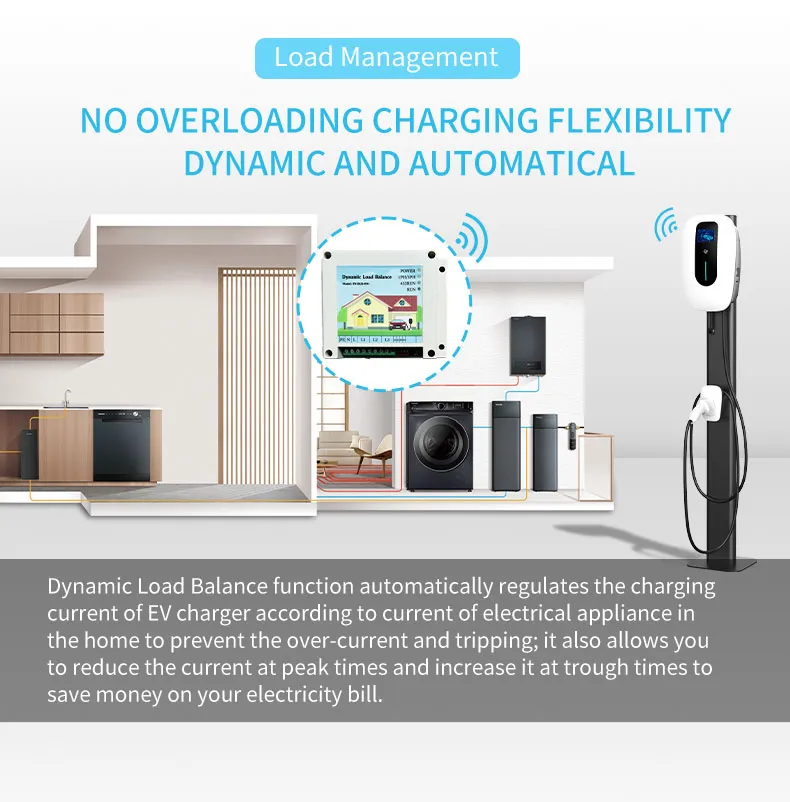

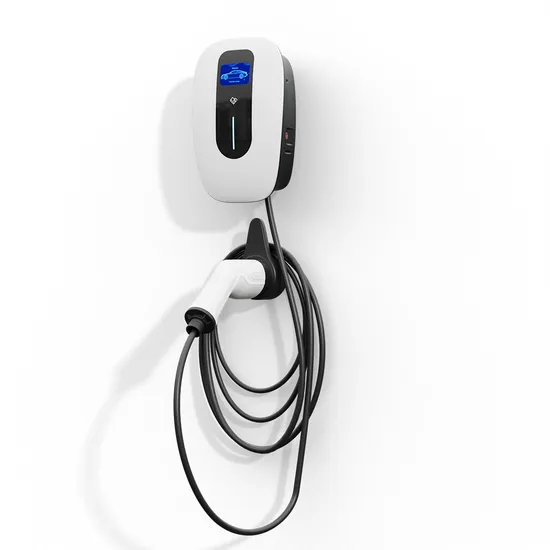

Good Price APP/RFID Card EV Charger Load Balance Optional

Customization:	Available
Connector Type:	Type 2

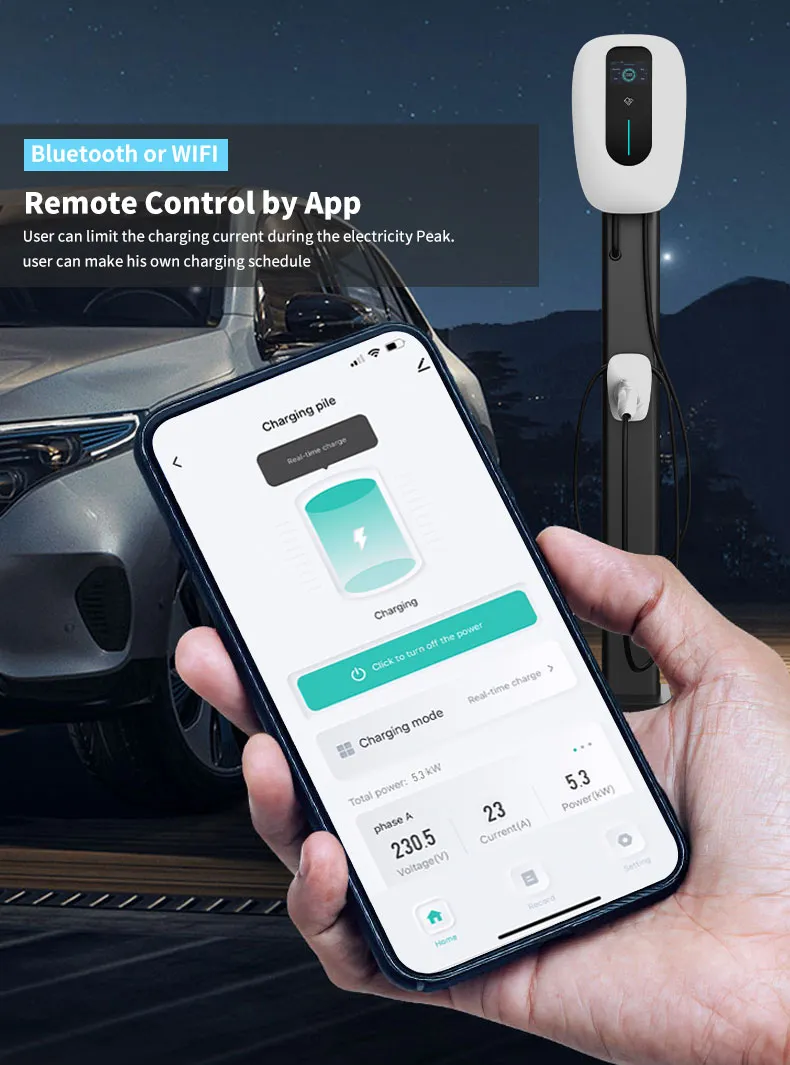

Start Mode:	APP Control, Book Charging, Remote Control, RFID Card

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

GS7-AC-B01

Location

Private Use

Installation

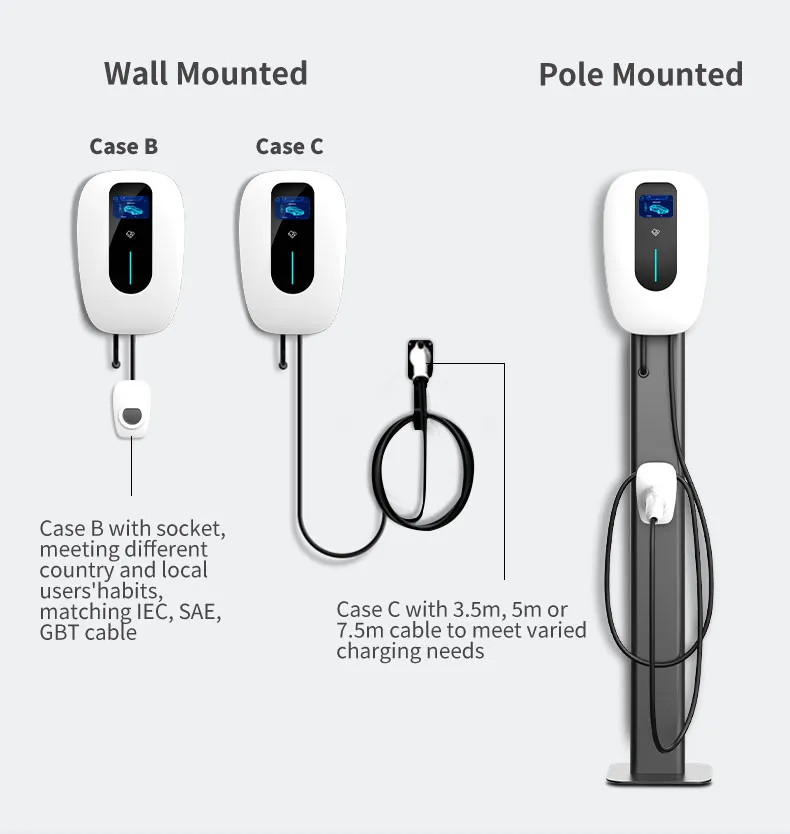

Wall Mounted

Charge Method

Quick Charge

Input Voltage

200-240V AC

Power Supply

1 Phase

Output Power

7kw

Input Current

32A

RCD

30mA Type a+6mA DC

Connector

Type 2 /Gbt

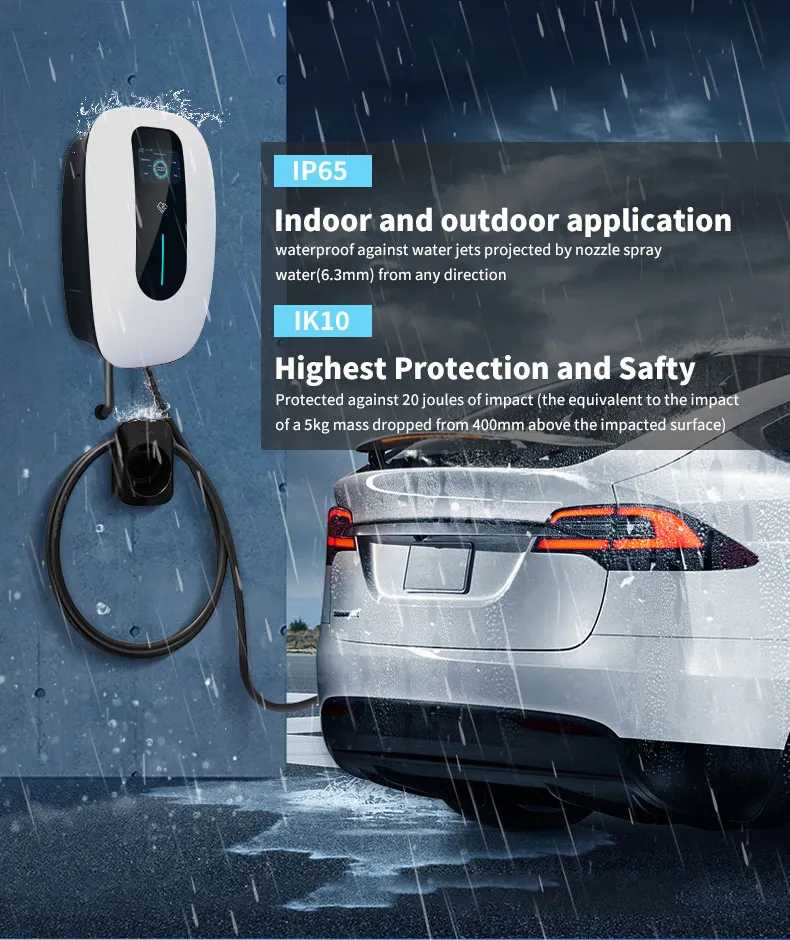

Ingress Protection

IP65

Impact Protection

Ik10

Communication

RFID Card/APP/WiFi+Bluetooth

Certificate

CE/RoHS/FCC/ISO

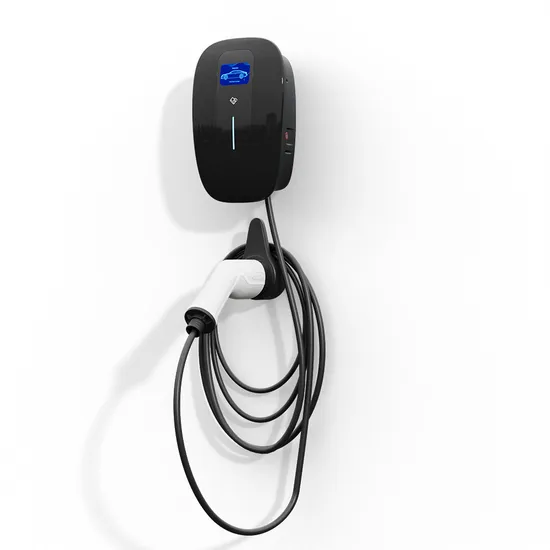

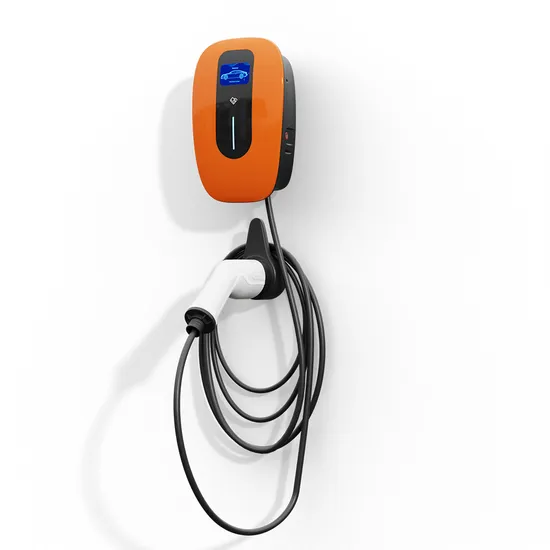

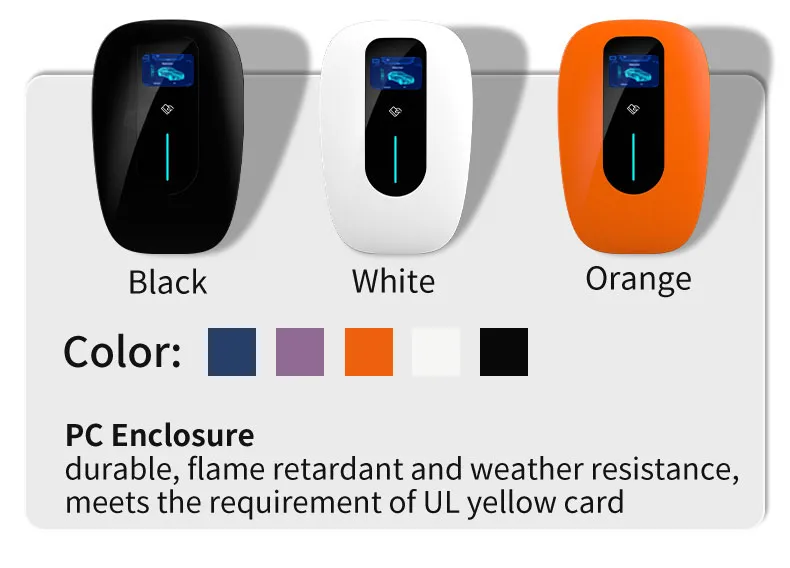

Color

Black/White/Orange/Customized

Product Dimension

320*210*120mm(H*W*D)

Cable Length

5m/Customized

Emergency Stop

Yes

Supply Ability

10000/Sets Per Month

Transport Package

Carton Package

Specification

52*32*29

Trademark

GERUNSAISI

Origin

Sichuan China

HS Code

8537109090

Production Capacity

10000 Month

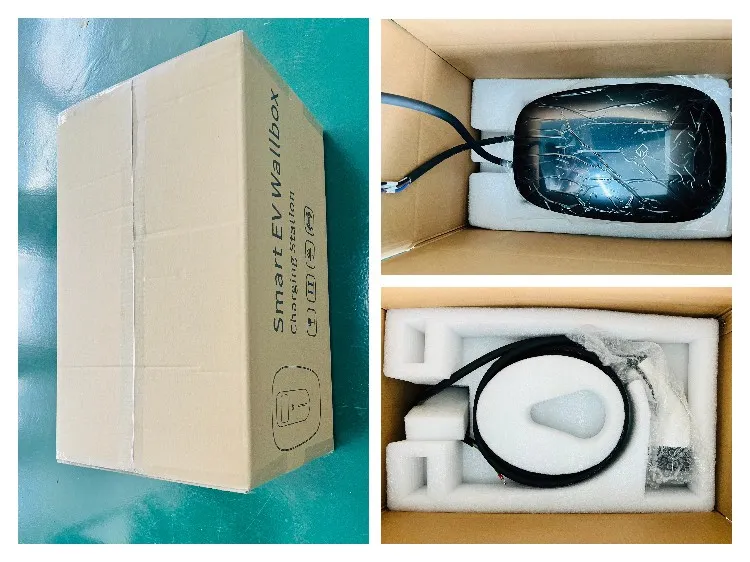

Packaging & Delivery

Package Size

52.00cm * 32.00cm * 29.00cm

Package Gross Weight

7.000kg

Product Description

Data	Model	GS7-AC-B01	GS11-AC-B01	GS22-AC-B01
Input	Power Supply	1P+N+PE	3P+N+PE	3P+N+PE
	Rated Voltage	230V AC	400V AC	400V AC
	Rated Current	32A	16A	32A
Output	Output Voltage	230V AC	400V AC	400V AC
	Output Current	32A	16A	32A
	Rated Power	7KW	11KW	22KW
User Interface	Charging Port	Type 2/GBT
	Cable Length	5M/Customized
	LED Indicator	Yellow/Red/Green
	Start Mode	Plug&Play / RFID Card / APP
	Emergency Stop	YES
Communication	WIFI	Optional
	3G/4G/5G	Optional
	OCPP	OCPP 1.6 Json (OCPP 2.0 Optional)

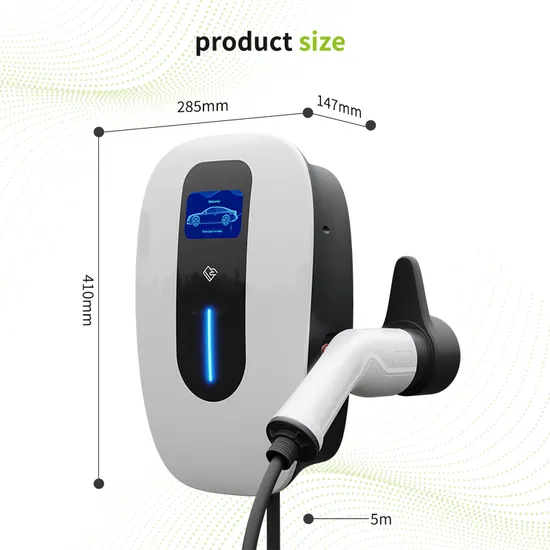

Package	Unit Size	340285147mm
	Package Size	520320290mm	520320290mm	520320290mm
	Net Weight	6KGS	8KGS	9KGS
	Gross Weight	7KGS	9KGS	10KGS

Good Price APP/RFID Card EV Charger Load Balance Optional

Questions and Answers:

1.Are you a trading company or a factory?
We are a high-tech enterprise with our own production plant, which integrates design,R&D, and manufacturing.

2.What is your lead time for customer order?
It usually takes 1-2 weeks to produce when it comes to a batch of non-customized models. It usually takes 4-6 weeks to produce when it comes to a batch of customized models.

3.What transportation methods are available?
We provide customers with express, air and sea services. Express includes FedEx, DHL, TNT,UPS, etc.

4.What is your delivery time?
Express: 3 - 7 days By air: 5 - 10 days By sea: 20 - 35 days, depending on different ports.

5. What payment terms?
We accept all methods of payment: PayPal, T/T, L/C etc, please contact us for more details.

6.Is OEM service available?
We provide a series of OEM customized services.

7.Is ODM service available?
We provide ODM services. Please refer to the relevant page for more details.

8.Can I customize products with special features?
We have complete technical reserves. We can meet all functional requirements raised by customers within a reasonable range.

9.How long is the product warranty time?
1 year warranty. Based on the requirements of policies and regulations in different regions, we can also provide customers with personalized solutions to extend the warranty time.
