APP/RFID Card Type 1 32A/40/48A Smart EV Charging Station for Home Use

Customization:	Available
Connector Type:	Type 1
Start Mode:	APP Control, Book Charging, Remote Control, RFID Card

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

GS-AC32-B01

Location

Private Use

Installation

Wall Mounted

Charge Method

Normal Charge

Input Voltage

220-240V AC

Power Supply

1 Phase

Output Power

7.5kw

Input Current

32A

RCD

30mA Type a+6mA DC

Connector

Type 1 Plug

Ingress Protection

IP65

Impact Protection

Ik10

Communication

RFID Card/APP/WiFi+Bluetooth

Certificate

FCC/NEMA

Color

Black/White/Orange/Customized

Product Dimension

340*285*147mm(H*W*D)

Cable Length

5m/Customized

Emergency Stop

Yes

Supply Ability

10000/Sets Per Month

Transport Package

Carton Package

Specification

52*32*29

Trademark

GERUNSAISI

Origin

Sichuan China

HS Code

8537109090

Production Capacity

10000 Month

Packaging & Delivery

Package Size

52.00cm * 32.00cm * 29.00cm

Package Gross Weight

7.000kg

Product Description

Smart Charging Management

Choose from 32A, 40A, or 48A models for high efficiency. Suitable for all vehicle types, maximizing efficiency and minimizing costs.

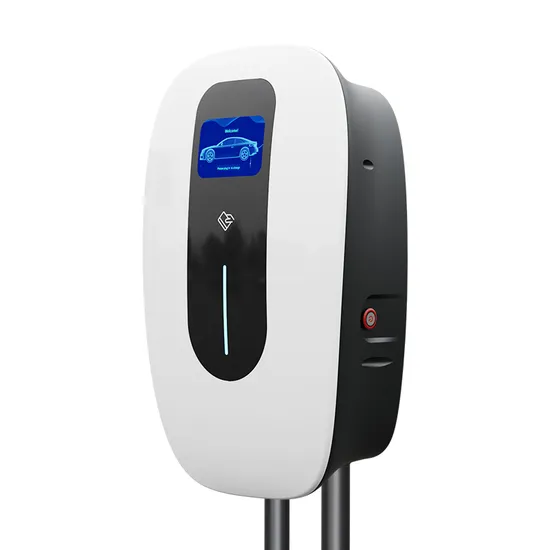

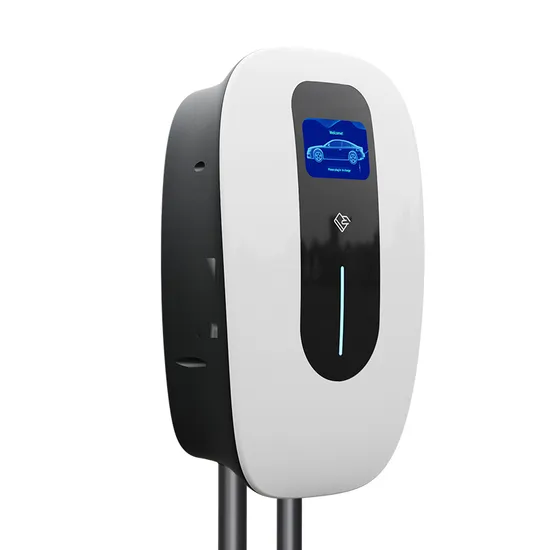

The charger is equipped with an LCD screen and LED indicators to clearly display charging status, ensuring you are always informed.

Smart Control and Secure Access

Start charging safely using an RFID card, ensuring secure and convenient access.

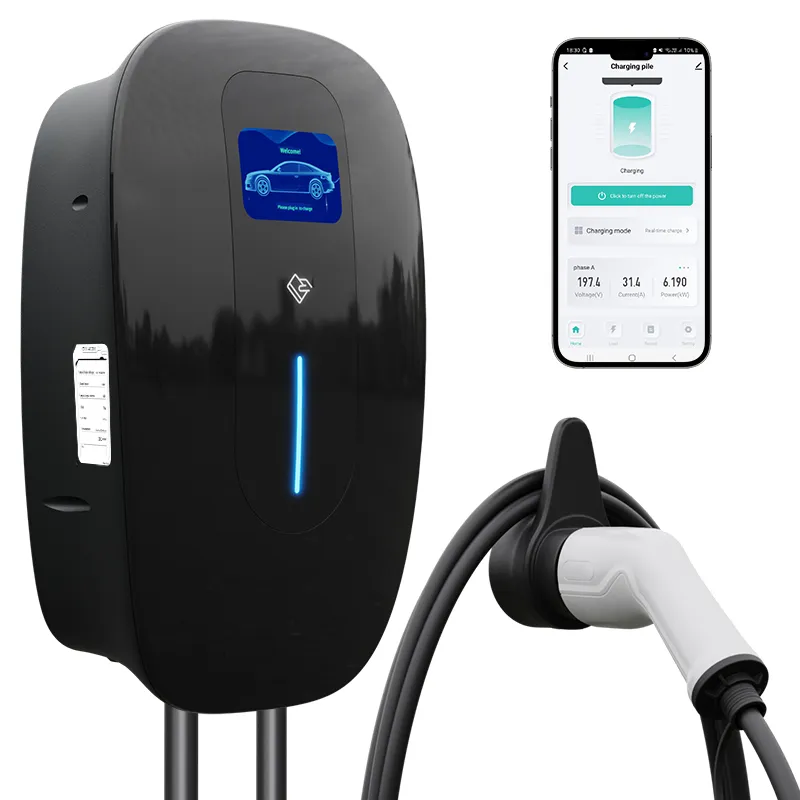

Manage all settings remotely via the Tuya app.

Effortlessly monitor, schedule, and adjust charging times and durations, ensuring convenience and privacy.

Flexible Power Distribution and Options

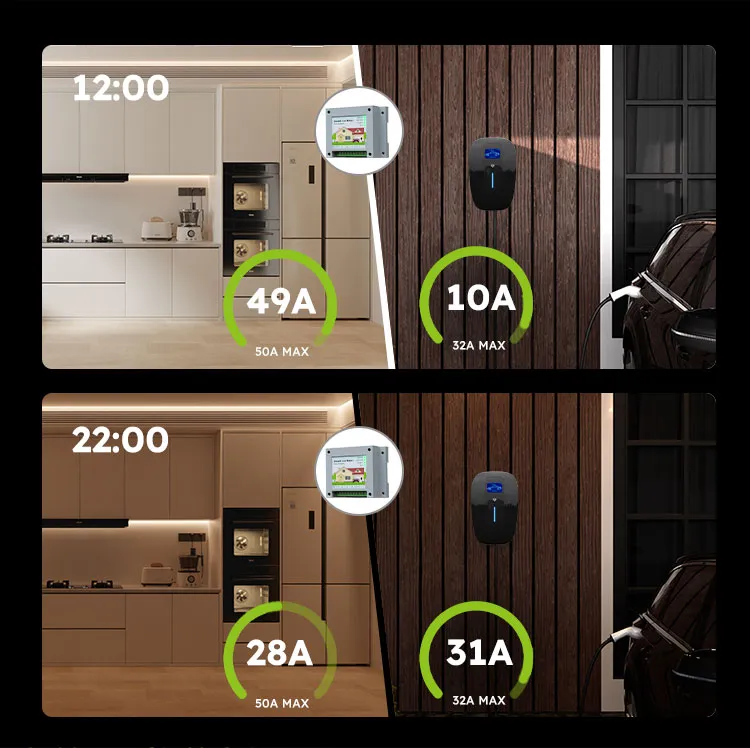

Support dynamic load balancing (DLB) for optimized power sharing between multiple EV chargers, home appliances, and solar energy systems.

Optional OCPP Integration

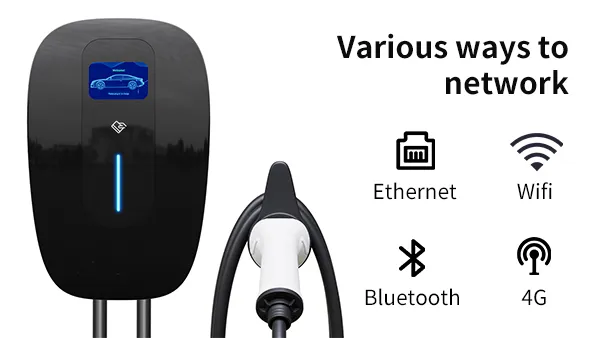

Our chargers support OCPP 1.6 (2.0) via Ethernet for seamless integration with both domestic and international platforms, making them ideal for commercial use.

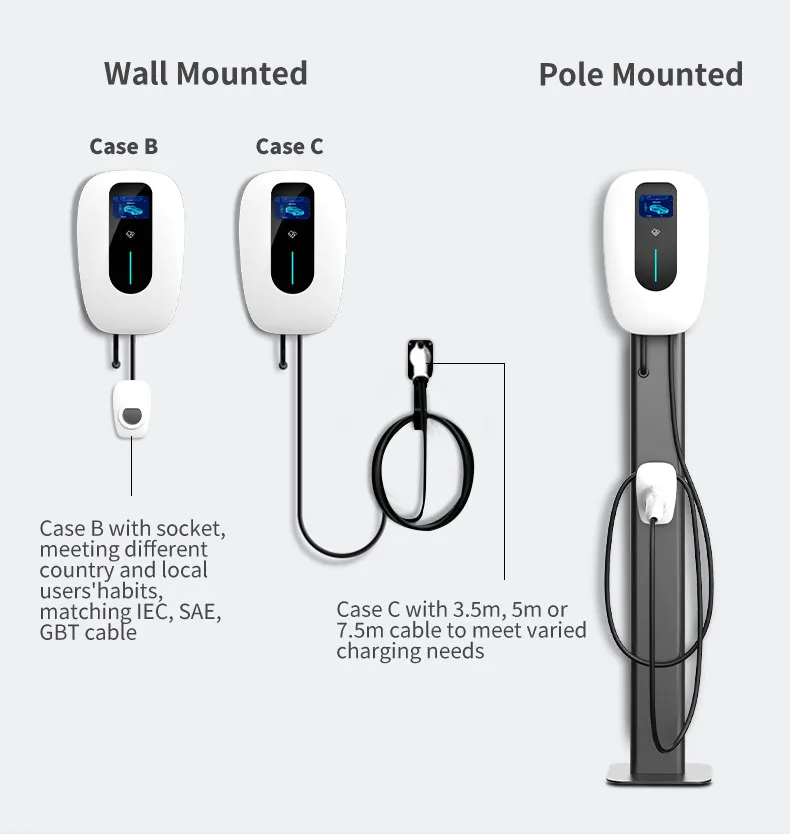

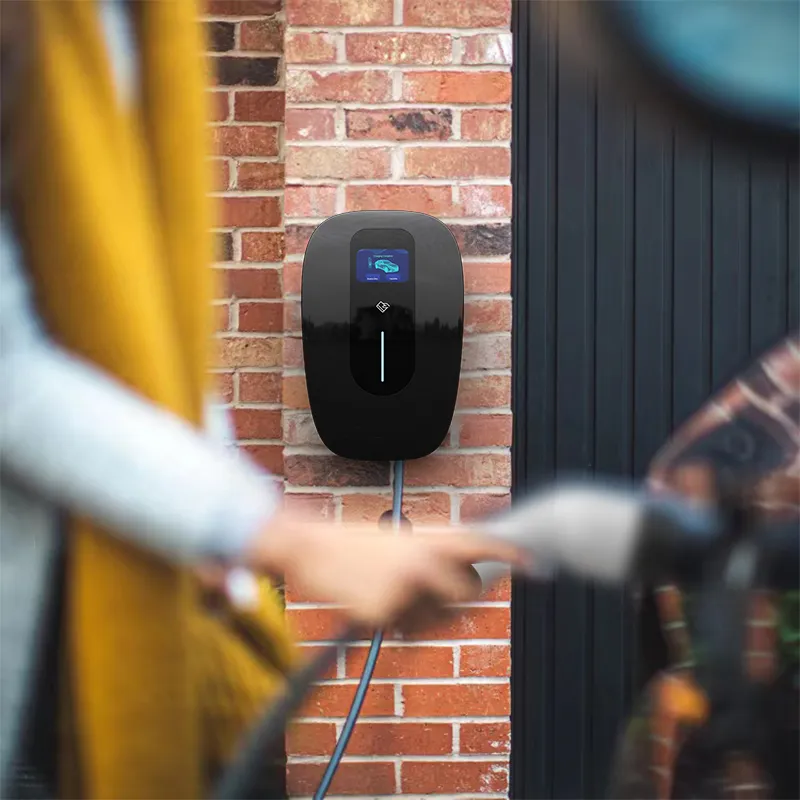

Flexible Installation Options

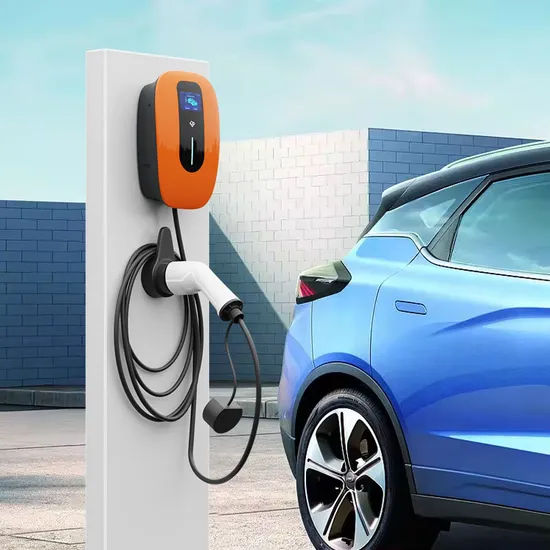

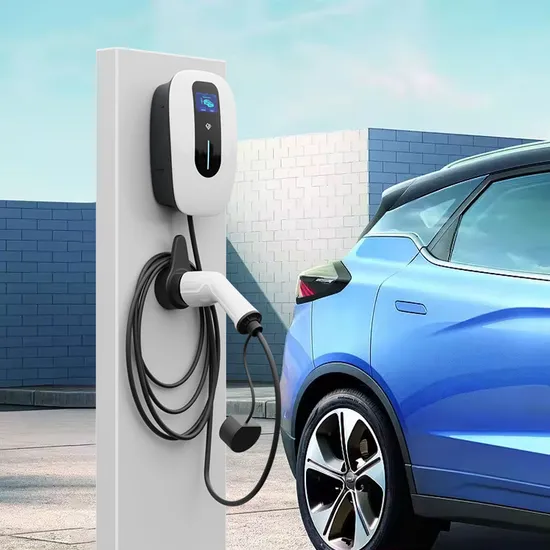

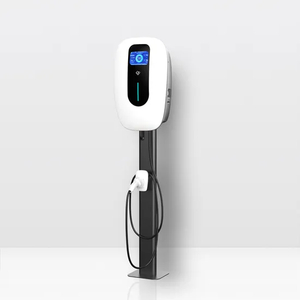

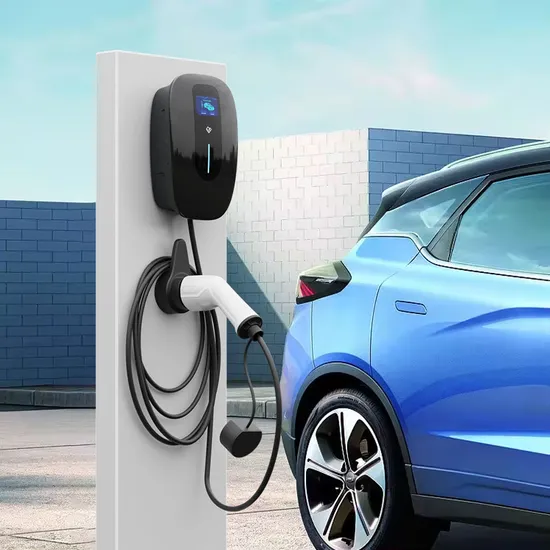

Choose between wall-mounted and pillar-mounted designs for easy installation at home or cost-effective solutions for commercial projects.

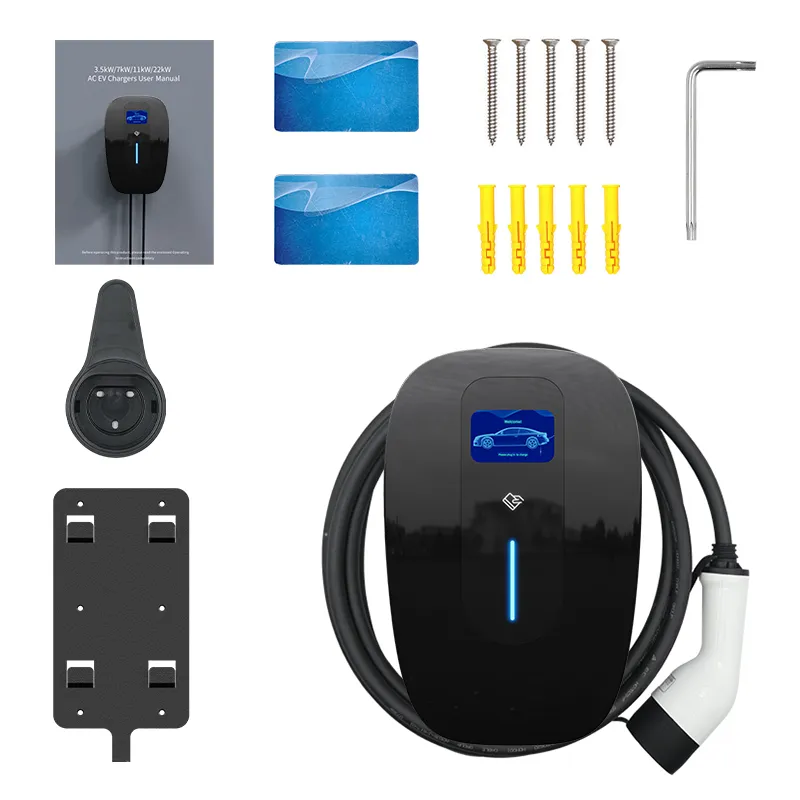

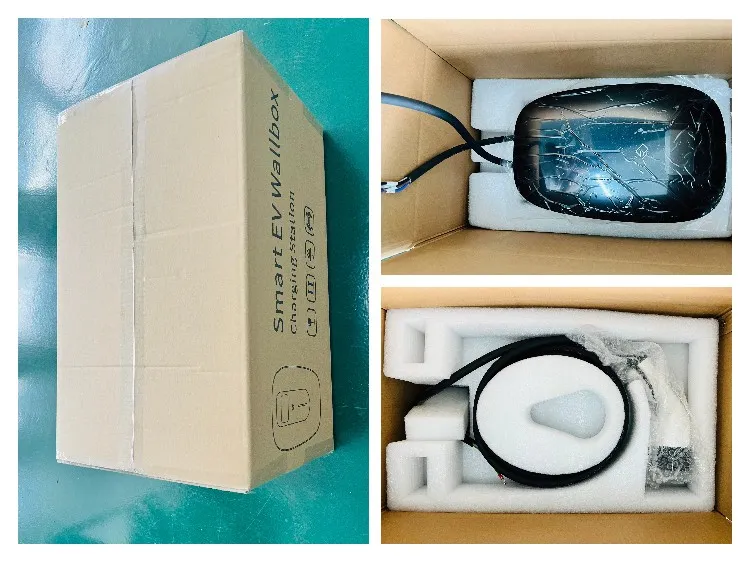

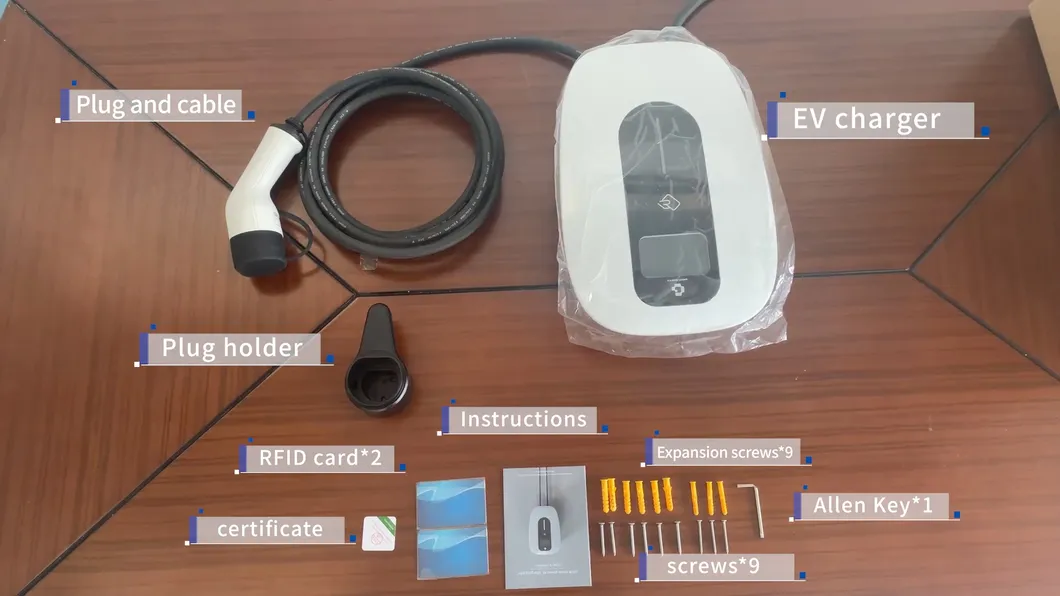

What's inside the carton?

Uncover the Perfect Fit

Discover the ideal charging solution tailored to your needs.

Reach out to us for personalized recommendations and exclusive offers.

Data	Model	GS-AC32-B01	GS-AC40-B01	GS-AC48-B01
Input	Power Supply	1P+N+PE	3P+N+PE	3P+N+PE
	Rated Voltage	220-240V AC Level 2
	Rated Current	32A	40A	48A
	Frequency	50/60HZ	50/60HZ	50/60HZ
	Rated Power	7.5KW	10KW	11.5KW
User Interface	Charging Connector	SAE J1772 Type 1
	Cable Length	5M/Customized
	Input Cable Connector	NEMA 14-50 or NEMA 6-50 or Hardwired
	LED Indicator	Yellow/Red/Green
	Start Mode	Plug&Play / RFID Card / APP
	Emergency Stop	YES
Communication	WIFI	Optional
	3G/4G/5G	Optional
	OCPP	OCPP 1.6 Json (OCPP 2.0 Optional)
Package	Unit Size	340285147mm
	Package Size	520320290mm	520320290mm	520320290mm
	Net Weight	6KGS	8KGS	9KGS
	Gross Weight	7KGS	9KGS	10KGS

APP/RFID Card Type 1 32A/40/48A Smart EV Charging Station for Home Use

Questions and Answers:

1.Are you a trading company or a factory?
We are a high-tech enterprise with our own production plant, which integrates design,R&D, and manufacturing.

2.What is your lead time for customer order?
It usually takes 1-2 weeks to produce when it comes to a batch of non-customized models. It usually takes 4-6 weeks to produce when it comes to a batch of customized models.

3.What transportation methods are available?
We provide customers with express, air and sea services. Express includes FedEx, DHL, TNT,UPS, etc.

4.What is your delivery time?
Express: 3 - 7 days By air: 5 - 10 days By sea: 20 - 35 days, depending on different ports.

5. What payment terms?
We accept all methods of payment: PayPal, T/T, L/C etc, please contact us for more details.

6.Is OEM service available?
We provide a series of OEM customized services.

7.Is ODM service available?
We provide ODM services. Please refer to the relevant page for more details.

8.Can I customize products with special features?
We have complete technical reserves. We can meet all functional requirements raised by customers within a reasonable range.

9.How long is the product warranty time?
1 year warranty. Based on the requirements of policies and regulations in different regions, we can also provide customers with personalized solutions to extend the warranty time.
