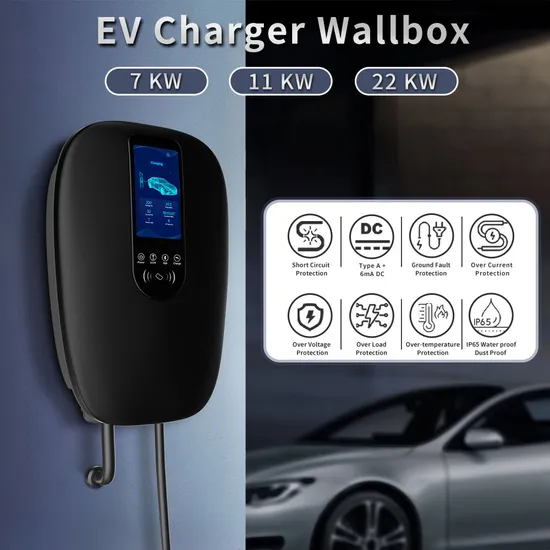

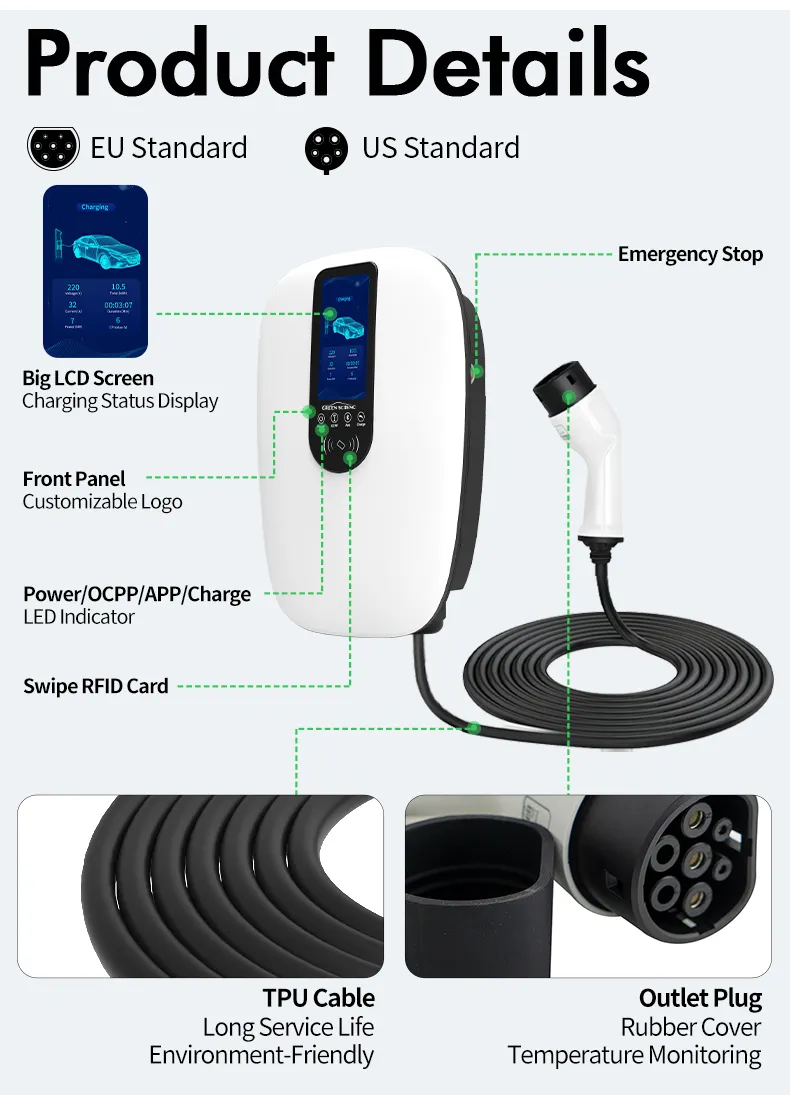

Detailed Photos
Product Parameters
Technical Datasheet | Model | GS7-AC-B02 | GS11-AC-B02 | GS22-AC-B02 |
| Power Supply | 1P+N+PE | 3P+N+PE | 3P+N+PE |
| Rated Voltage | 230 V AC | 400V AC | 400V AC |
| Rated Current | 32A | 16A | 32A |
| Frequency | 50/60 Hz | 50/60 Hz | 50/60 Hz |
| Output Voltage | 230V AC | 400V AC | 400V AC |
| Output Current | 32A | 16A | 32A |
| Max Output power | 7kw | 11kw | 22kw |
| Cable Connector | Type 2 |
| Cable length | 5m /Customized |
| Control Mode | Plug & Play / RFID card /App /OCPP 1.6J |

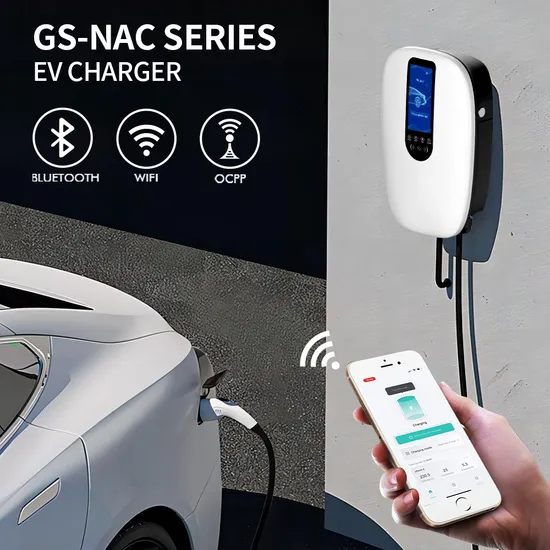

| Communication | WIFI / Ethernet / Blue tooth/ 4G |

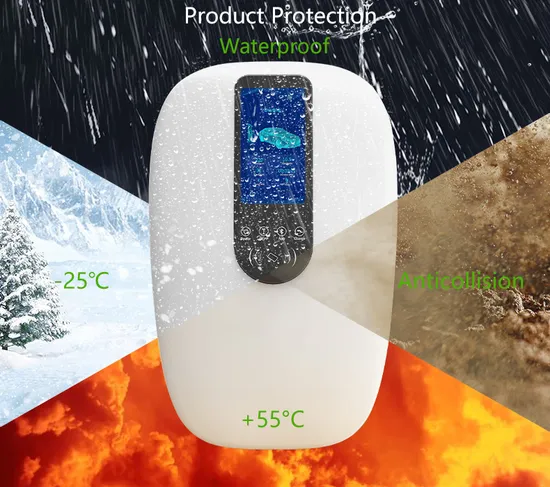

| IP Protection | IP 65 |
| RCD | 30mA Type A + 6mA DC |
| Certificate | CE , Rohs |
| Warranty Period | 24 months |
| Package Dimensions | 470* 320*270 mm |
| Gross weight | 7kg |
| External Package | Carton |
Certifications
Compatibility
Our Advantages
FAQ
1. How long does it take to charge an electric vehicle?
Charging time varies based on the charger's power level, your vehicle's battery capacity, and its current state of charge. Level 1 charging can take 8 to 20 hours, Level 2 charging usually takes 4 to 8 hours, and Level 3 (DC fast charging) can provide an 80% charge in 20 to 40 minutes.
2. Where can I find EV charging stations?
EV charging stations are available at various locations, including homes, workplaces, shopping centers, parking garages, and along highways. You can use online maps or apps to locate charging stations.
3. Can I use a regular household outlet to charge my EV?
Yes, you can use a standard household outlet for Level 1 charging. However, it's a slower charging option and may not be suitable for daily use.
4. What types of connectors do EV chargers use?
There are several connector types, this will depend on the make/model you require.
5. Can I charge any electric vehicle at any charging station?
Not necessarily. Different EVs have different connectors and charging capabilities.
6. Can I charge my EV in the rain or snow?
Yes, most EV chargers and connectors are designed to be weather-resistant.
7. How much does it cost to charge an electric vehicle?
Charging costs can vary depending on your location, the electricity rate, and the charging station's pricing structure.
8. Do I need a special adapter to charge at different stations?
Some EVs come with adapters for different types of connectors, but it's essential to check your vehicle's compatibility with various charging standards and the need for adapters.
9. Can I install a charging station at home?
Yes, you can install a Level 2 charging station at your home if you have access to a dedicated electrical circuit. Professional installation is recommended for safety and optimal performance.
10. Are there public incentives for installing EV chargers?
Many regions offer incentives, tax credits, or rebates to encourage the installation of EV charging stations, both at homes and in public areas.
Check with local authorities for available incentives.
These questions cover some of the key aspects people often inquire about when it comes to EV chargers. If you have more specific questions, feel free to ask!
