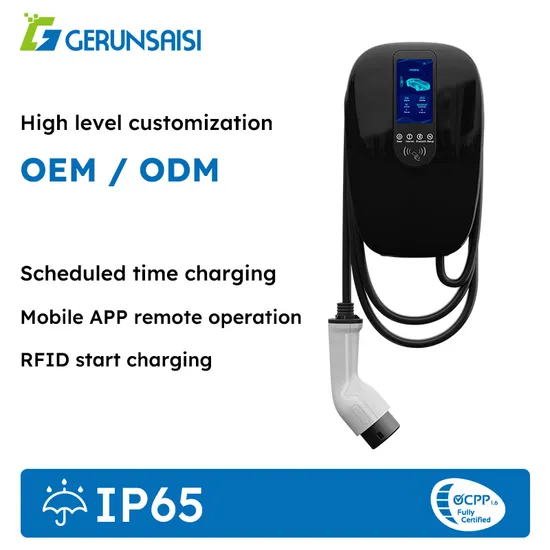

CE Smart Electric Vehicle Wallbox Car Charger Type/Gbt for Home Use

Customization:	Available
Connector Type:	Type 2
Start Mode:	APP Control, Book Charging, Remote Control, RFID Card

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

GS7-AC-B02

Location

Private Use

Installation

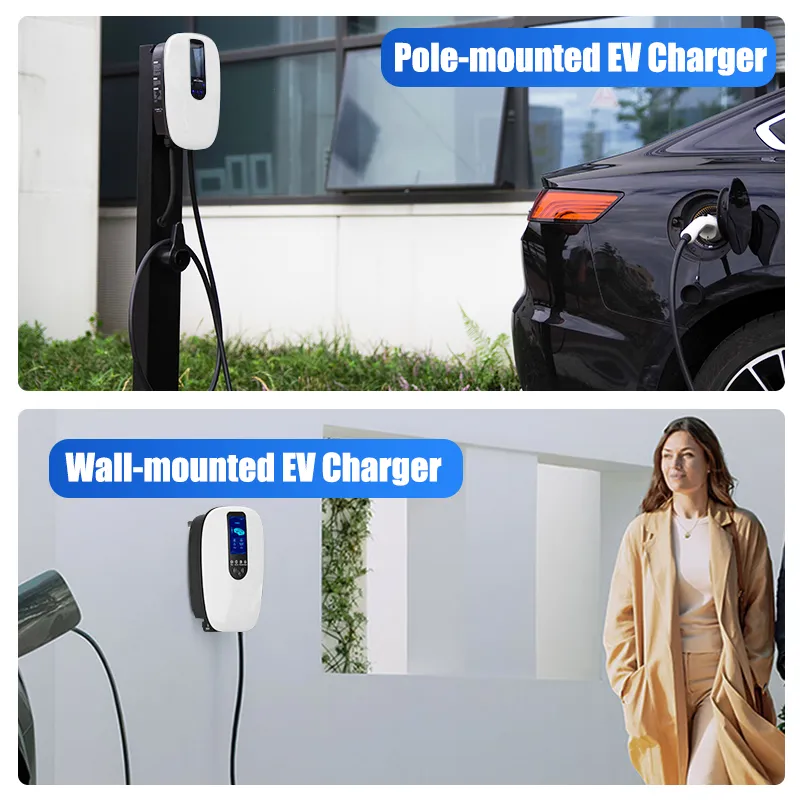

Wall Mounted

Charge Method

Normal Charge

Product Name

AC EV Charging Station

Rated Output Voltage

220V/400V

Power Supply

1 Phase / 3 Phase

Rated Output Current

16A/32A

Function

APP Control/ RFID Card

Output Power

7kw/11kw/22kw

Cable Length

5 Meters/ Customized

Charging Connector

Type2, Gbt

RCD

30mA Type a+6mA DC

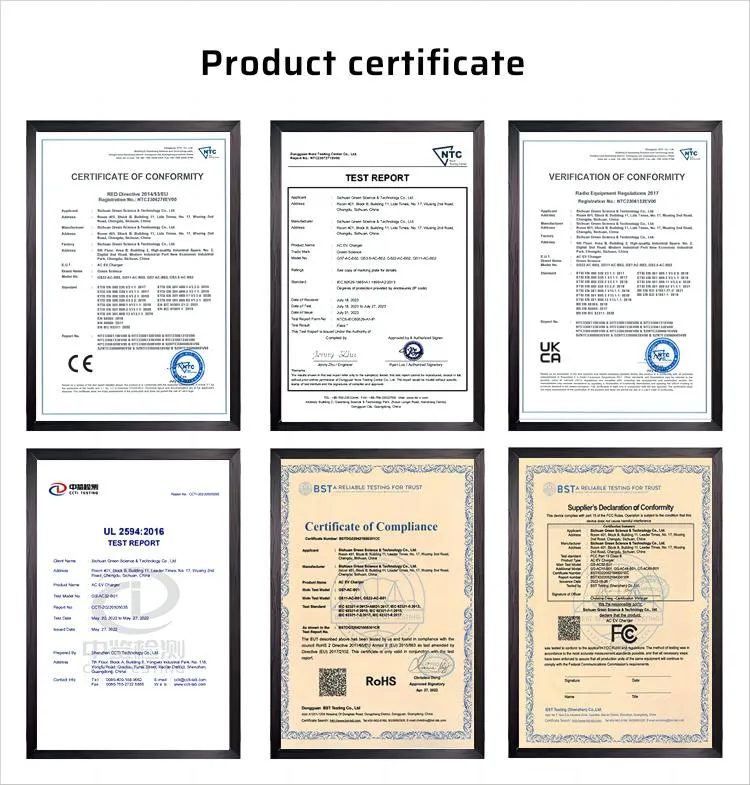

Certification

CE, ISO, RoHS

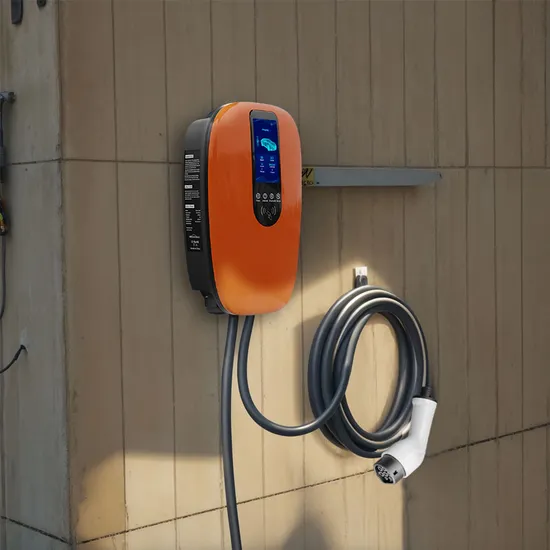

Color

Black, White, Orange, Optional

Warranty

12 Months

Ingress Protection

IP65

Impact Protection

Ik08

Supply Ability

10000/Sets Per Month

Transport Package

Carton Package

Specification

47*32*27

Trademark

GERUNSAISI

Origin

Sichuan China

HS Code

8504409999

Production Capacity

10000 Month

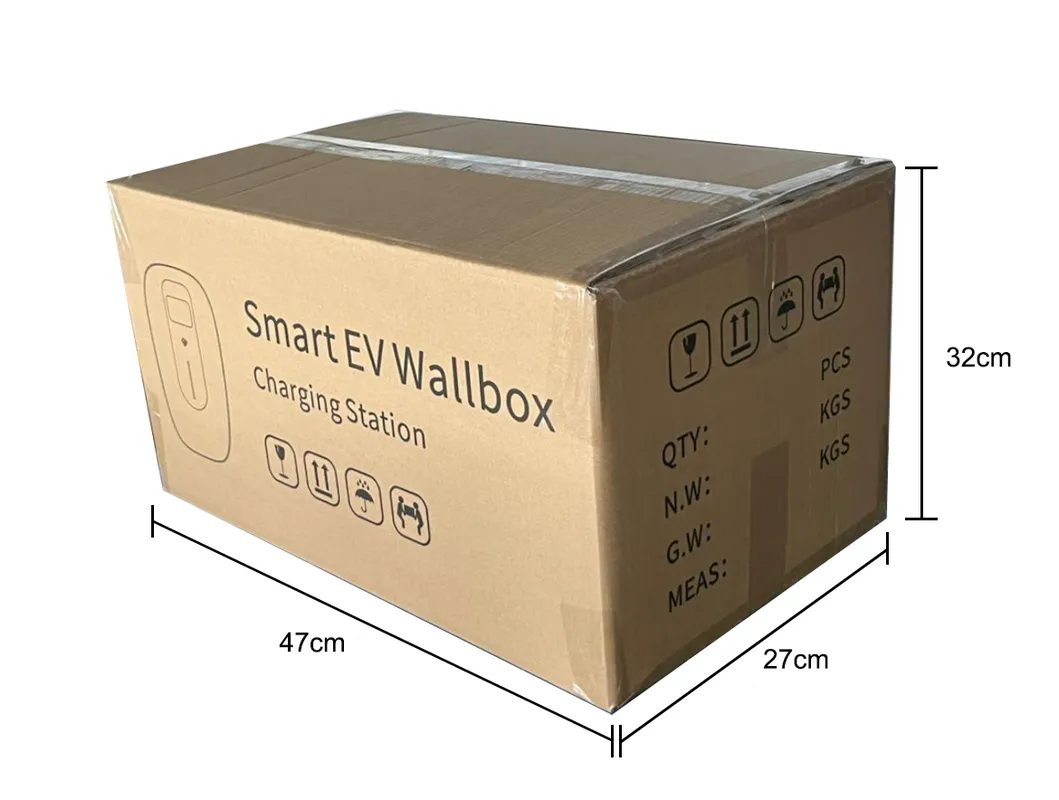

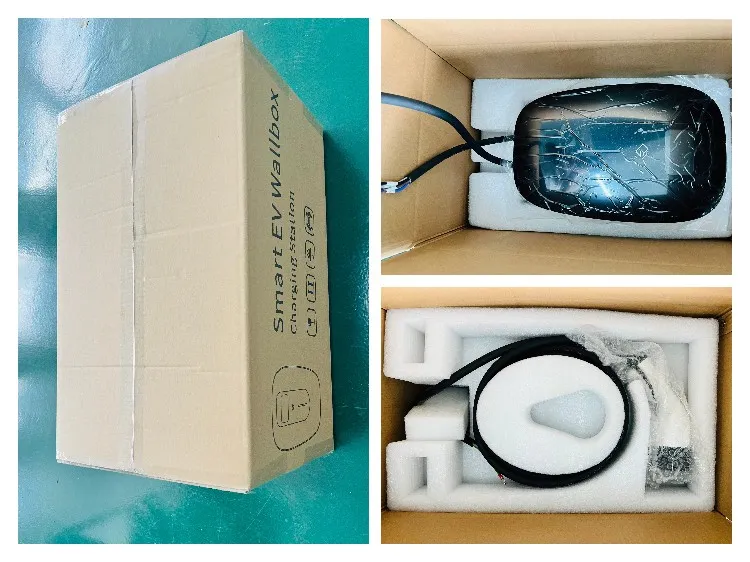

Packaging & Delivery

Package Size

47.00cm * 32.00cm * 29.00cm

Package Gross Weight

7.000kg

Product Description

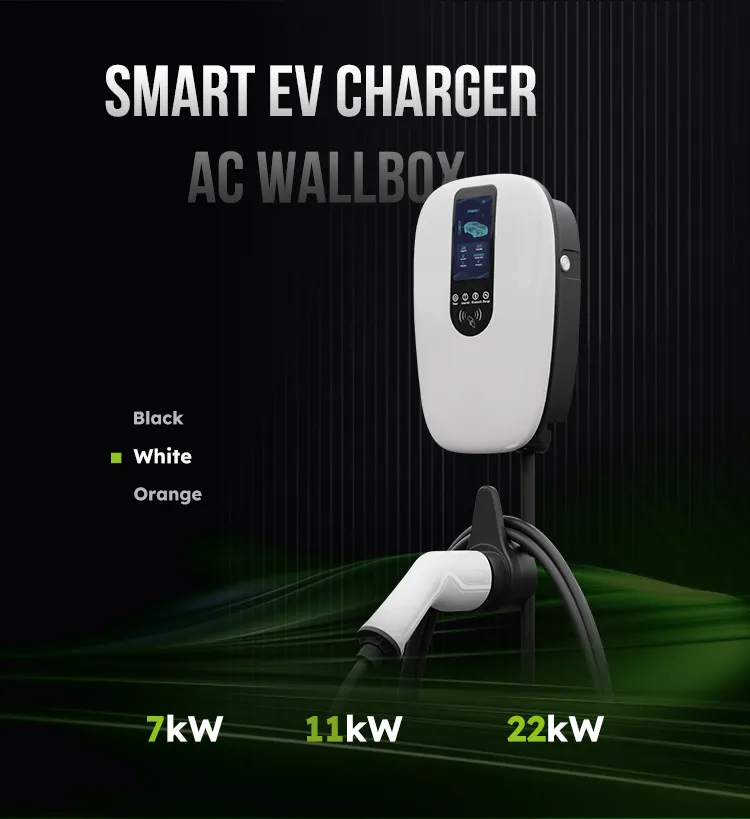

CE Smart Electric Vehicle Wallbox Car Charger Type/Gbt for Home Use

Data	Model	GS7-AC-B02	GS11-AC-B02	GS22-AC-B02
Input	Power Supply	1P+N+PE	3P+N+PE	3P+N+PE
	Rated Voltage	230V AC	400V AC	400V AC
	Rated Current	32A	16A	32A
Output	Output Voltage	230V AC	400V AC	400V AC
	Output Current	32A	16A	32A
	Rated Power	7KW	11KW	22KW
User Interface	Charging Port	Type 2
	Cable Length	5M/Customized
	LED Indicator	Power/OCPP/App/Charge

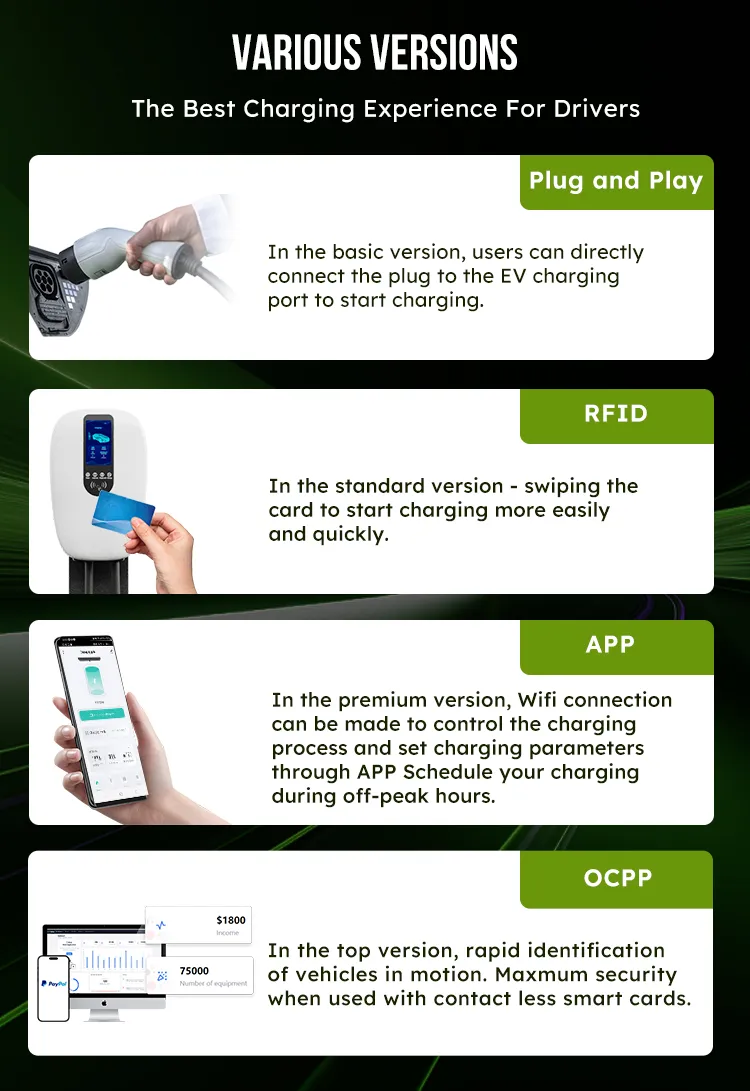

	Start Mode	Plug&Play / RFID Card / APP
	Emergency Stop	YES
Communication	WIFI	Optional
	3G/4G/5G	Optional
	OCPP	OCPP 1.6 Json (OCPP 2.0 Optional)
Package	Unit Size	320210120mm
	Package Size	470320270mm	470320270mm	470320270mm
	Net Weight	3.8KGS	3.9KGS	4.9KGS
	Gross Weight	5.6KGS	6.1KGS	7.2KGS

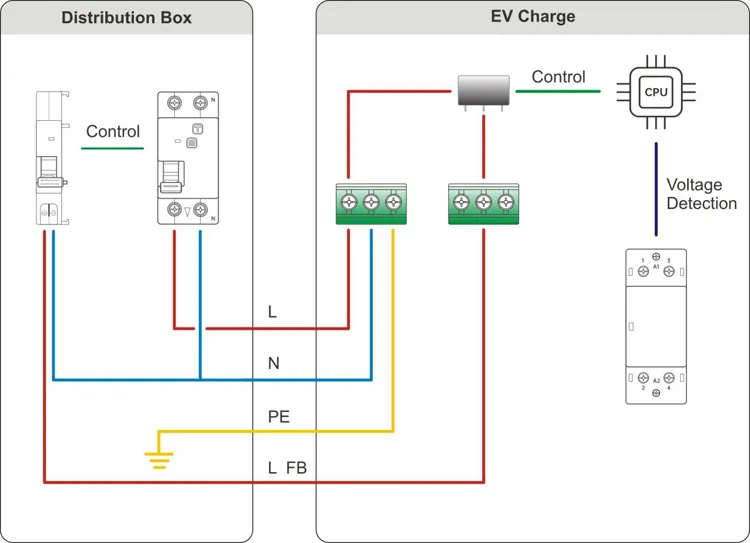

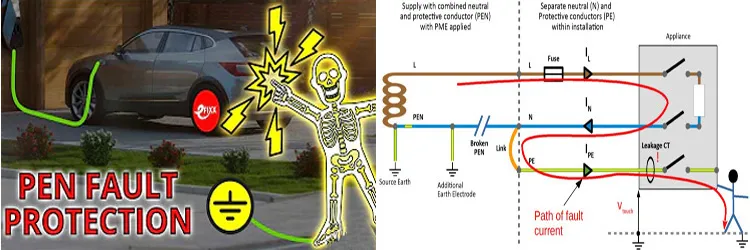

PEN Fault Detection

PEN

-An additional CT is installed in the PE conductor to detect any fault current-If the fault current reaches a predetermined
threshold, all conductors are switched off.
-The load and henceforth dangerous PE are become isolated from the supply.

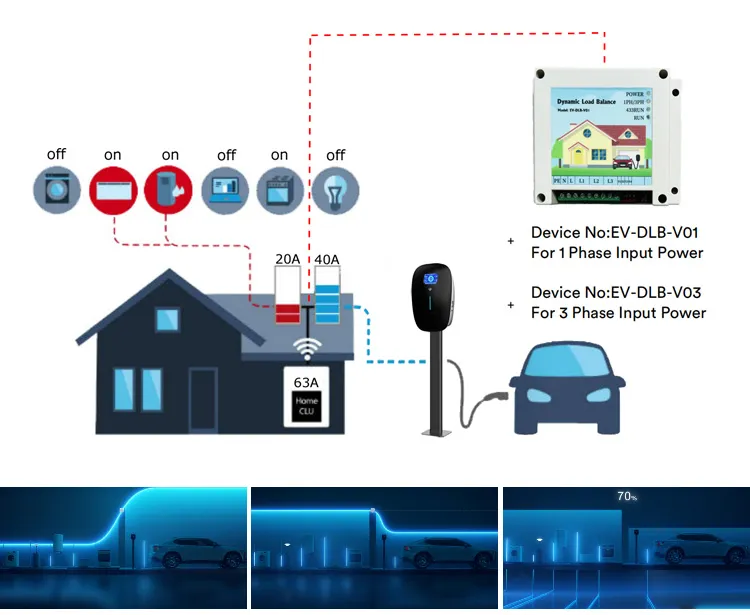

Dynamic Load Balance

DLB

For safely balance the energy usage between your electric car chargers and other home appliances to make your car
chargers in the most efficient way.

Balance: DLB allows you to use your available power wherever you need it, for regular consumption during the day and
for charging during the night.

Optimisation: The charge of the EV by automatically adapts to the maximum available power of the installation.
Speed: DLB technology allows the EV/PHEV to charge as fast as possible.

Safety: DLB technology protects the main fuse and ensures that your household appliances can access the electricity
when needed.You won't need to worry about safety or overloading your circuit board.
Economy: There is no need to invest in increased power supply for your home.
Please remember: The amount of power you get for charging depends on a few factors. The wall charger, charging lead and
EV all limit the quantity of Amps available.

CE Smart Electric Vehicle Wallbox Car Charger Type/Gbt for Home Use

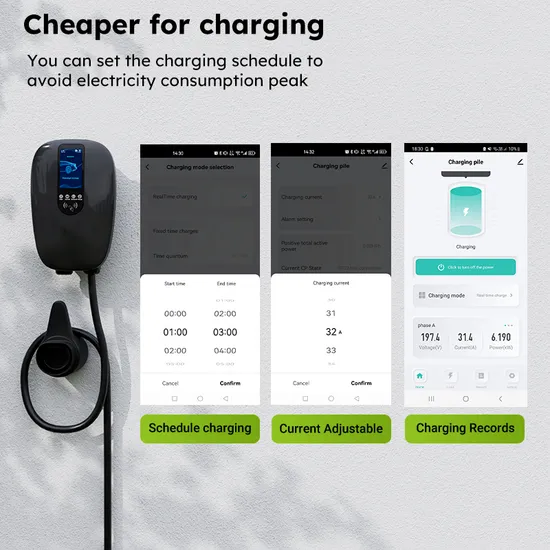

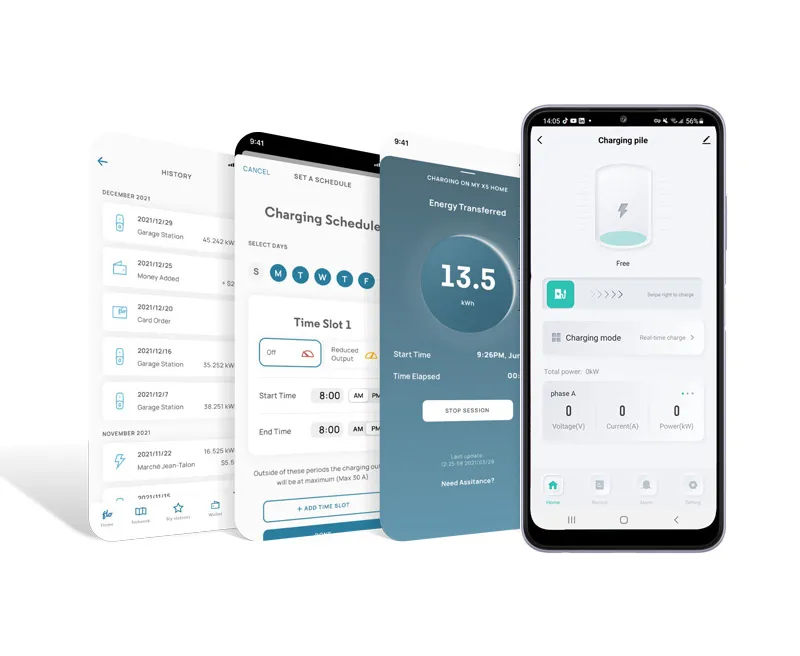

Use APP to track, manage, and optimize EV charging

Mobile App

1. Optimize your EV charge routine to complement your lifestyle & energy tariff.

2. Start, stop, schedule charging remotely.

3. Receive notifications when charging is completed.

4. Control your smart home charging unit via Charge App.

5. Track your EV battery health while charging.

6. APP name can be customized according to customer request.

MaxiCharge Charging

Management Software

With our one-stop SAAS(Software as a service) solution, you can manage your charging network easily, intelligently and
insight fully. Our charging management software lets you track and manage your charging network right from your
smartphone or computer.

CE Smart Electric Vehicle Wallbox Car Charger Type/Gbt for Home Use

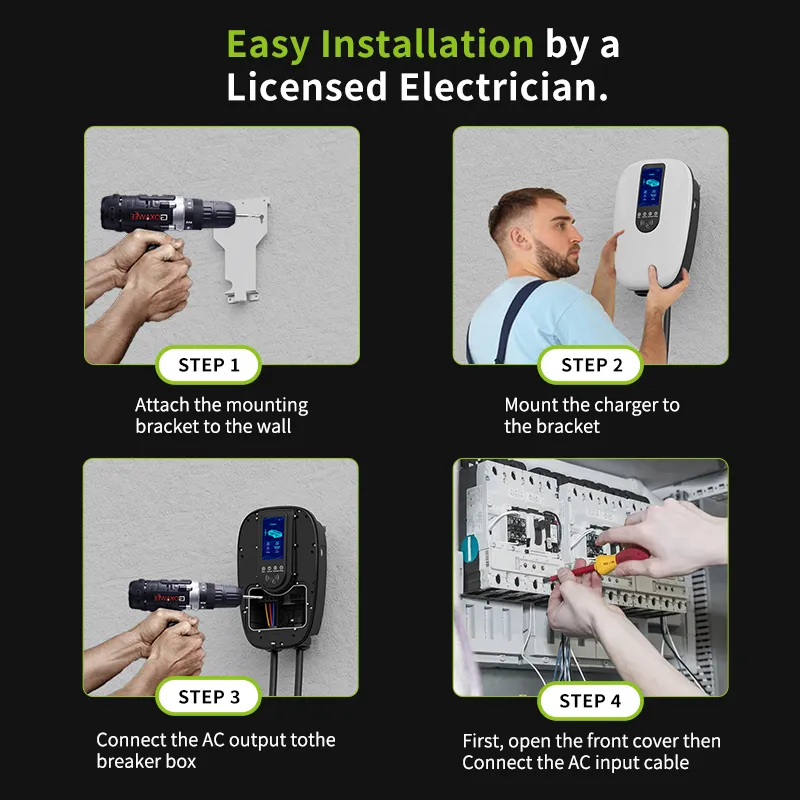

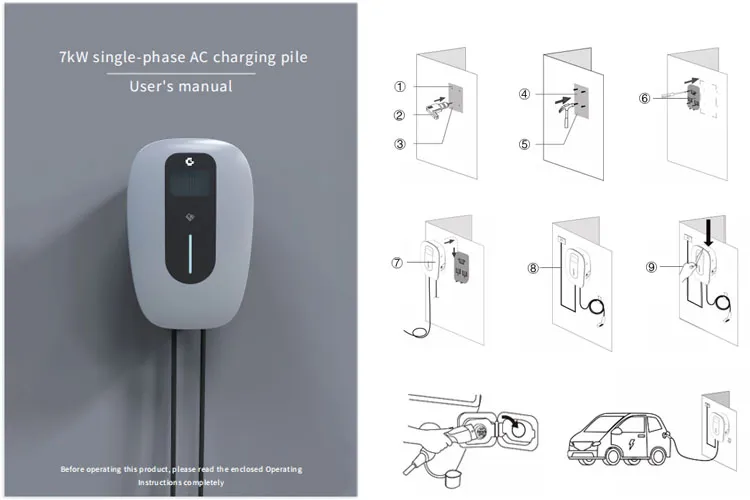

Steps Of Installation and Useage

Specification

Note:

1.After the vehicle is fully charged, the device will automatically stop charging

2.Please read the instructions carefully before use

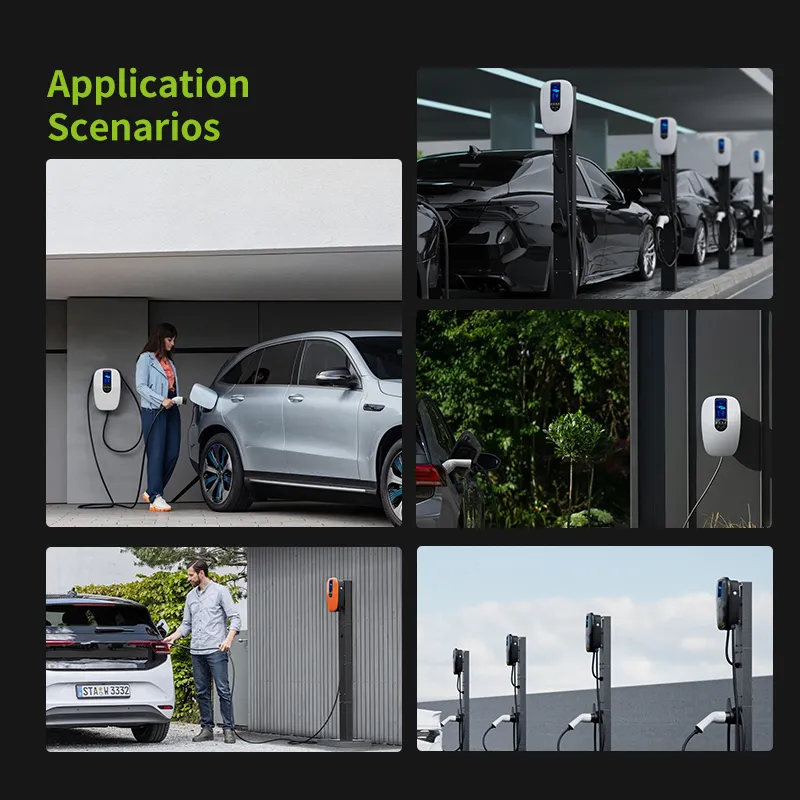

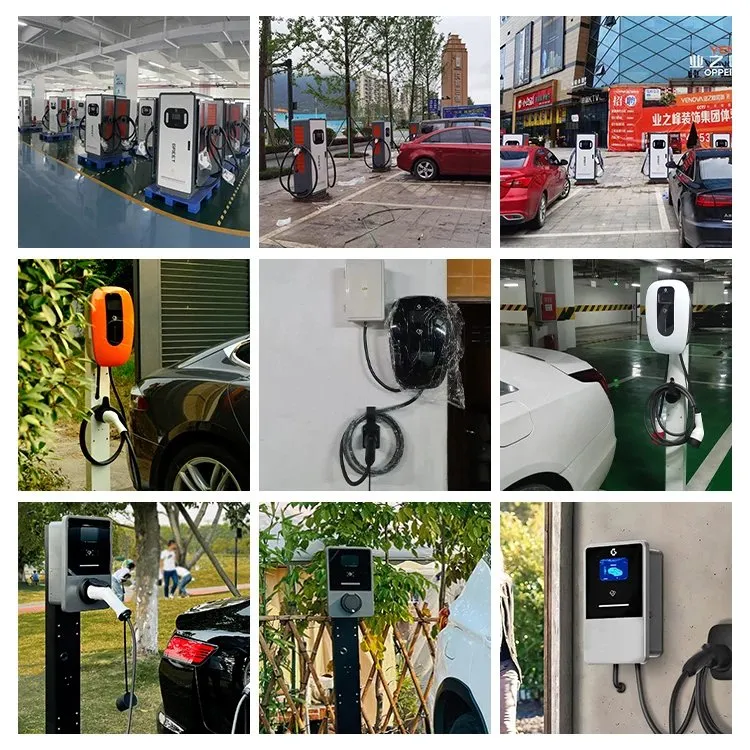

Charging Solution
Residential Workplaces Gas Station Apartments Commercial Park Charging Network

Sichuan Green Science & Technology Co. Ltd was founded in 2016, locates in Chengdu national Hi-tech development
zone. We dedicate in providing package technique and products solution for intelligent efficient and safe application of
energy resources, and for energy saving and emission reduction.

Through continuous technical innovation and marketing accumulation, Green Science has grown to be a professional
supplier for EV charging facility and solutions.
Our products cover portable charger, AC charger, DC charger, and software platform equipped with OCPP 1.6 protocol,
providing smart charging service for both hardware and software. We also can customize products by customer's sample
or design paper with competitive price in a short time. Any require about EV charger please feel free to contact us, hope
we will have a long-term mutual benefit relationship in near future.
CE Smart Electric Vehicle Wallbox Car Charger Type/Gbt for Home Use

Exhibition History
We have Participated in many EV charger exhibitions both at home and abroad. Our products were very popular with our
customers.
CE Smart Electric Vehicle Wallbox Car Charger Type/Gbt for Home Use

CE Smart Electric Vehicle Wallbox Car Charger Type/Gbt for Home Use

Express: For small quantity order or sample, shipping quickly but expensiveOcean Shipping: For big quantity order, a little
slowly but with competitive cost

CRexpress: China Rail Way Express, transport by train from China to Europe, price good and fast

1.Are you a trading company or a factory?
We are a high-tech enterprise with our own production plant, which integrates design,R&D, and manufacturing.

2.What is your lead time for customer order?
It usually takes 1-2 weeks to produce when it comes to a batch of non-customized models. It usually takes 4-6 weeks to produce when it comes to a batch of customized models.

3.What transportation methods are available?
We provide customers with express, air and sea services. Express includes FedEx, DHL, TNT, UPS, etc.

4.What is your delivery time?
Express: 3 - 7 days By air: 5 - 10 days By sea: 20 - 35 days, depending on different ports.

5. What payment terms?
We accept all methods of payment: PayPal, T/T, L/C etc, please contact us for more details.

6.Is OEM service available?
We provide a series of OEM customized services.

7.Is ODM service available?
We provide ODM services. Please refer to the relevant page for more details.

8.Can I customize products with special features?
We have complete technical reserves. We can meet all functional requirements raised by customers within a reasonable range.

9.How long is the product warranty time?
1 year warranty. Based on the requirements of policies and regulations in different regions, we can also provide customers with personalized solutions to extend the warranty time.
