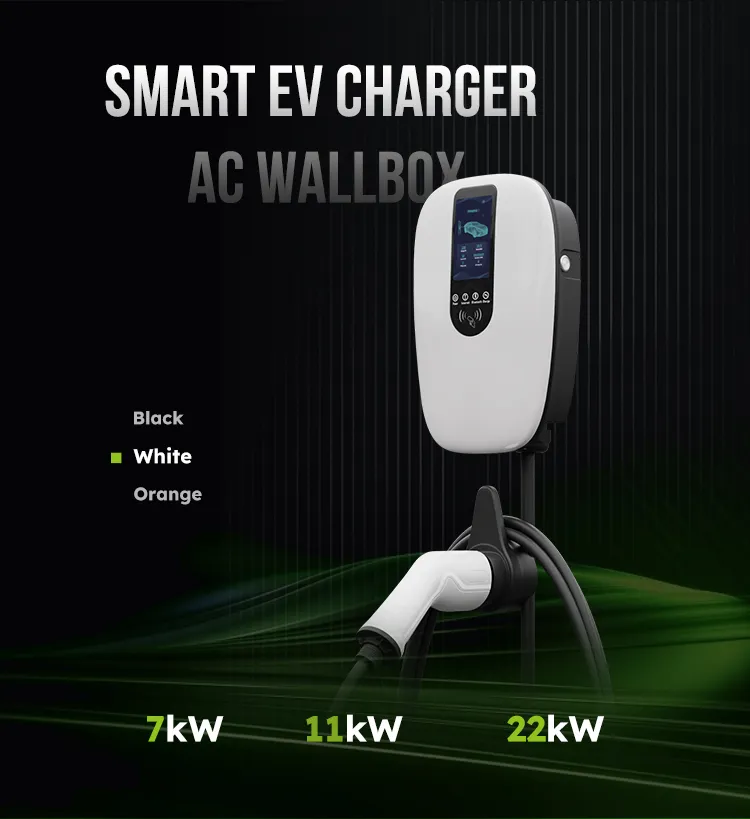

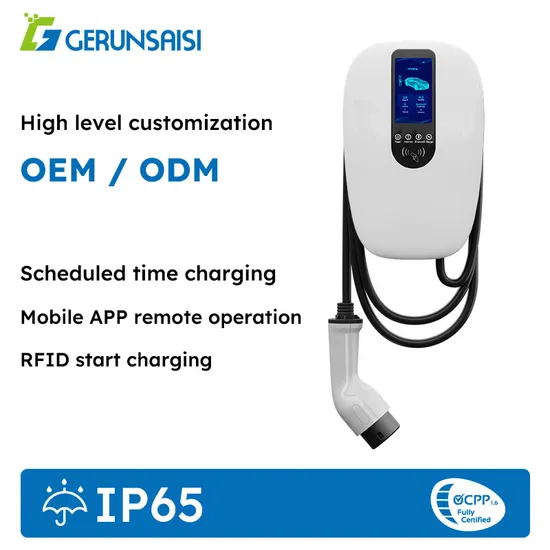

Type1/Type2/Gbt Smart EV Charger with RFID Card/WiFi/Bluetooth/APP

Customization:	Available
Connector Type:	Type 2
Start Mode:	APP Control, Book Charging, Remote Control, RFID Card

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

GS22-AC-B02

Location

Private Use

Installation

Wall Mounted

Charge Method

Quick Charge

Input Voltage

230V/380V

Input Current

16A/32A

Output Power

7kw/11kw/22kw

RCD

Type B(30mA)+6mA DC

Connector

Type2 Plug/Gbt Plug

Ingress Protection

IP65

Impact Protection

Ik10

Communication

RFID/APP/Bluetooth/4G/Ethernet

Ocpp

Ocpp 1.6 Json

Supply Ability

10000/Sets Per Month

Cable Length

5m/Customization

Color

Black/White/Orange/Customization

Product Dimension

320*210*120mm(L*W*H)

Gross Weight

6kg/8kg/10kg

Warranty

12 Months

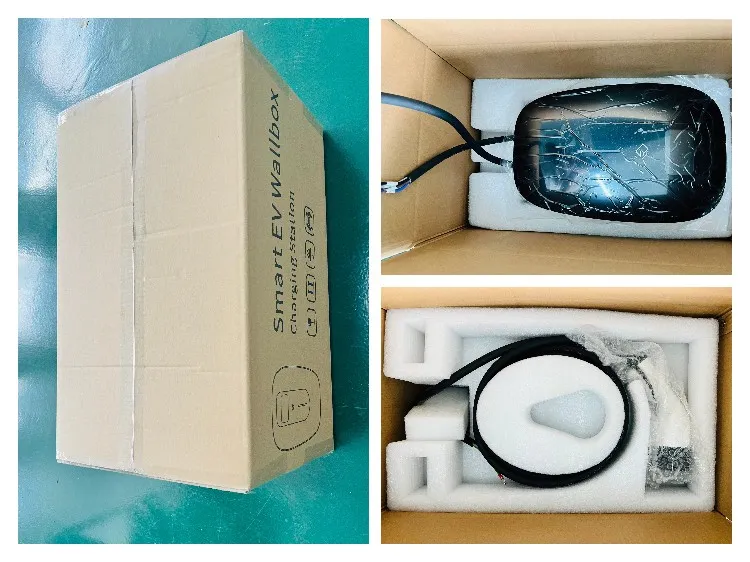

Transport Package

Carton

Specification

47cm*32cm*27cm

Trademark

GERUNSAISI

Origin

Sichuan, China

HS Code

8504409999

Production Capacity

10000/Month

Packaging & Delivery

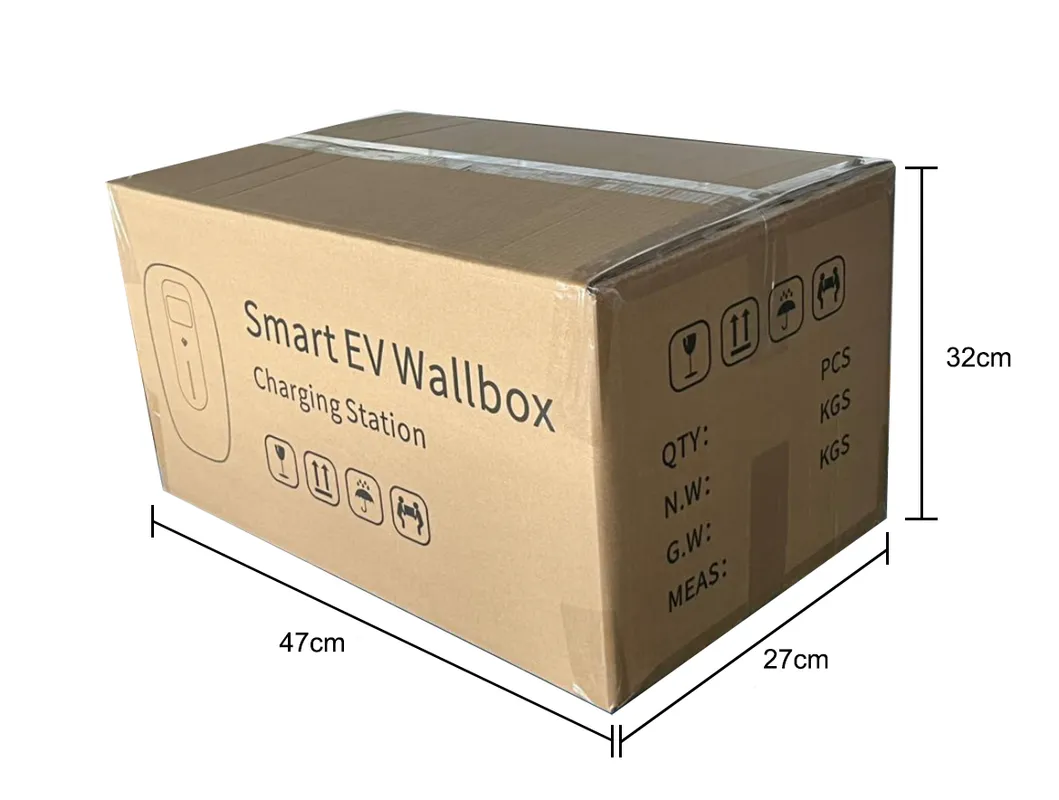

Package Size

47.00cm * 32.00cm * 27.00cm

Package Gross Weight

7.000kg

Product Description

Datasheet	Model	GS7-AC - B02	GGS11- AC -B02	GS22- AC - B02
Input	Power Supply	1P+N+PE	3P+N+PE	3P+N+PE
	Rated Voltage	230V AC	400V AC	400V AC
	Rated Current	32A	16A	32A
	Frequency	50/60HZ	50/60HZ	50/60HZ
Output	OutputVoltage	230V AC	400V AC	400V AC
	Output Current:	32A	16A	32A
	Rated Output Power	7kw	11kw	22kw
User Interface	Charging Port	Type 2 Cable/ GBT Cable
	Cable Length	5M/Customized
	Enclosure Plastic	PC940A+ASA

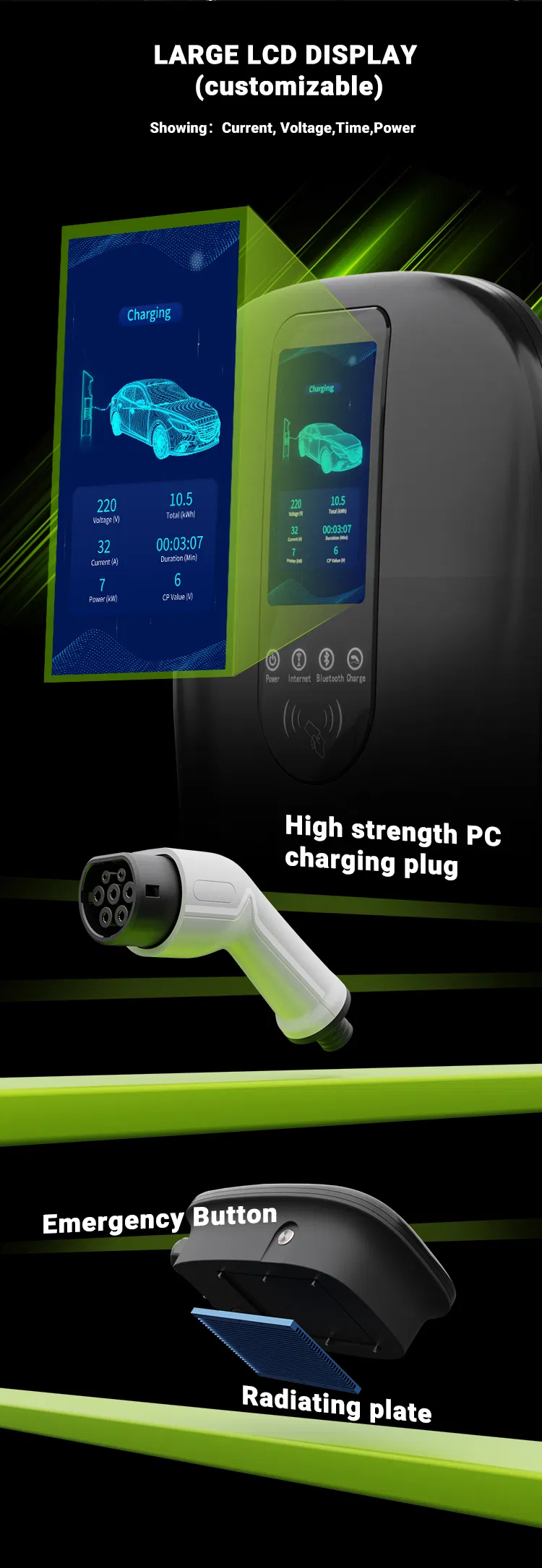

	LED Indicator	Power/OCPP/App/Charge
	RFID Reader	Mifare ISO/IEC 14443 A

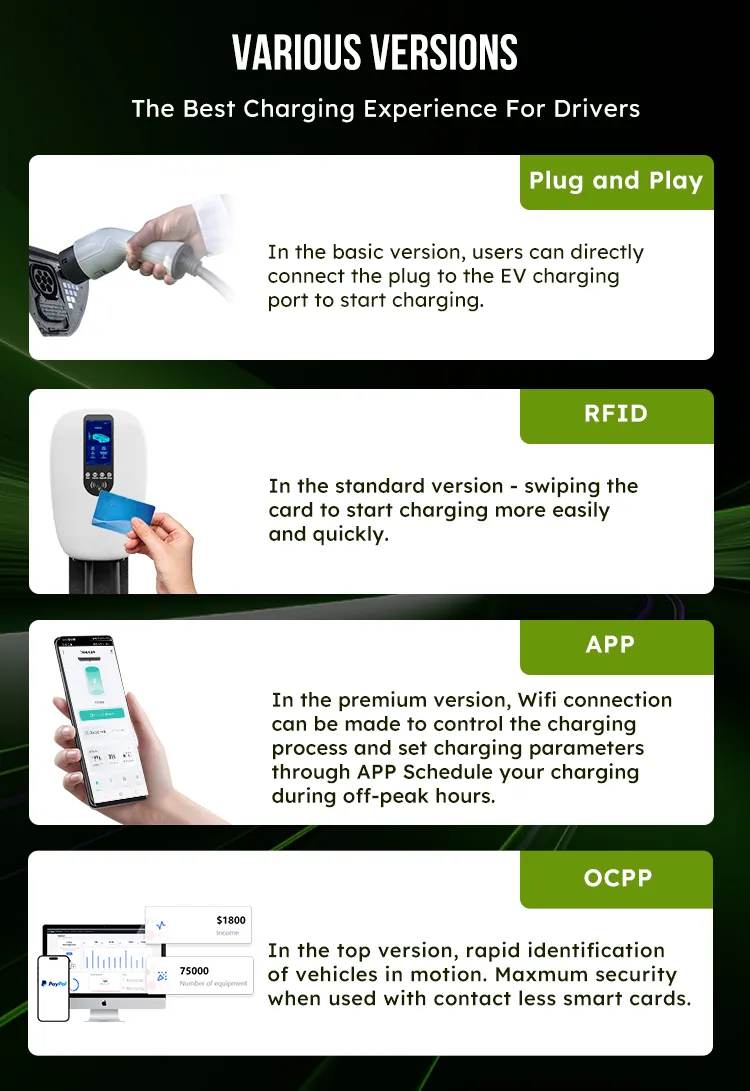

	Start Mode	Plug&Play /RFID card/App
	Emergency Stop	Yes
Communication	WiFi	Optional
	Bluetooth	Optional

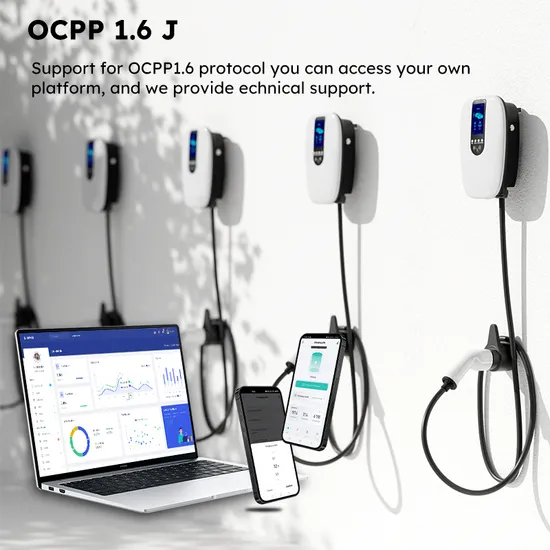

	OCPP	1.6 Json (OCPP 2.0 optional)
Safety	RCD	30mA Type B+6mA DC
	Ingress Protection	IP65
	Impact Protection	IK10

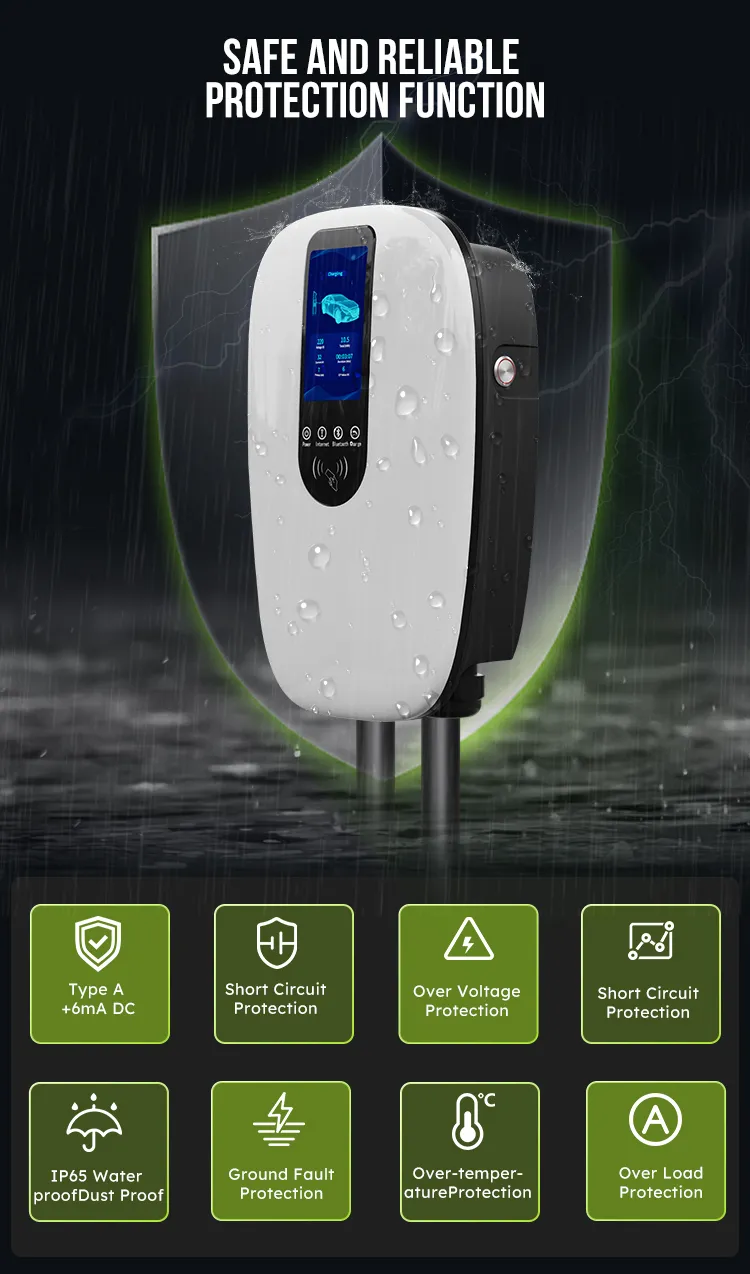

	Electrical Protection	Over current protection, Residual current protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection

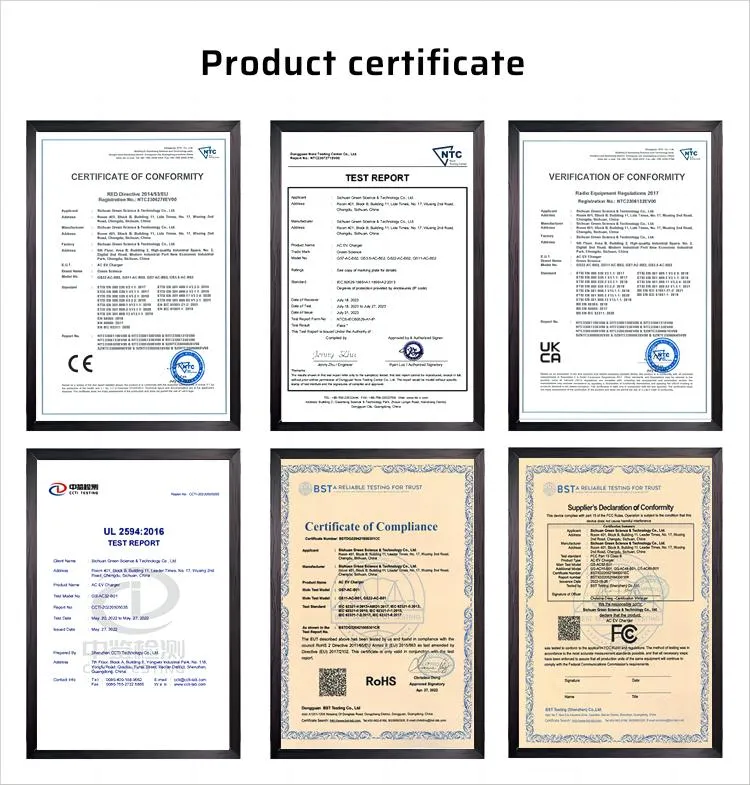

	Certifification	CE/ROHS/ISO/FCC
	Certifification Standard	EN/IEC 61851 - 1: 2017, EN/IEC 61851 - 21 - 2: 2018
	Warranty	1 Year

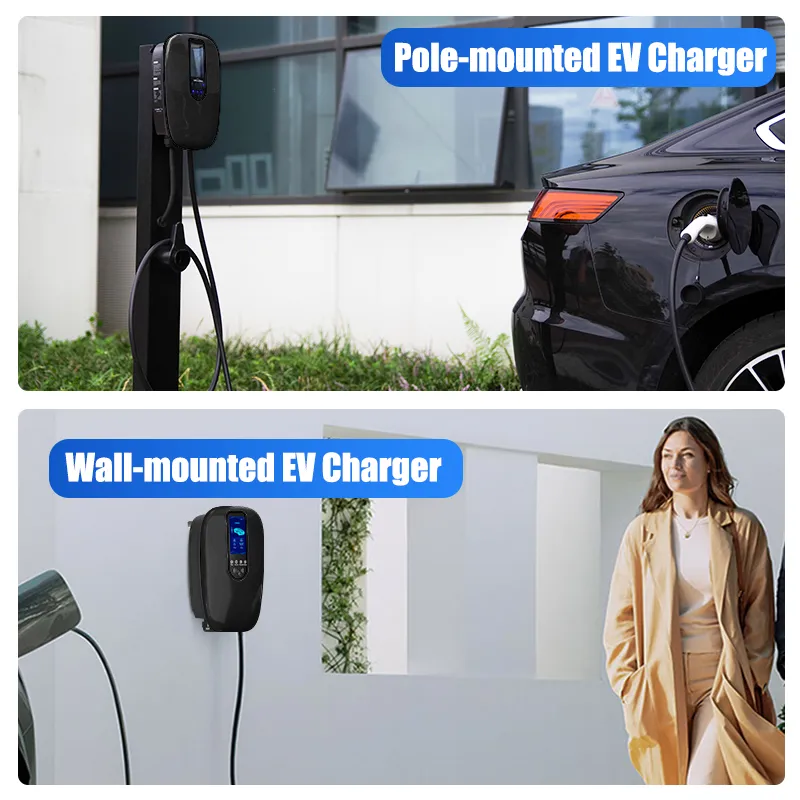

Environment	Installation	Wall-mount/Pole-mount
	Work Temperature	-25ºC~+50ºC
	Work Humidity	5%~95%
	Work Altitude	<2000M
Package	Product Dimension	340285147mm ( HWD )
	Package Dimension	480350210 LWH)
	Net Weight	5kg
	Gross Weight	7.5kg
	External Package	Carton

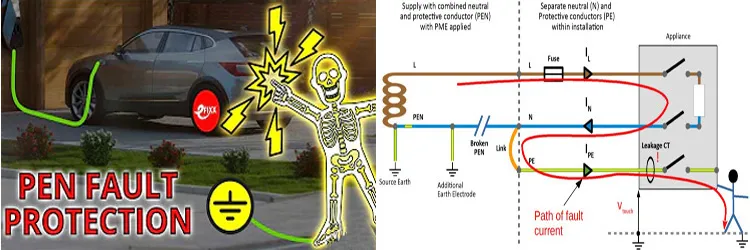

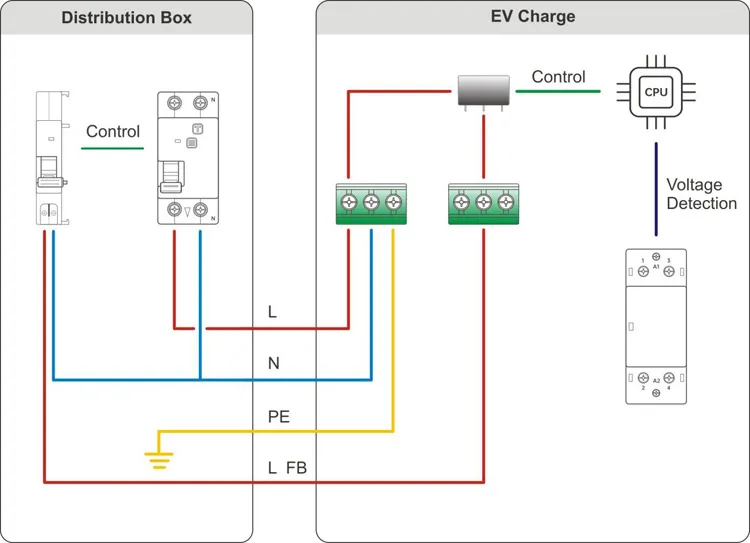

PEN Fault Detection

PEN

-An additional CT is installed in the PE conductor to detect any fault current-If the fault current reaches a predetermined
threshold, all conductors are switched off.
-The load and henceforth dangerous PE are become isolated from the supply.

Type1/Type2/Gbt Smart EV Charger with RFID Card/WiFi/Bluetooth/APP

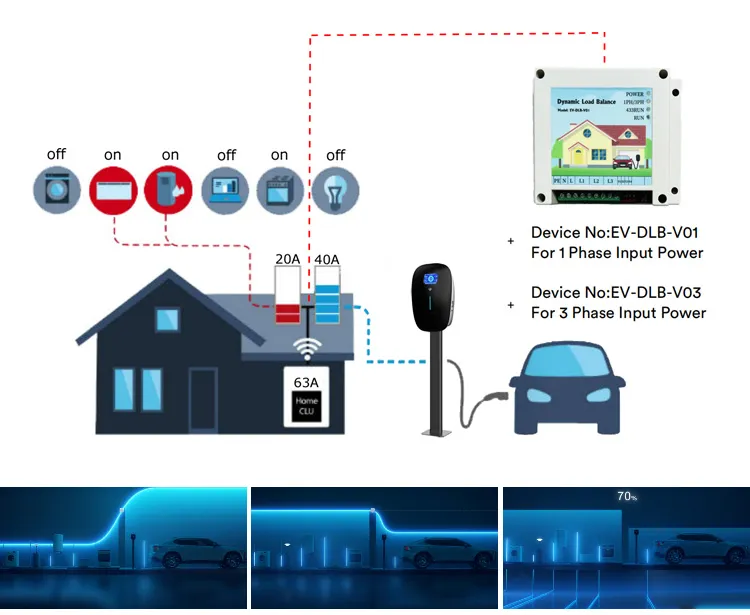

Dynamic Load Balance

DLB

For safely balance the energy usage between your electric car chargers and other home appliances to make your car
chargers in the most efficient way.

Balance: DLB allows you to use your available power wherever you need it, for regular consumption during the day and
for charging during the night.

Optimisation: The charge of the EV by automatically adapts to the maximum available power of the installation.
Speed: DLB technology allows the EV/PHEV to charge as fast as possible.

Safety: DLB technology protects the main fuse and ensures that your household appliances can access the electricity
when needed.You won't need to worry about safety or overloading your circuit board.
Economy: There is no need to invest in increased power supply for your home.
Please remember: The amount of power you get for charging depends on a few factors. The wall charger, charging lead and
EV all limit the quantity of Amps available.

Type1/Type2/Gbt Smart EV Charger with RFID Card/WiFi/Bluetooth/APP

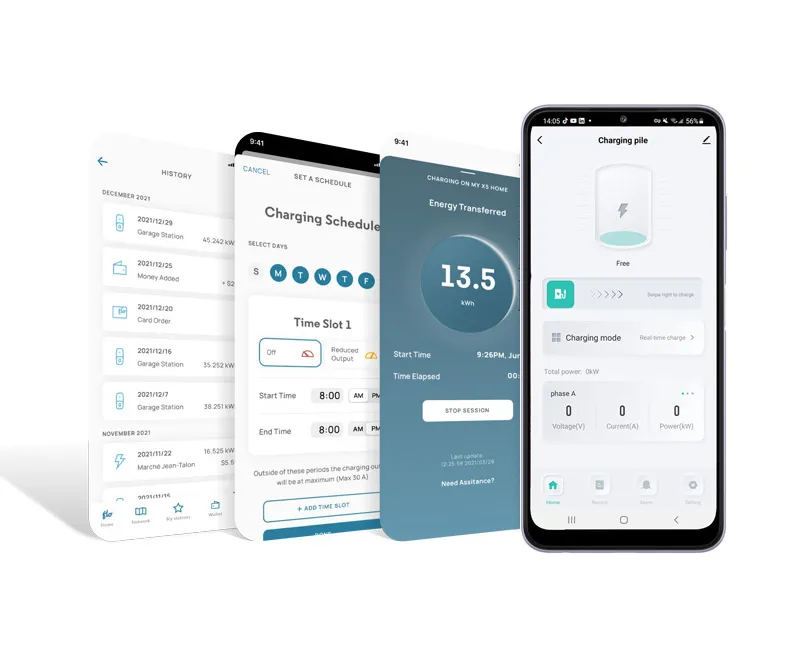

Use APP to track, manage, and optimize EV charging

Mobile App

1. Optimize your EV charge routine to complement your lifestyle & energy tariff.

2. Start, stop, schedule charging remotely.

3. Receive notifications when charging is completed.

4. Control your smart home charging unit via Charge App.

5. Track your EV battery health while charging.

6. APP name can be customized according to customer request.

MaxiCharge Charging

Management Software

With our one-stop SAAS(Software as a service) solution, you can manage your charging network easily, intelligently and
insight fully. Our charging management software lets you track and manage your charging network right from your
smartphone or computer.

Type1/Type2/Gbt Smart EV Charger with RFID Card/WiFi/Bluetooth/APP

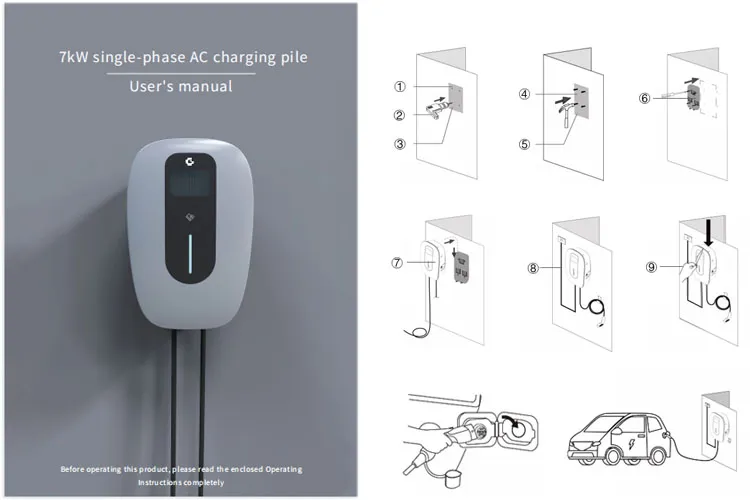

Steps Of Installation and Useage

Specification

Note:

1.After the vehicle is fully charged, the device will automatically stop charging

2.Please read the instructions carefully before use

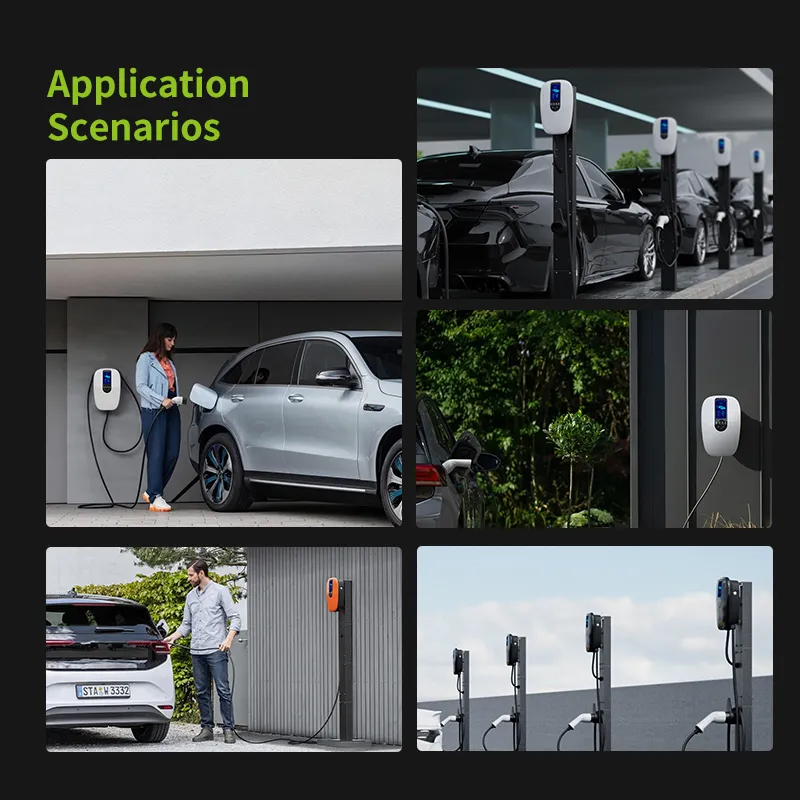

Charging Solution

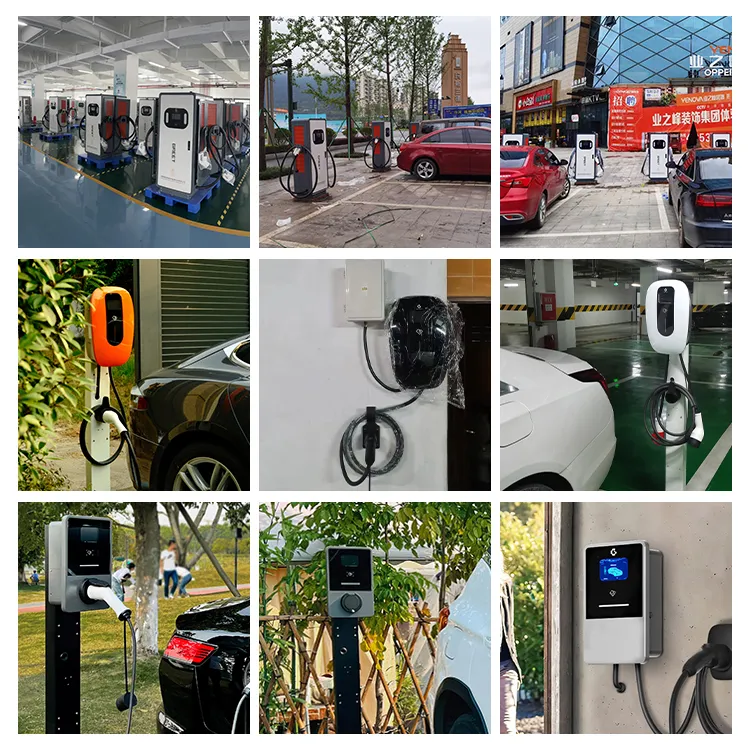

Residential Workplaces Gas Station Apartments Commercial Park Charging Network

Type1/Type2/Gbt Smart EV Charger with RFID Card/WiFi/Bluetooth/APP

Type1/Type2/Gbt Smart EV Charger with RFID Card/WiFi/Bluetooth/APP

Express: For small quantity order or sample, shipping quickly but expensiveOcean Shipping: For big quantity order, a little
slowly but with competitive cost

CRexpress: China Rail Way Express, transport by train from China to Europe, price good and fast

1.Are you a trading company or a factory? We are a high-tech enterprise with our own production plant, which integrates
design,R&D, and manufacturing.

2.What is your lead time for customer order? It usually takes 1-2 weeks to produce when it comes to a batch of
non-customized models. It usually takes 4-6 weeks to produce when it comes to a batch of customized models. 3.What
transportation methods are available? We provide customers with express, air and sea services. Express includes FedEx,
DHL, TNT,UPS, etc.

4.What is your delivery time? Express: 3 - 7 days By air: 5 - 10 days By sea: 20 - 35 days, depending on different
ports.

5. What payment terms? We accept all methods of payment: PayPal, T/T, L/C etc, please contact us for
more details. 6.Is OEM service available? We provide a series of OEM customized services.

7.Is ODM service available? We provide ODM services. Please refer to the relevant page for more details.

8.Can I customize products with special features? We have complete technical reserves. We can meet all functional
requirements raised by customers within a reasonable range.

9.How long is the product warranty time? 1 year warranty. Based on the requirements of policies and regulations in
different regions, we can also provide customers with personalized solutions to extend the warranty time.
