OEM Type1/Type2/Gbt EV Charger Wallbox Plug and Play Fast Charging with CE&RoHS

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Customization:Available
Number of Charging Interfaces:One Pile with One Charge
Location:Private Use
Quantity:
Overview

Basic Info.

Model NO.
GS22-AC-B02
Charge Method
Normal Charge
Product Name
Smart AC EV Charger
Power Supply
5 Wire - 3 Phase
Rated Voltage
400V AC
Frequency
50/60Hz
Output Voltage
220V AC
Output Current
32A
Rated Output Power
22kw
Charging Connector
Type 2 or GB/T
Cable Length
5m or Customized
Enclosure
PC 940A + ASA
Start Node
Plug&Play
Emergency Stop
Yes

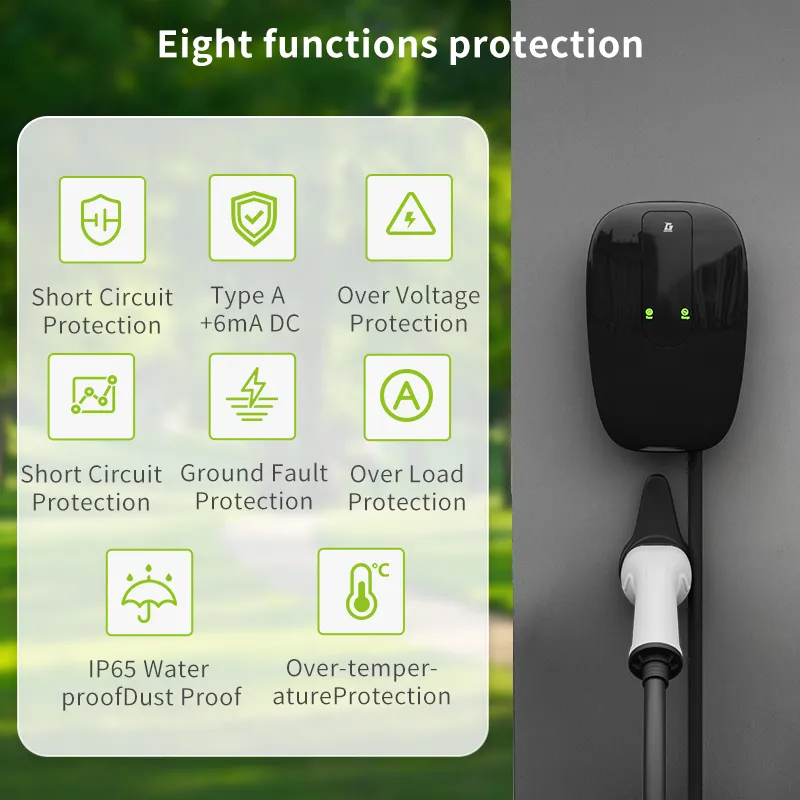

Protection
IP65 and Ik08
RCD
Type a + 6mA DC
Color
Black, White, Orange, Customized
Transport Package
1 PCS in One Carton
Specification
47cm*32cm*27cm
Trademark
GERUNSAISI
Origin
Sichuan, China
HS Code
8504409999
Production Capacity
10000/Month

Packaging & Delivery

Package Size
47.00cm * 32.00cm * 27.00cm
Package Gross Weight
6.000kg

Product Description


  • For Europe market, we've got CE, ROHS, NB, UKCA. REACH for 7kw, 11kw, 22kw wallbox ev charger.
  • For North America, we're getting FCC certification of 7kw, 10kw wallbox for whole charger.
  • Customize designs, languages, logos, colors available even for small quantity and small business.
  • 4.3 inch LED screen, Type B RCD leakage protection for ev chargers.
  • Manual available in different languages, English, Geman, Dutch, Italian, Spanish etc.
  • 1 year warranty, 2 years and 3 years warranty(optional).
  • Each EV charging station is with emergency stop button.
  • Independently designed, different from other existing models in the market.
  • Easy installation, maintaining and stable functioning.
  • Solid durable metal box and full size LCD screen.


Product Description



OEM Type1/Type2/Gbt EV Charger Wallbox Plug and Play Fast Charging with CE&RoHS OEM Type1/Type2/Gbt EV Charger Wallbox Plug and Play Fast Charging with CE&RoHS OEM Type1/Type2/Gbt EV Charger Wallbox Plug and Play Fast Charging with CE&RoHS OEM Type1/Type2/Gbt EV Charger Wallbox Plug and Play Fast Charging with CE&RoHS OEM Type1/Type2/Gbt EV Charger Wallbox Plug and Play Fast Charging with CE&RoHS OEM Type1/Type2/Gbt EV Charger Wallbox Plug and Play Fast Charging with CE&RoHS OEM Type1/Type2/Gbt EV Charger Wallbox Plug and Play Fast Charging with CE&RoHS

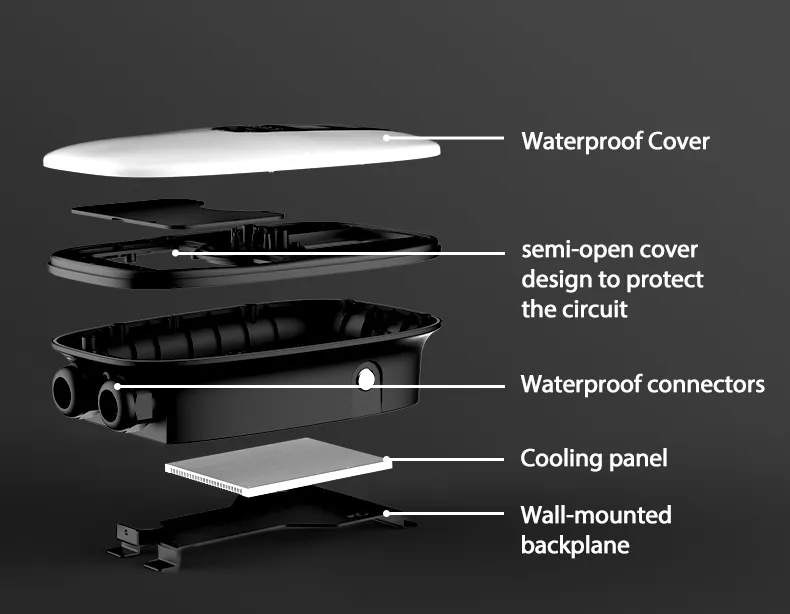

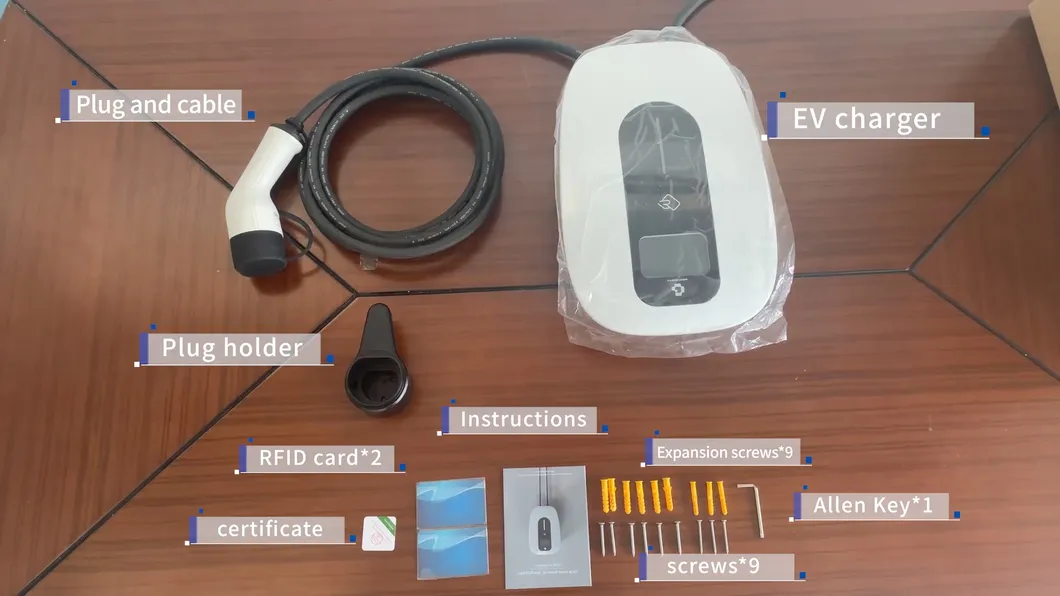

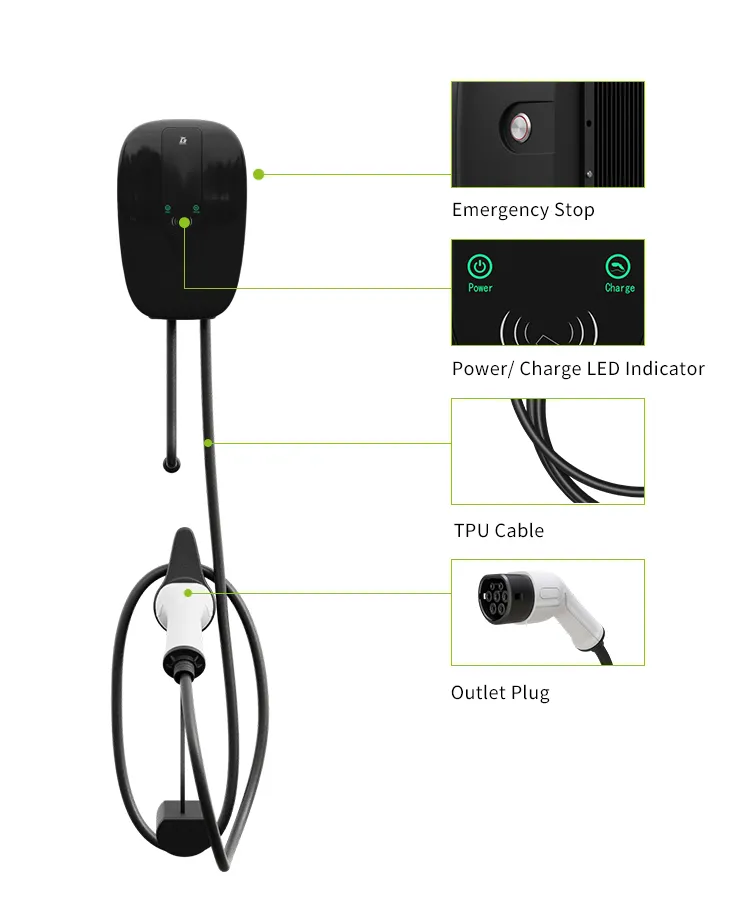

Detailed Photos

OEM Type1/Type2/Gbt EV Charger Wallbox Plug and Play Fast Charging with CE&RoHS

Product Parameters

Data
Model
GS7-AC-B02
GS11-AC-B02
GS22-AC-B02

Input
Power Supply
1P+N+PE
3P+N+PE
3P+N+PE
Rated Voltage
230V AC
400V AC
400V AC
Rated Current
32A
16A
32A

Output
Output Voltage
230V AC
400V AC
400V AC
Output Current
32A
16A
32A
Rated Power
7KW
11KW
22KW



User Interface
Charging Port
Type 2
Cable Length
5M/Customize
LED Indicator
YES
Start Mode
Plug&Play / RFID Card / APP
Emergency Stop
YES

Communication
WIFI
Optional
3G/4G/5G
Optional
OCPP
OCPP 1.6 Json (OCPP 2.0 Optional)
Package
Unit Size
320*210*120mm
Package Size
480*350*210mm
480*350*210mm
480*350*210mm
Net Weight
3.8KGS
3.9KGS
4.9KGS
Gross Weight
5.6KGS
6.1KGS
7.2KGS

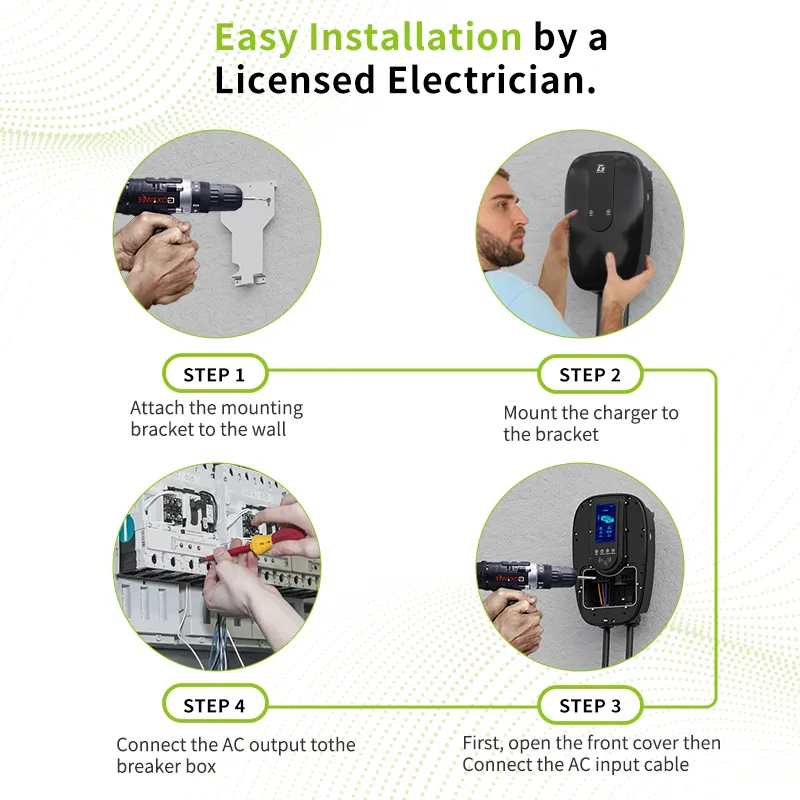

Installation Instructions

OEM Type1/Type2/Gbt EV Charger Wallbox Plug and Play Fast Charging with CE&RoHSOEM Type1/Type2/Gbt EV Charger Wallbox Plug and Play Fast Charging with CE&RoHS



Company Profile

OEM Type1/Type2/Gbt EV Charger Wallbox Plug and Play Fast Charging with CE&RoHSOEM Type1/Type2/Gbt EV Charger Wallbox Plug and Play Fast Charging with CE&RoHS

Certifications

OEM Type1/Type2/Gbt EV Charger Wallbox Plug and Play Fast Charging with CE&RoHS



OEM Type1/Type2/Gbt EV Charger Wallbox Plug and Play Fast Charging with CE&RoHS

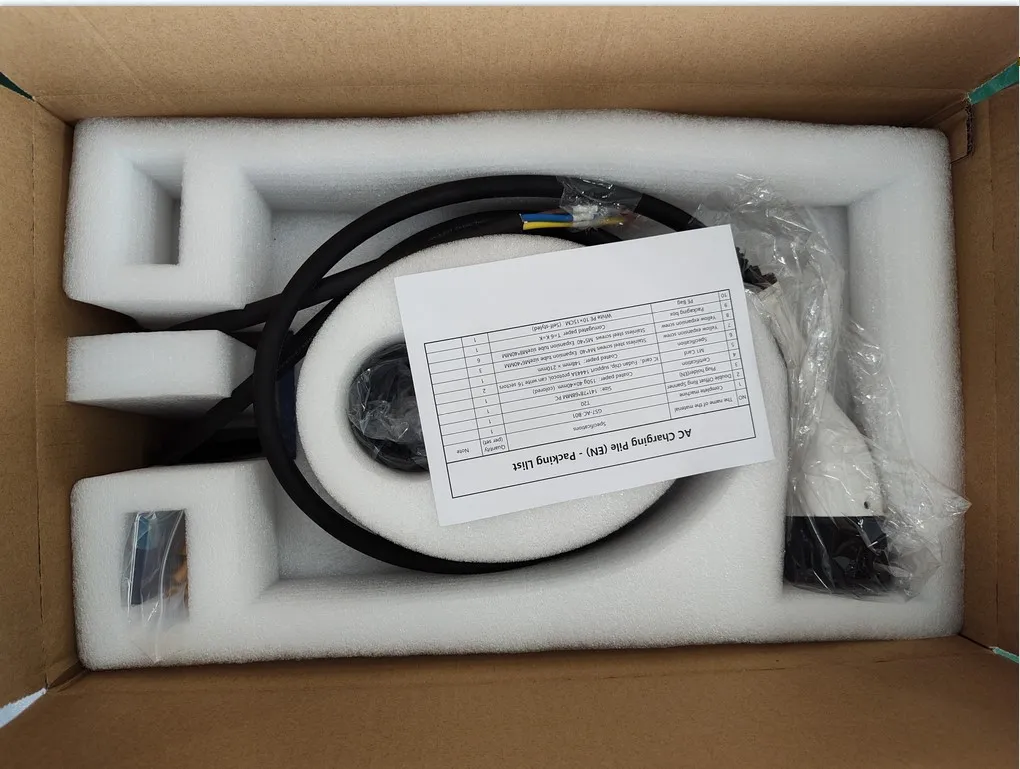

Packaging & Shipping

OEM Type1/Type2/Gbt EV Charger Wallbox Plug and Play Fast Charging with CE&RoHS

OEM Type1/Type2/Gbt EV Charger Wallbox Plug and Play Fast Charging with CE&RoHS
OEM Type1/Type2/Gbt EV Charger Wallbox Plug and Play Fast Charging with CE&RoHS
OEM Type1/Type2/Gbt EV Charger Wallbox Plug and Play Fast Charging with CE&RoHS
OEM Type1/Type2/Gbt EV Charger Wallbox Plug and Play Fast Charging with CE&RoHS



FAQ

Q1: What is your terms of packing of EV Charging point?
A: We pack our EV Charging Point in cartons.

Q2: What's the MOQ?
A: Most of our products are in stock,no MOQ.If you have customized requirements, please contact us. We will provide specific solutions for your requirements.

Q3: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q4: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q5: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. If you can't find the exact product you need in the picture, don't walk away. Welcome to contact us at any time or send us inquiry and we will reply you as soon as possible.
