Wallbox Smart EV Car Charger 7kw/11kw/2kw for Home Use with Pen Fault

Customization:	Available
Number of Charging Interfaces:	One Pile with One Charge
Location:	Private Use

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

GS7-AC-B02

Charge Method

Normal Charge

Input Voltage

230V/400V

Power Supply

1 Phase / 3 Phase

Output Power

7kw/11kw/22kw

Input Current

16A/32A

RCD

30mA Type a+6mA DC

Connector

Gbt/Type2 Plug

Ingress Protection

IP65

Impact Protection

Ik10

Communication

RFID Card/APP/WiFi+Bluetooth

Ocpp

Ocpp 1.6 Json (Ocpp 2.0 Optional)

Color

Black/White/Orange/Customized

Product Dimension

340*285*147mm(H*W*D)

Cable Length

5m/Customized

Emergency Stop

Yes

Supply Ability

10000/Sets Per Month

Transport Package

Carton Package

Specification

47*32*27

Trademark

GERUNSAISI

Origin

Sichuan China

HS Code

8537109090

Production Capacity

10000 Month

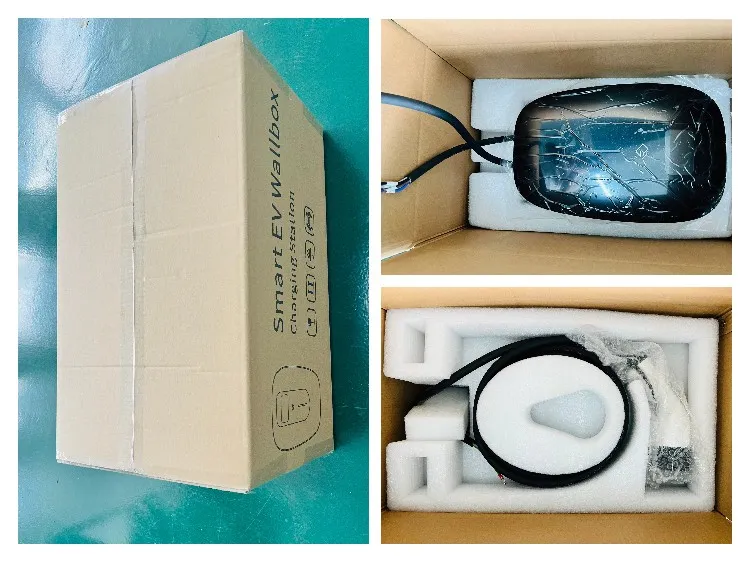

Packaging & Delivery

Package Size

47.00cm * 32.00cm * 27.00cm

Package Gross Weight

6.000kg

Product Description

Features:

1. For Europe market, we've got CE, ROHS, NB, UKCA. REACH for 7kw, 11kw, 22kw wallbox ev charger.

2. For North America, we're getting FCC certification of 7kw, 10kw wallbox for whole charger.

3. Customize designs, languages, logos, colors available even for small quantity and small business.

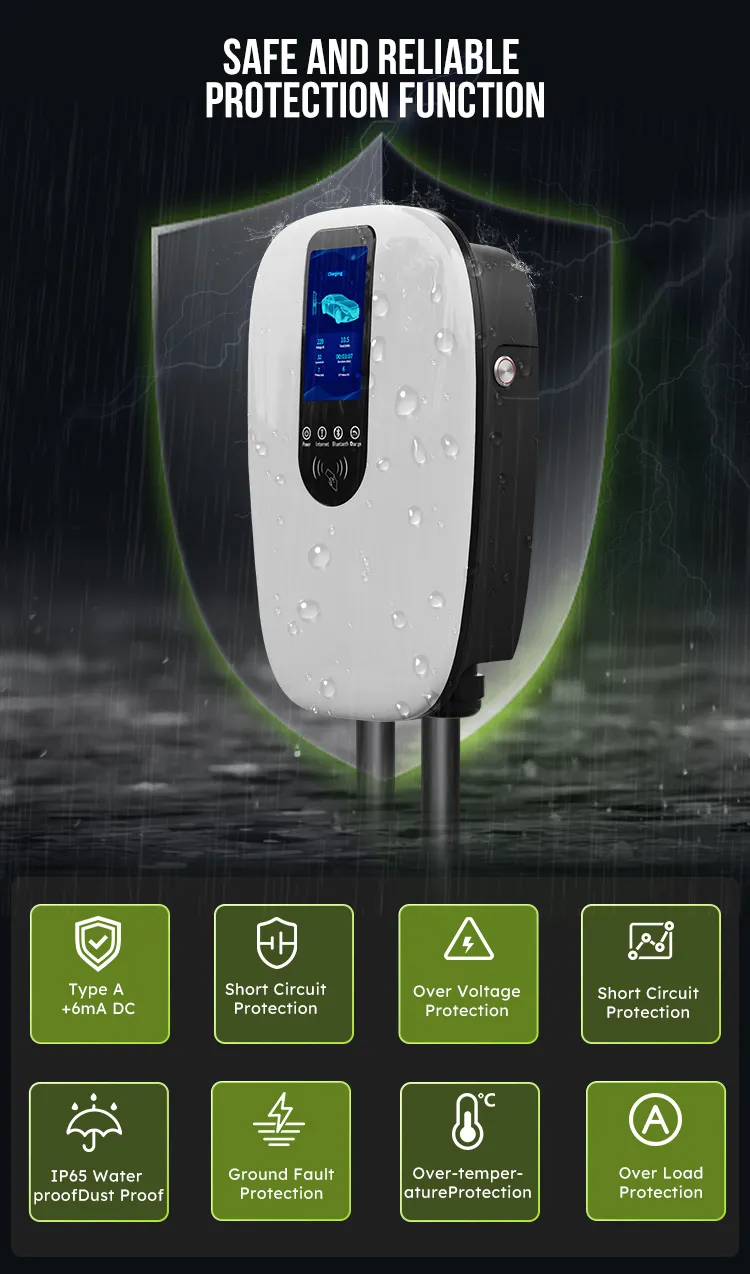

4. 4.3 inch LED screen, Type B RCD leakage protection for ev chargers.

5. Manual available in different languages, English, Geman, Dutch, Italian, Spanish etc.

6. 1 year warranty, 2 years and 3 years warranty(optional).
7. Each EV charging station is with emergency stop button.

8. Independently designed, different from other existing models in the market.

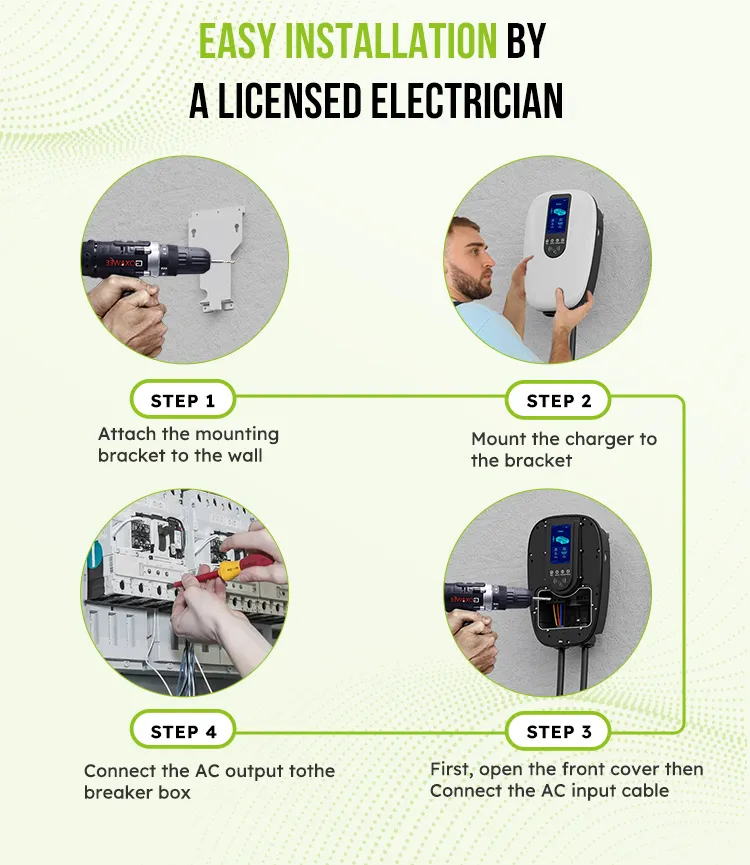

9. Easy installation, maintaining and stable functioning.

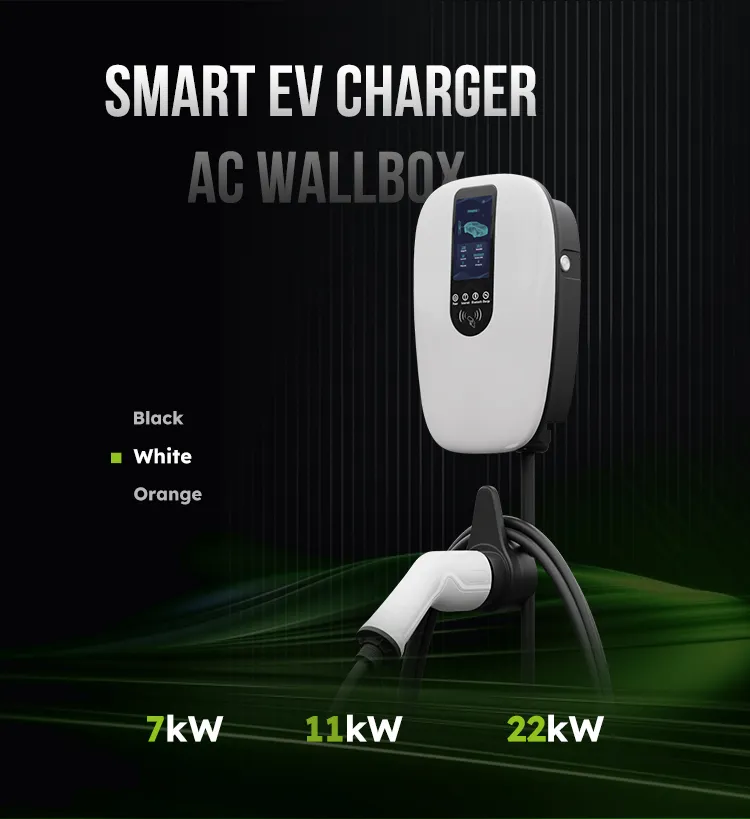

10. Solid durable metal box and full size LCD screen Wallbox Smart EV Car Charger 7kw/11kw/2kw for Home Use with Pen Fault

Data	Model	GS7-AC-B02	GS11-AC-B02	GS22-AC-B02
Input	Power Supply	1P+N+PE	3P+N+PE	3P+N+PE
	Rated Voltage	230V AC	400V AC	400V AC
	Rated Current	32A	16A	32A
Output	Output Voltage	230V AC	400V AC	400V AC
	Output Current	32A	16A	32A
	Rated Power	7KW	11KW	22KW
User Interface	Charging Port	Type 2
	Cable Length	5M/Customized
	LED Indicator	Power/OCPP/App/Charge
	Start Mode	Plug&Play / RFID Card / APP
	Emergency Stop	YES
Communication	WIFI	Optional
	3G/4G/5G	Optional
	OCPP	OCPP 1.6 Json (OCPP 2.0 Optional)
Package	Unit Size	320210120mm
	Package Size	470320270mm	470320270mm	470320270mm
	Net Weight	3.8KGS	3.9KGS	4.9KGS
	Gross Weight	5.6KGS	6.1KGS	7.2KGS

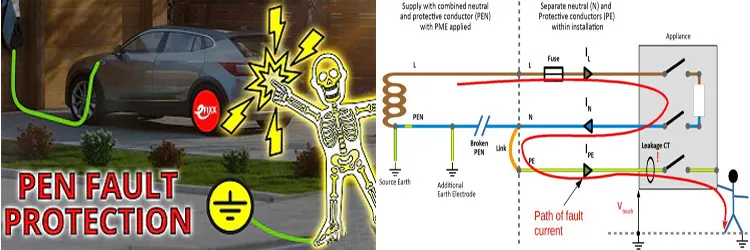

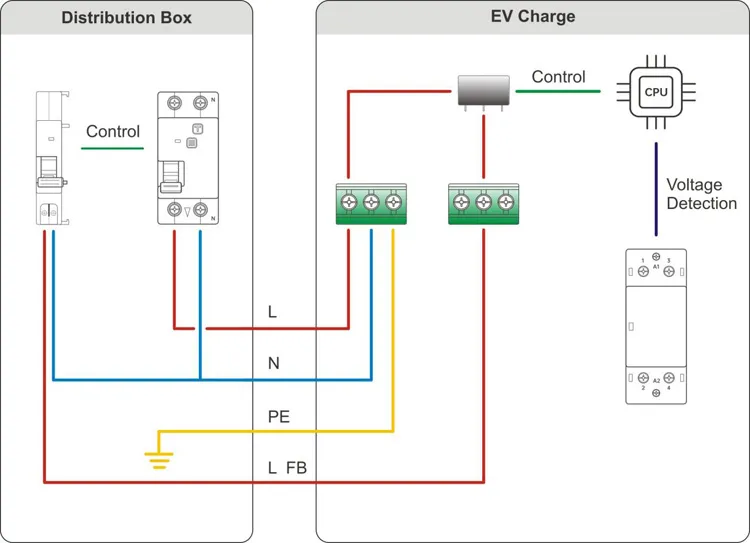

PEN Fault Detection

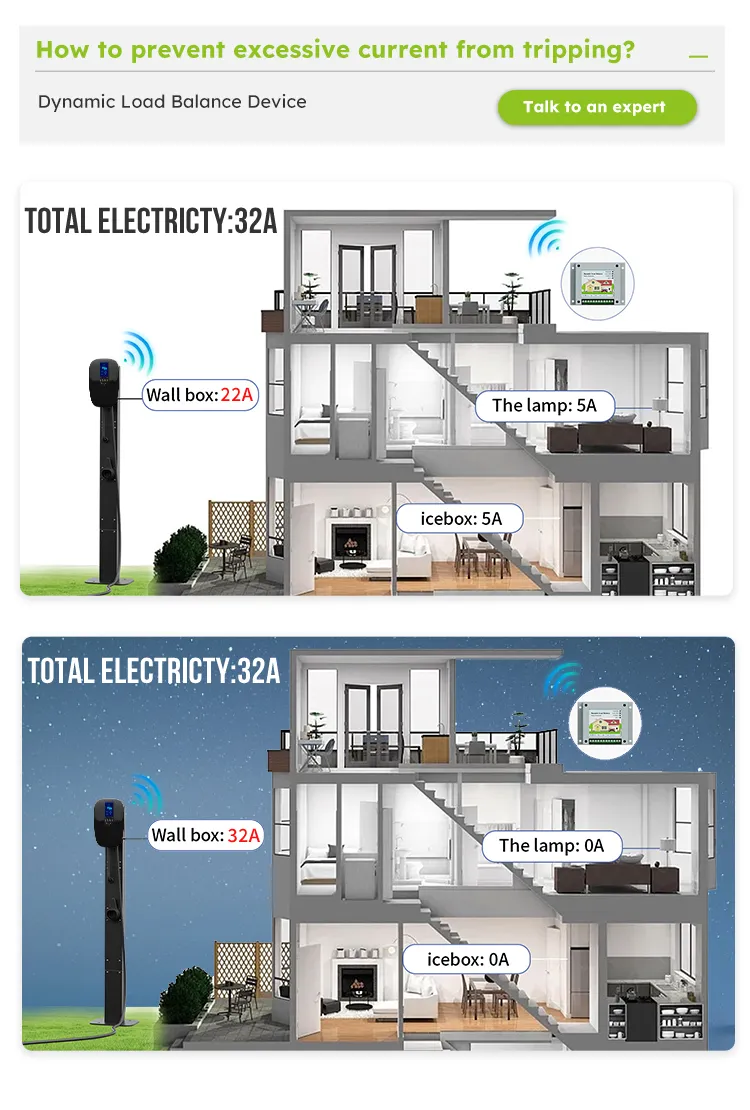

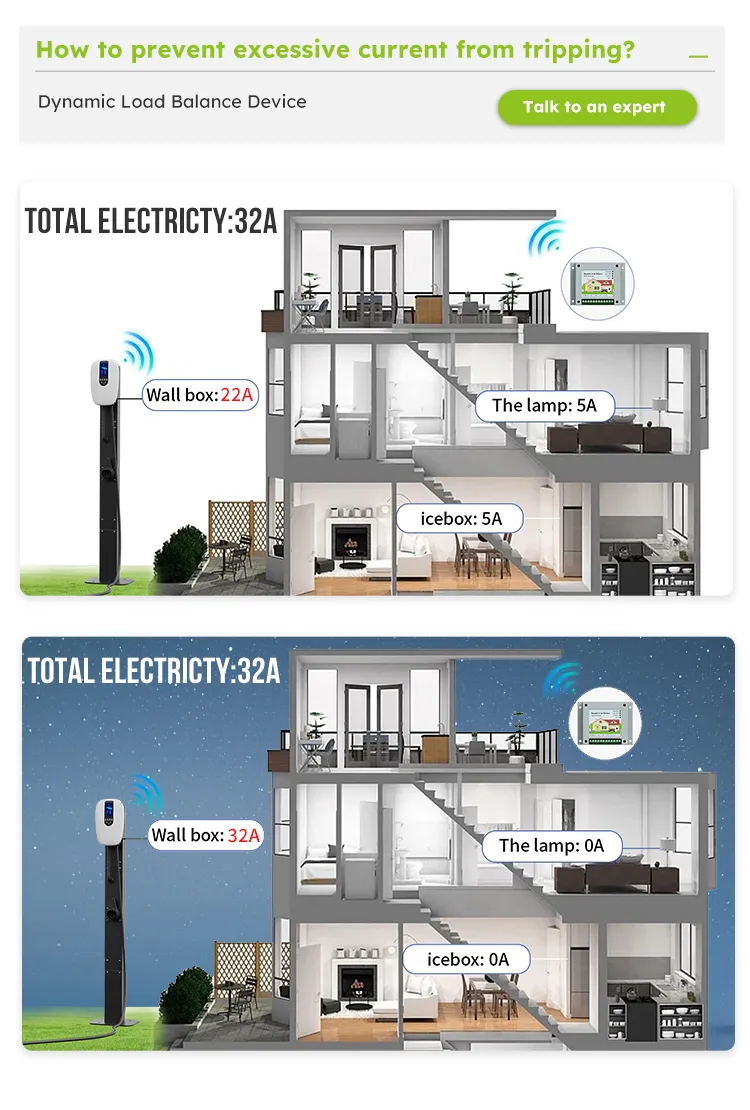

Dynamic Load Balance

DLB

For safely balance the energy usage between your electric car chargers and other home appliances to make your car
chargers in the most efficient way.

Balance: DLB allows you to use your available power wherever you need it, for regular consumption during the day and
for charging during the night.

Optimisation: The charge of the EV by automatically adapts to the maximum available power of the installation.
Speed: DLB technology allows the EV/PHEV to charge as fast as possible.

Safety: DLB technology protects the main fuse and ensures that your household appliances can access the electricity
when needed.You won't need to worry about safety or overloading your circuit board.
Economy: There is no need to invest in increased power supply for your home.
Please remember: The amount of power you get for charging depends on a few factors. The wall charger, charging lead and
EV all limit the quantity of Amps available.

Wallbox Smart EV Car Charger 7kw/11kw/2kw for Home Use with Pen Fault

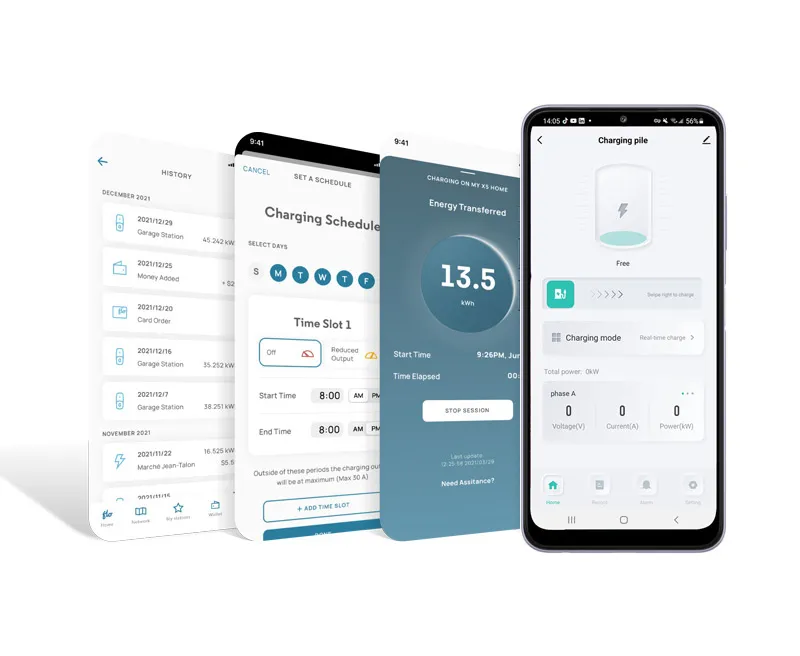

Mobile App
Wallbox Smart EV Car Charger 7kw/11kw/2kw for Home Use with Pen Fault

Wallbox Smart EV Car Charger 7kw/11kw/2kw for Home Use with Pen Fault

Questions and Answers:

1.Are you a trading company or a factory? We are a high-tech enterprise with our own production plant, which integrates
design,R&D, and manufacturing.

2.What is your lead time for customer order? It usually takes 1-2 weeks to produce when it comes to a batch of
non-customized models. It usually takes 4-6 weeks to produce when it comes to a batch of customized models. 3.What
transportation methods are available? We provide customers with express, air and sea services. Express includes FedEx,
DHL, TNT,UPS, etc.

4.What is your delivery time? Express: 3 - 7 days By air: 5 - 10 days By sea: 20 - 35 days, depending on different
ports.

5. What payment terms? We accept all methods of payment: PayPal, T/T, Alibaba assurance, L/C etc, please contact us for
more details. 6.Is OEM service available? We provide a series of OEM customized services.

7.Is ODM service available? We provide ODM services. Please refer to the relevant page for more details.

8.Can I customize products with special features? We have complete technical reserves. We can meet all functional
requirements raised by customers within a reasonable range.

9.How long is the product warranty time? 1 year warranty. Based on the requirements of policies and regulations in
different regions, we can also provide customers with personalized solutions to extend the warranty time.
