Customization:Available

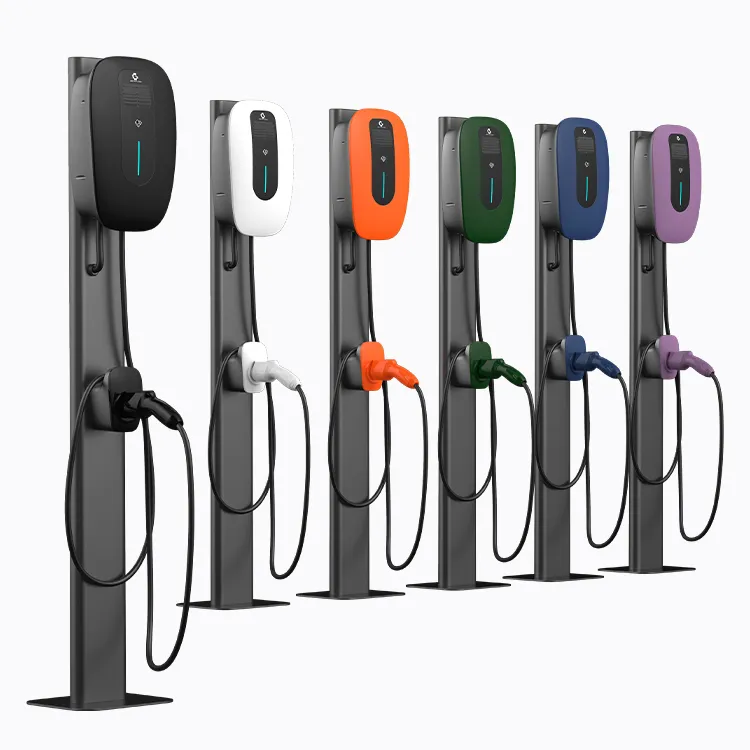

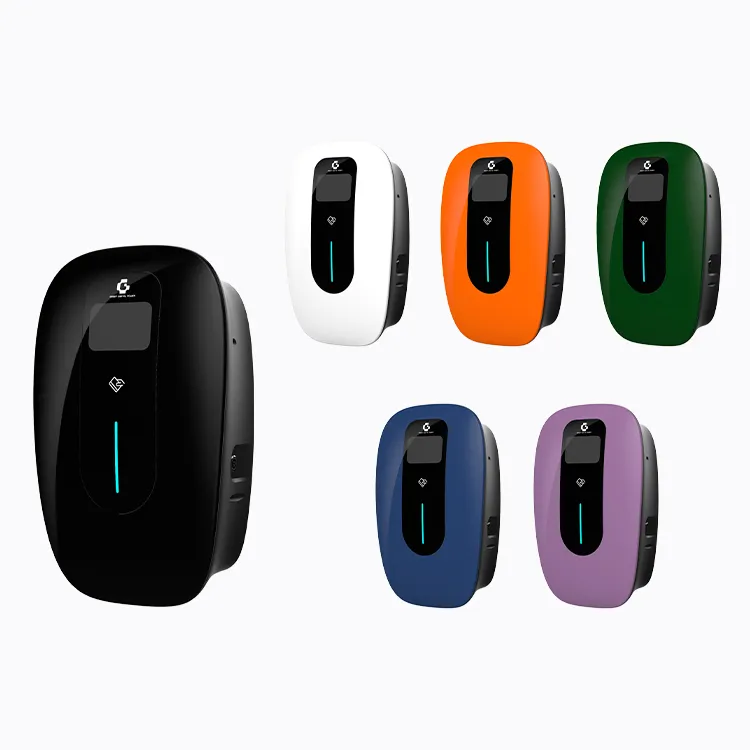

Color:Black White Orange Optional
Cable Length:3.5meters/ Customized
Quantity:
Inquire Add to Basket

Basic Info.

Voltage
380V
Function

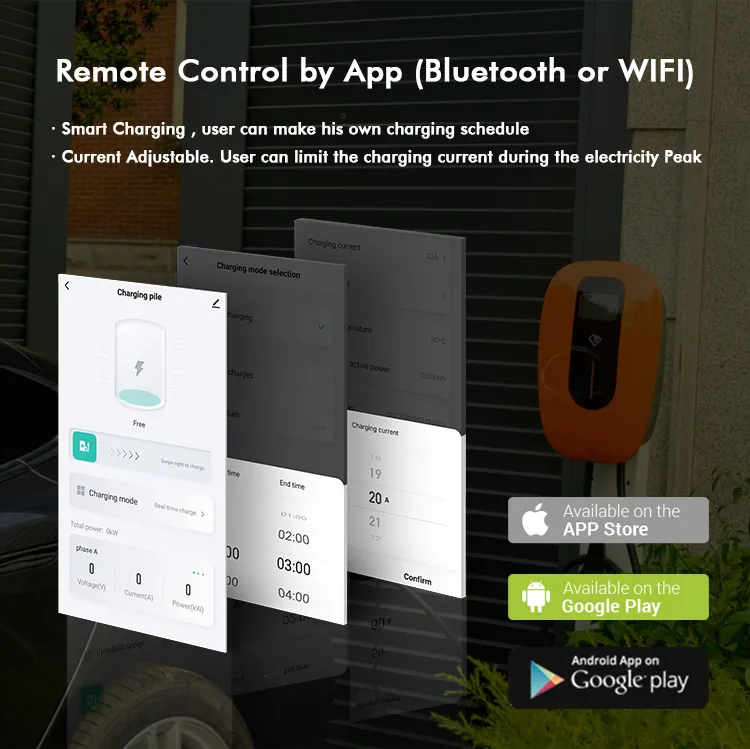

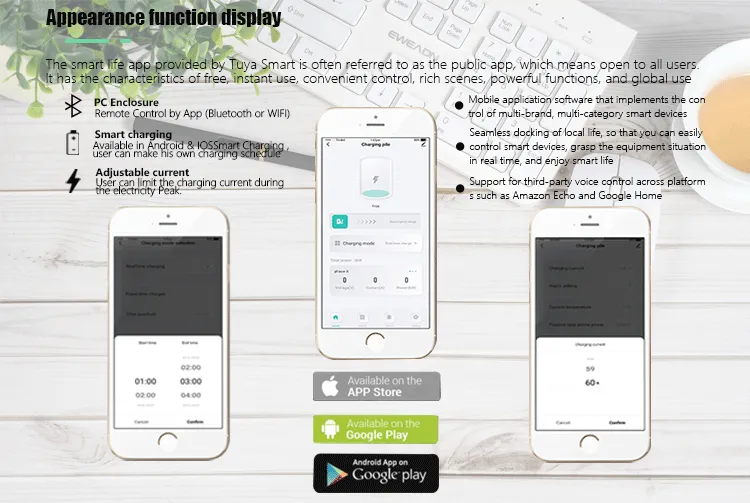

APP Control RFID Card Optional
Output Power
7/11/22kw

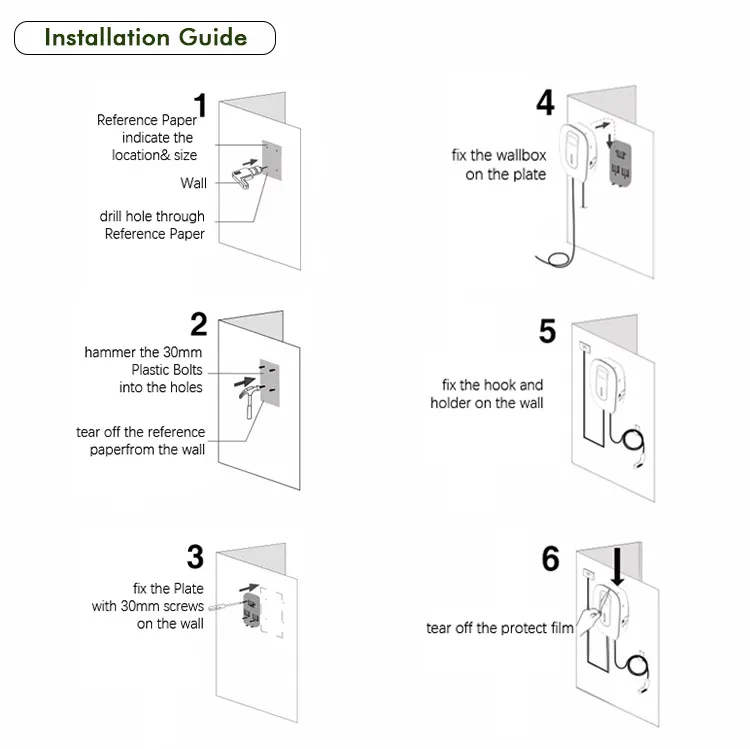

Installation
Hanging
After-sales Service
1
Type
Fast EV Charging Station
Certification
CE, ISO, RoHS
Warranty
12 Months
Transport Package
Carton Package
Specification
56*34*31
Trademark
Green Science
Origin
Sichuan China
HS Code
8504409999
Production Capacity
10000 Month

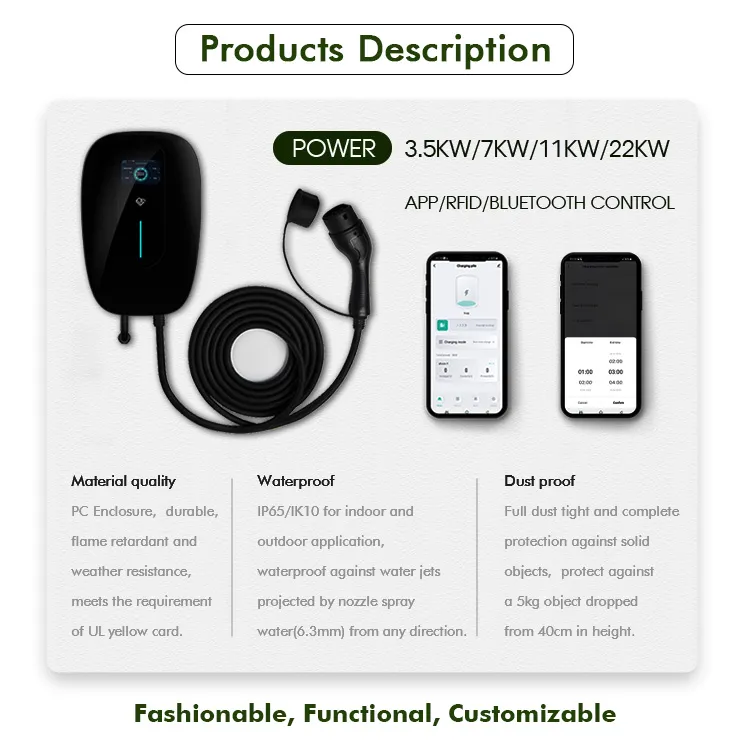

Product Description

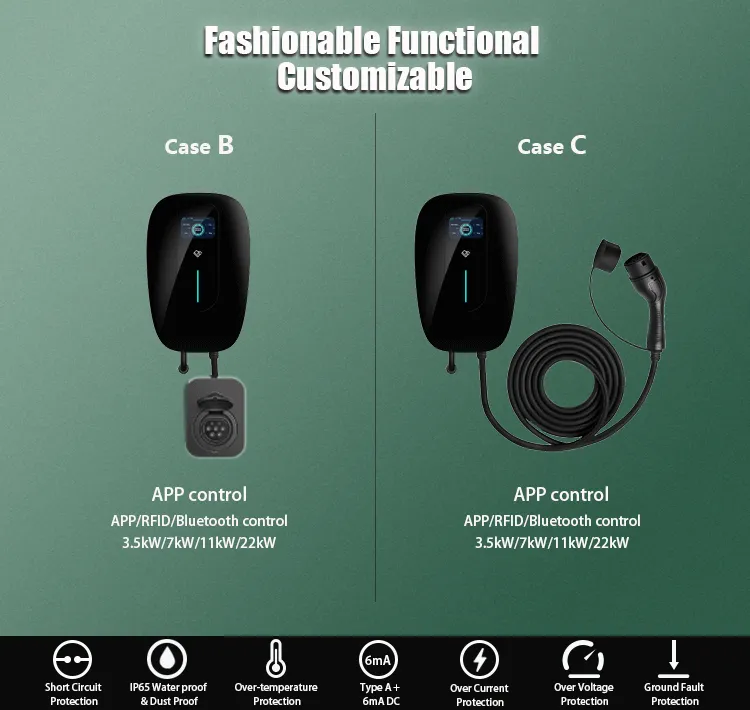

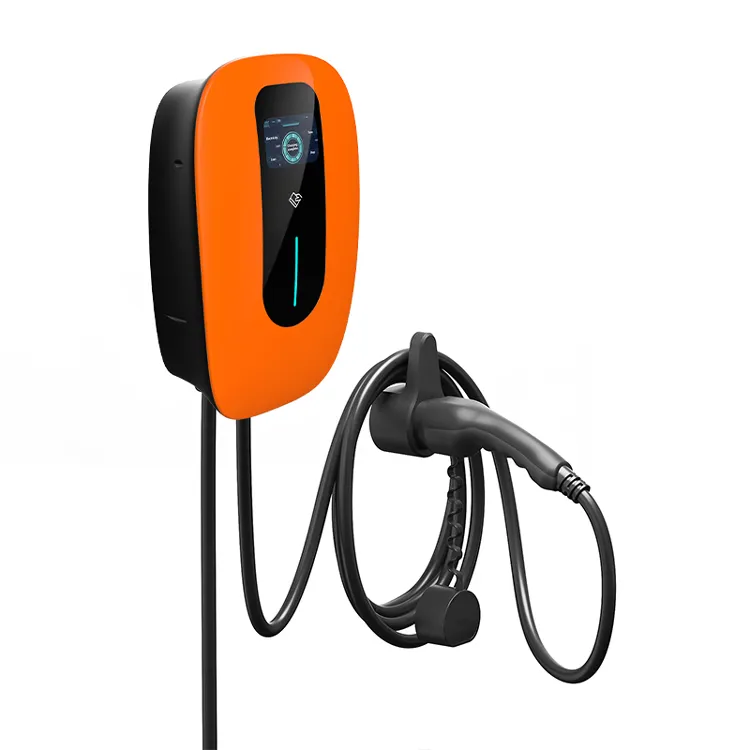

APP electric car charger 7kw type 2 ev charger wallbox
7/11/22kw Green Science Sichuan China EV Charging Cable Wallbox with RoHS 7/11/22kw Green Science Sichuan China EV Charging Cable Wallbox with RoHS 7/11/22kw Green Science Sichuan China EV Charging Cable Wallbox with RoHS 7/11/22kw Green Science Sichuan China EV Charging Cable Wallbox with RoHS 7/11/22kw Green Science Sichuan China EV Charging Cable Wallbox with RoHS 7/11/22kw Green Science Sichuan China EV Charging Cable Wallbox with RoHS 7/11/22kw Green Science Sichuan China EV Charging Cable Wallbox with RoHS 7/11/22kw Green Science Sichuan China EV Charging Cable Wallbox with RoHS 7/11/22kw Green Science Sichuan China EV Charging Cable Wallbox with RoHS 7/11/22kw Green Science Sichuan China EV Charging Cable Wallbox with RoHS 7/11/22kw Green Science Sichuan China EV Charging Cable Wallbox with RoHS 7/11/22kw Green Science Sichuan China EV Charging Cable Wallbox with RoHS 7/11/22kw Green Science Sichuan China EV Charging Cable Wallbox with RoHS 7/11/22kw Green Science Sichuan China EV Charging Cable Wallbox with RoHS

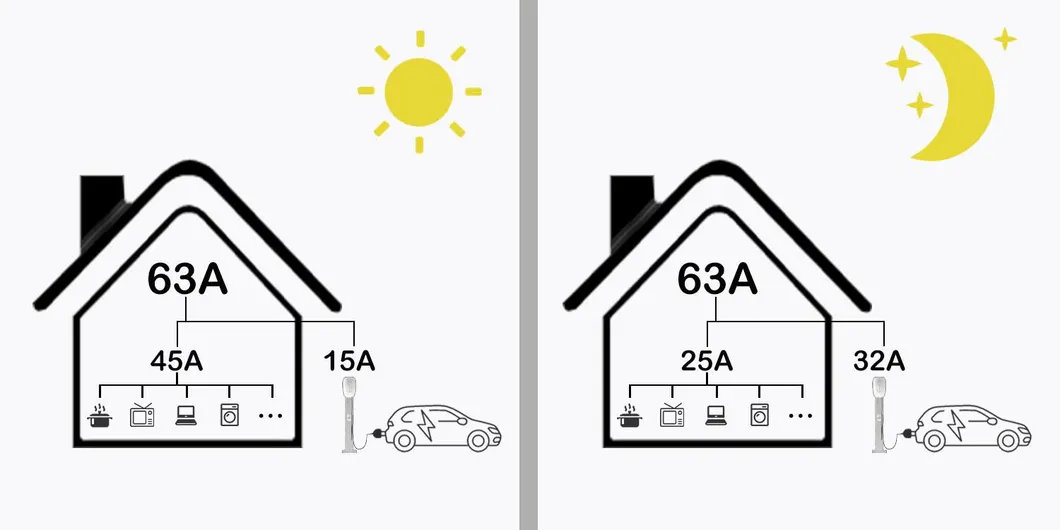

Dynamic load balancing built in
* Active load management options available;
* Load management can reduce the maximum load of power grid and save electric energy by improving user's power consumption behavior and mode through load adjustment technology. The effect of reducing power investment and operating

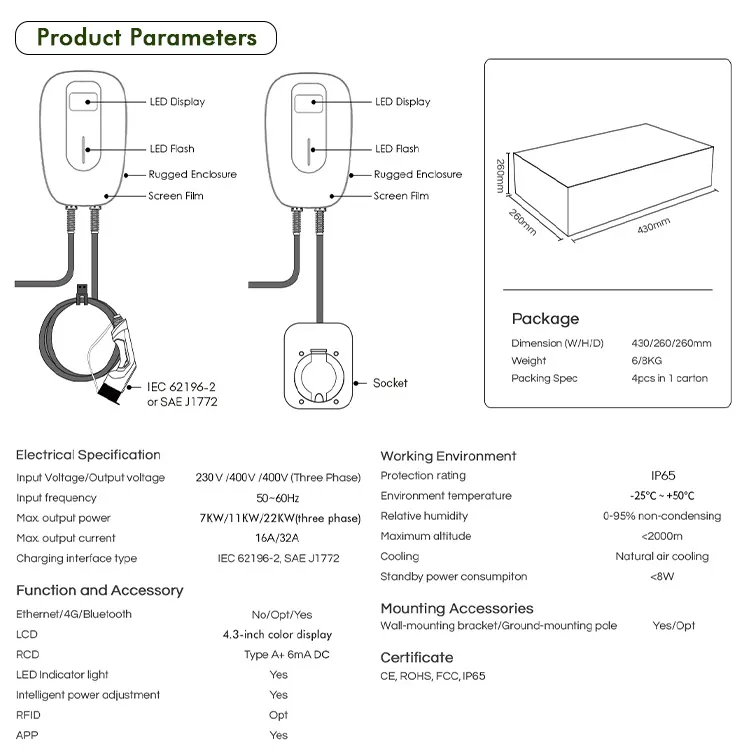

Specification
Data
Model
GS7-AC-BO1
GS11-AC-BO1
GS22-AC-BO1


Input
Power Supply
1P+N+PE
3P+N+PE
3P+N+PE
Rated Voltage
230V AC
400V AC
400V AC
Rated Current
32A
16A
32A


Output
Output Voltage
230V AC
400V AC
400V AC
Output Current
32A
16A
32A
Rated Power
7KW
11KW
22KW




User Interface

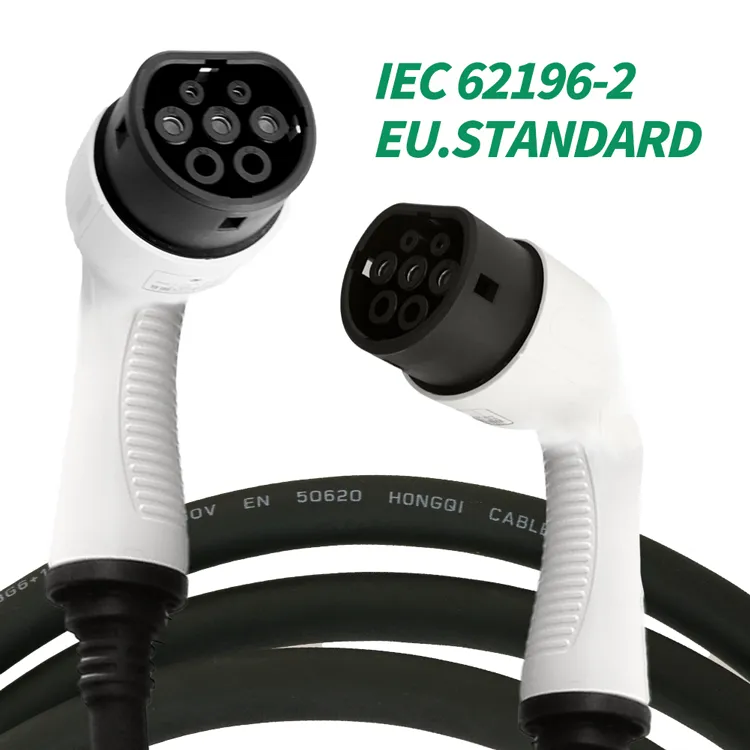

Charging Port
Type 2
Cable Length
3.5M/4M/5M/10M
LED Indicator
Yellow/Green/Red
Start Mode
Plug&Play / RFID Card / APP
Emergency Stop
YES


Communication
WIFI
Optional
3G/4G/5G
Optional
OCPP
OCPP 1.6 Json (OCPP 2.0 Optional)



Package
Unit Size
340*285*147mm
Package Size
480*350*210mm
480*350*210mm
480*350*210mm
Net Weight
3.8KGS
4.5KGS
4.5KGS
Gross Weight
4KGS
5KGS
5KGS
