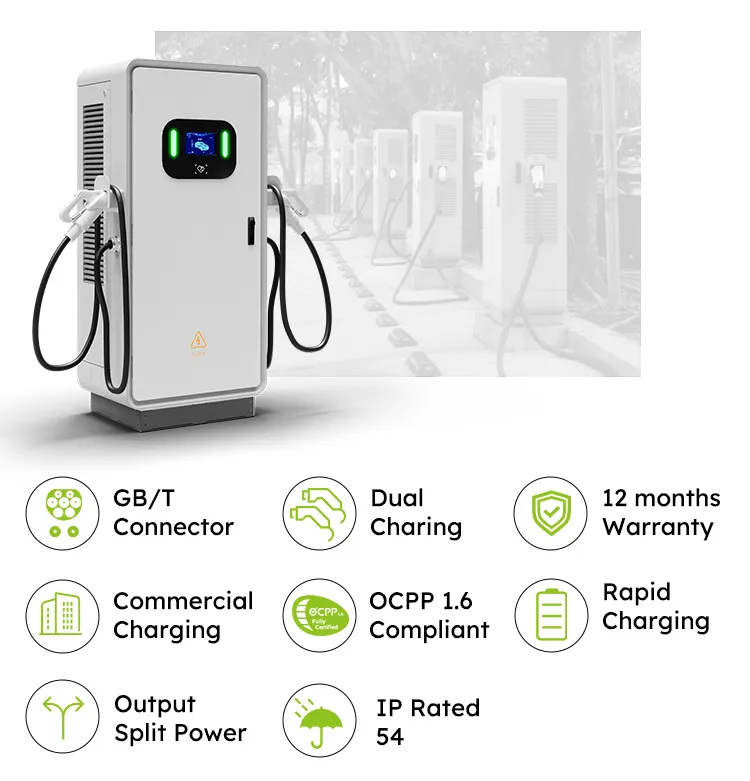

| Product Model | GTD_N_60 | |
| Device Dimensions | 1400*300*800mm(H*W*D) | |

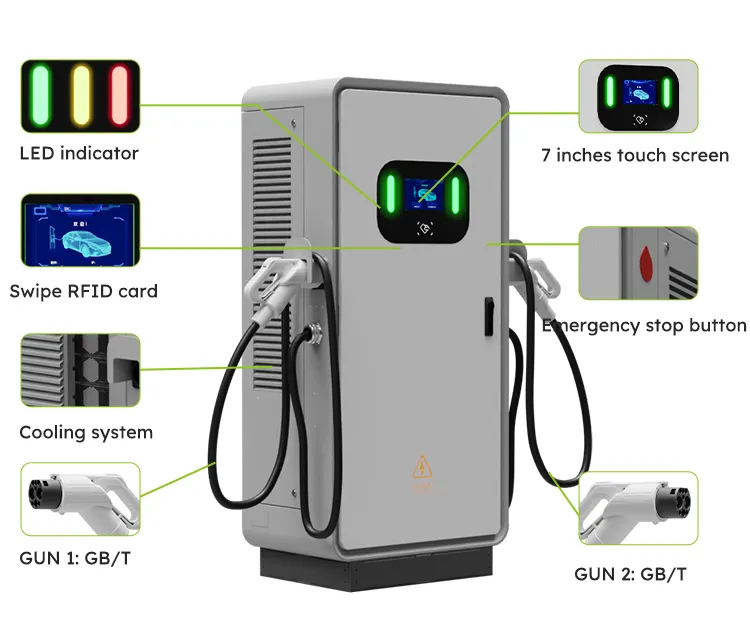

| Human-Machine Interface | 7 inch LCD color touch screen LED indicator light | |
| Startup Method | APP/swipe card | |
| Installation Method | Floor standing | |
| Cable Length | 5m | |
| Number of Charging Guns | Single gun | |
| Input Voltage | AC380V±20% | |
| Input Frequency | 45Hz~65Hz | |
| Rated Power | 60kW(constant power) | |
| Output Voltage | 200V~750V | 200V~1000V |
| Output Current | Single Gun Max150A | |
| Highest Efficiency | ≥95%(Peak) | |
| Power Factor | ≥0.99(above 50% load) | |
| Total Harmonic Distortion (THD) | ≤5%(above 50% load) | |
| Safety Standards | GB\T20234,GB\T18487,NB\T33008,NB\T33002 | |

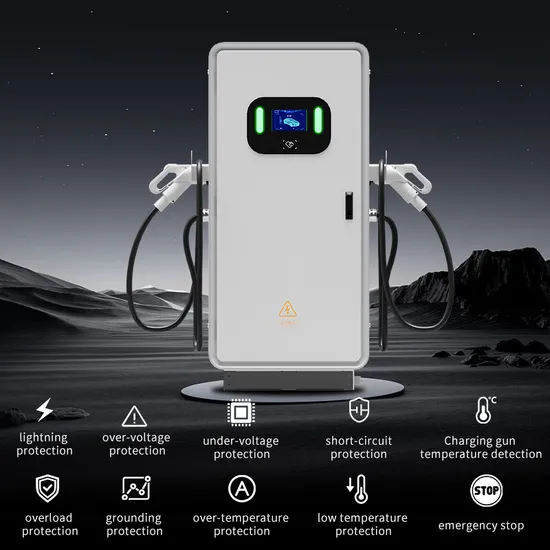

| Protection Design | Charging gun temperature detection, over-voltage protection, under-voltage protection, short-circuit protection, overload protection, grounding protection, over-temperature protection, low temperature protection, lightning protection, emergency stop, lightning protection | |
| Operating Temperature | -25ºC~+50ºC | |
| Operating Humidity | 5%~95% no condensation | |
| Operating Altitude | <2000m | |

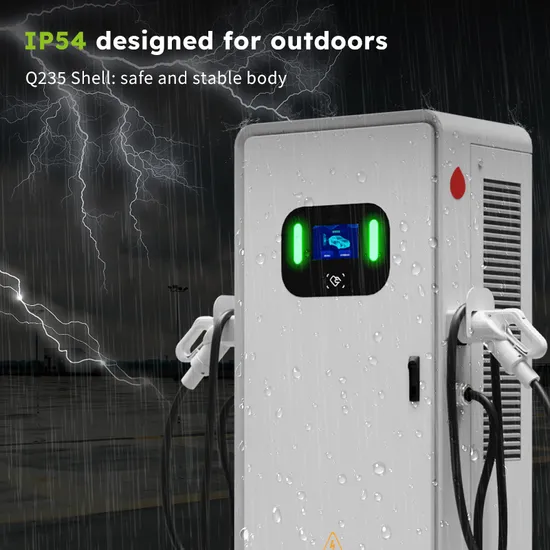

| Protection Level | IP54 | |

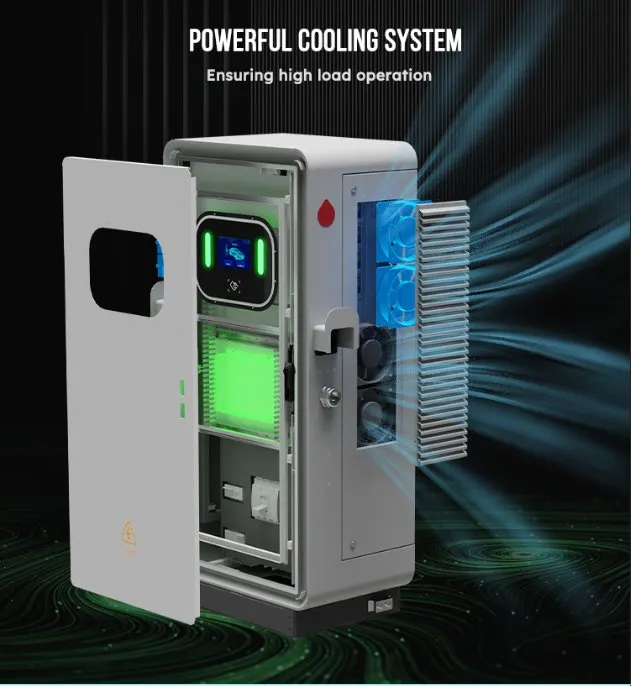

| Cooling Method | Forced air cooling | |
| Current Limit Protection Value | ≥110% | |
| Metering Accuracy | 0.5 grade | |
| Voltage Regulation Accuracy | ≤±0.5% | |
| Current Regulation Accuracy | ≤±1% | |
| Ripple Factor | ≤±1% | |
