Wallbox EV Charger with 5m Cable Electric Vehicle Charging with Dlb
Wallbox EV Charger with 5m Cable Electric Vehicle Charging with Dlb Wallbox EV Charger with 5m Cable Electric Vehicle Charging with Dlb
Wallbox EV Charger with 5m Cable Electric Vehicle Charging with Dlb Wallbox EV Charger with 5m Cable Electric Vehicle Charging with Dlb
Wallbox EV Charger with 5m Cable Electric Vehicle Charging with Dlb Wallbox EV Charger with 5m Cable Electric Vehicle Charging with Dlb
Wallbox EV Charger with 5m Cable Electric Vehicle Charging with Dlb Wallbox EV Charger with 5m Cable Electric Vehicle Charging with Dlb
Wallbox EV Charger with 5m Cable Electric Vehicle Charging with Dlb Wallbox EV Charger with 5m Cable Electric Vehicle Charging with Dlb
Wallbox EV Charger with 5m Cable Electric Vehicle Charging with Dlb Wallbox EV Charger with 5m Cable Electric Vehicle Charging with Dlb

loading

Wallbox EV Charger with 5m Cable Electric Vehicle Charging with Dlb

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Customization:Available
Installation:Wall-Mounted /Floor-Stand
Communication:RS485/WiFi/Bluetooth/4G/Ethernet
Quantity:
Inquire Add to Basket
Overview

Basic Info.

Model NO.
GS11-AC-B02

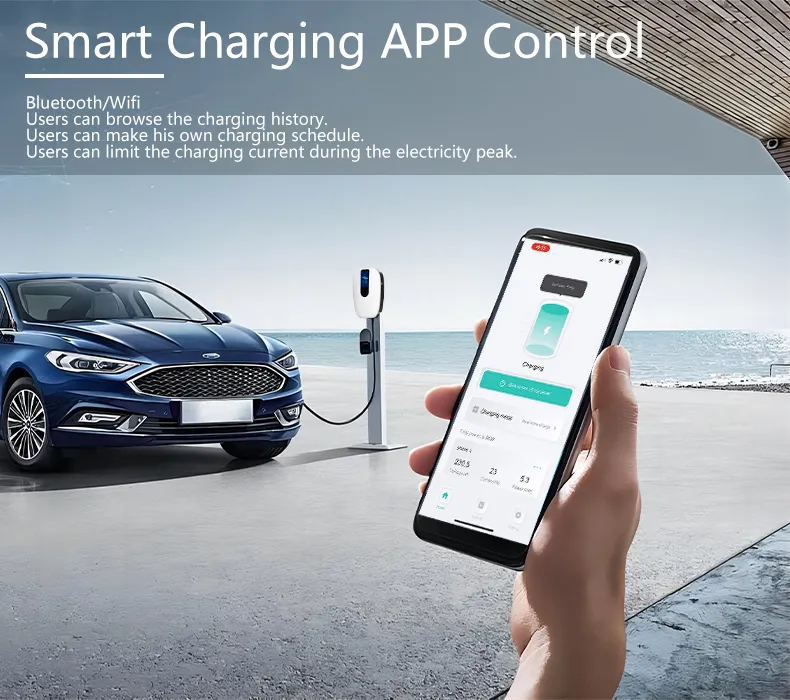

Smart Charging
Tuya APP / Ocpp 1.6j
RCD
Type a + 6mA DC
Charging Connector
Type 2 Connector
IP Protection
IP 65
Plug Lifetime
30000 Times Plug in and Plug out
Enclosure
Plastic PC940A
Charging Mode
Plug & Play, RFID, APP / Ocpp 1.6j
Standard
IEC 61851-1:2017, IEC 61851-21-2:2018
Ik Protection
Ik10
Cable Length
5 Meters/ Customized
Certificate
CE Reach FCC RoHS
Color
Black White Orange Optional
After-sales Service
Hardware Problem for Free Replacement
Type
Fast EV Charging Station
Certification
CE, ISO, TUV, RoHS
Warranty
12 Months
Transport Package
Carton
Specification
470*320*270mm
Trademark
Green Science
Origin
China
HS Code
8504409999
Production Capacity
50000/Year

Product Description



Wallbox EV Charger with 5m Cable Electric Vehicle Charging with Dlb

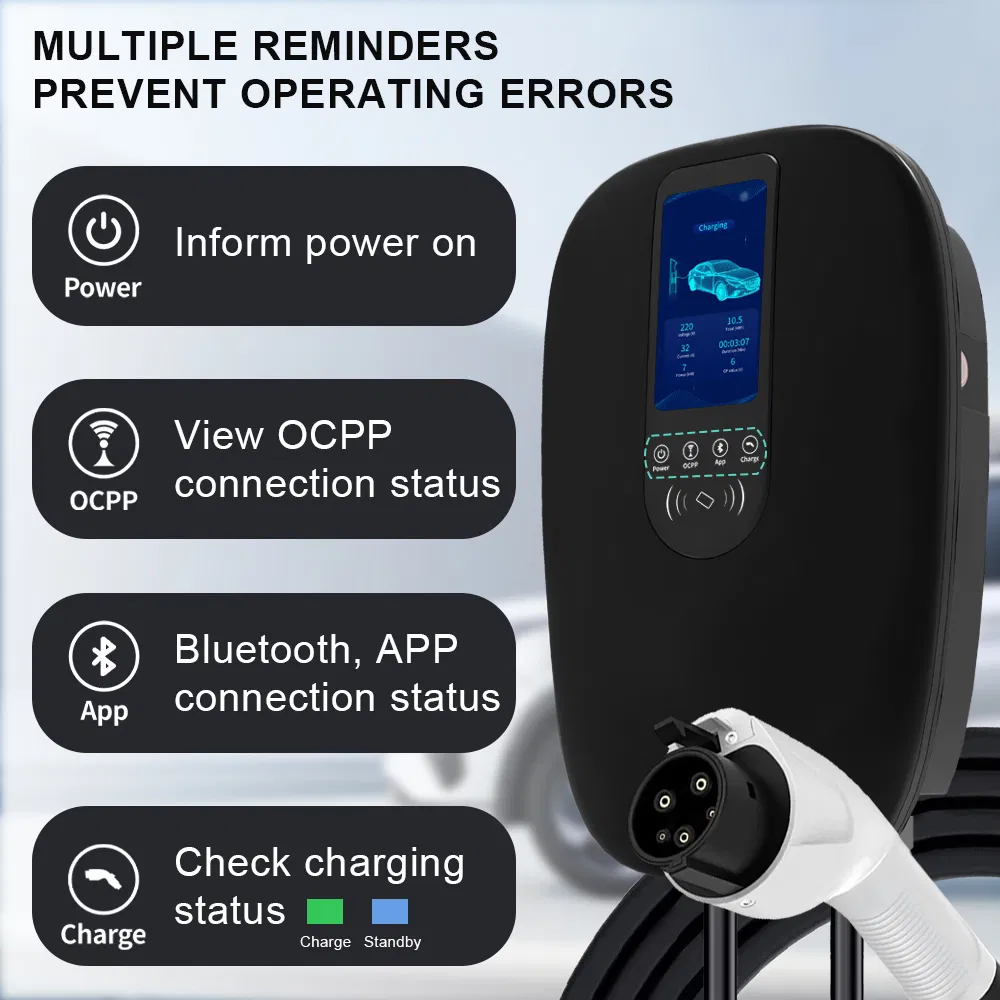

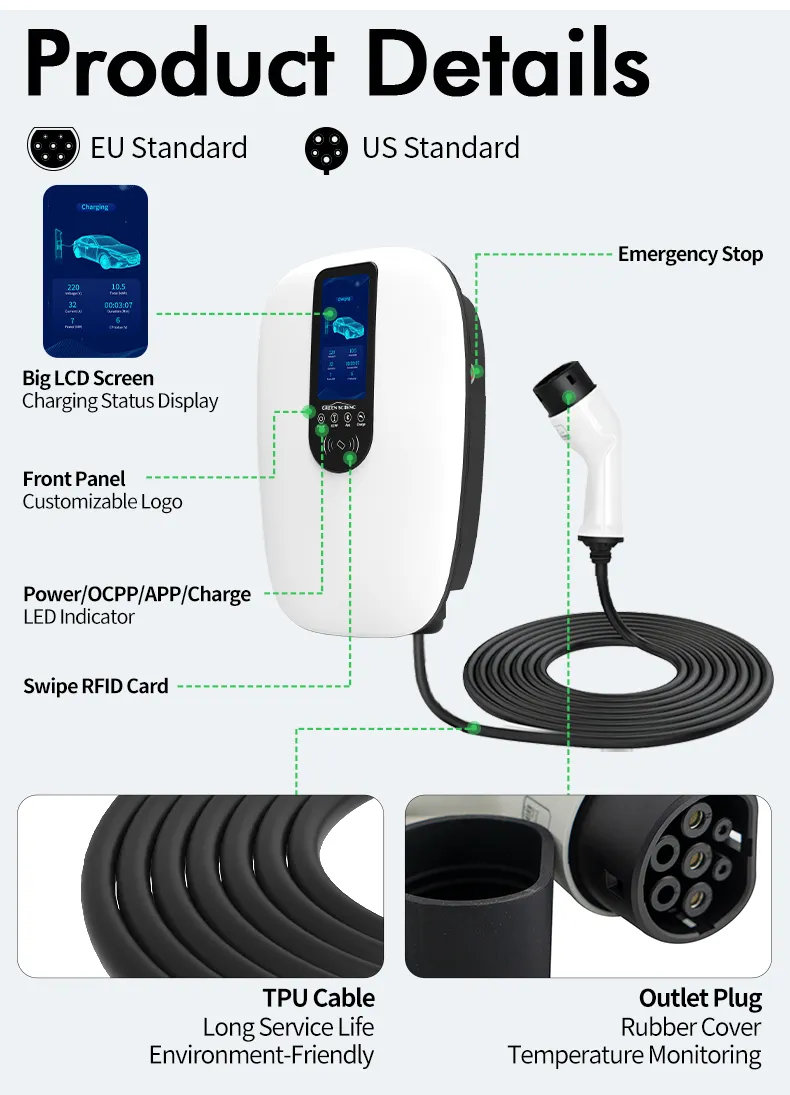

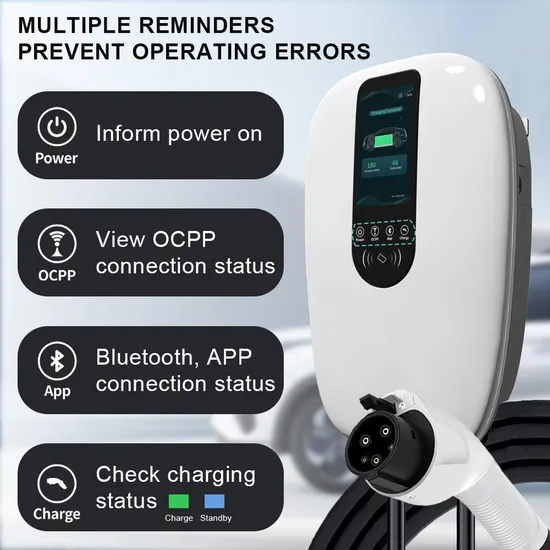

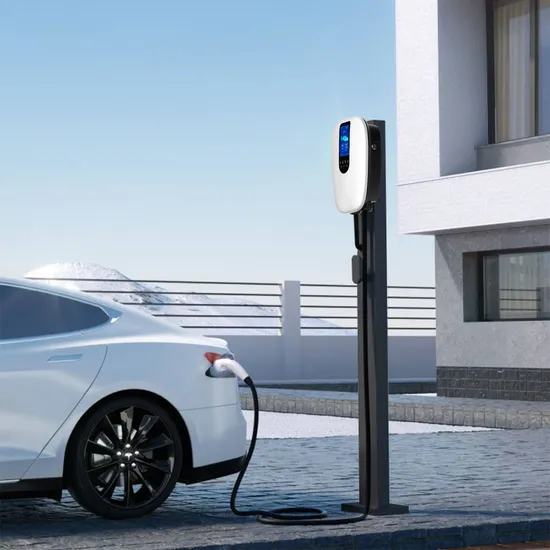

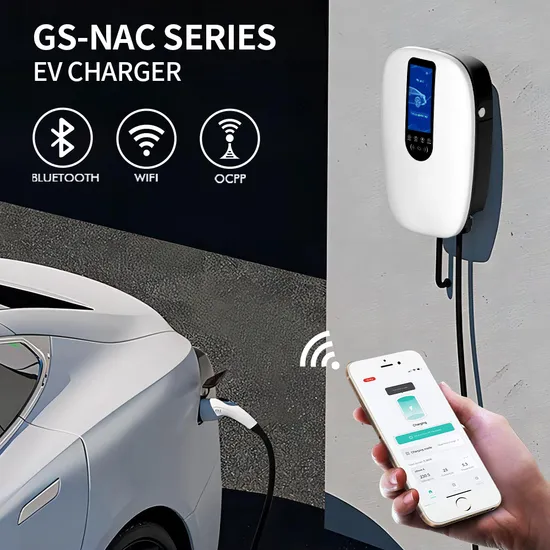

Detailed Photos

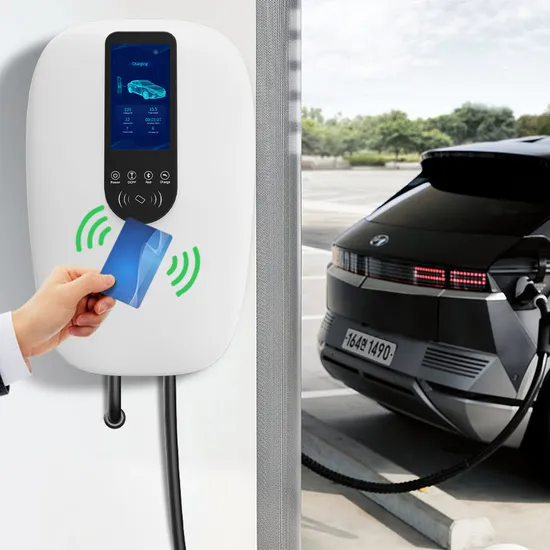

Wallbox EV Charger with 5m Cable Electric Vehicle Charging with Dlb



Product Parameters



Technical Datasheet
Model GS7-AC-B02 GS11-AC-B02 GS22-AC-B02
Power Supply 1P+N+PE 3P+N+PE 3P+N+PE
Rated Voltage 230 V AC 400V AC 400V AC
Rated Current  32A 16A 32A
Frequency  50/60 Hz 50/60 Hz 50/60 Hz
Output Voltage 230V AC 400V AC 400V AC
Output Current 32A 16A 32A
Max Output power 7kw  11kw 22kw
Cable Connector Type 2
Cable length  5m /Customized
Control Mode Plug & Play / RFID card /App /OCPP 1.6J
Communication WIFI / Ethernet / Blue tooth/ 4G
IP Protection IP 65
RCD  30mA Type A + 6mA DC
Certificate  CE , Rohs
Warranty Period 24 months
Package Dimensions  470* 320*270 mm
Gross weight  7kg
External Package Carton

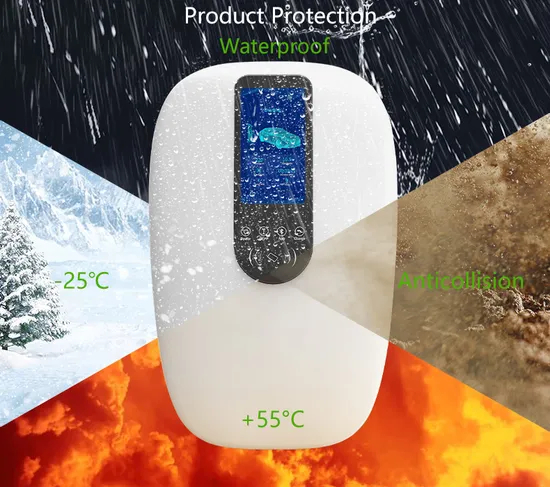

Wallbox EV Charger with 5m Cable Electric Vehicle Charging with Dlb


Certifications



Wallbox EV Charger with 5m Cable Electric Vehicle Charging with Dlb
Compatibility



Wallbox EV Charger with 5m Cable Electric Vehicle Charging with Dlb
Our Advantages



Wallbox EV Charger with 5m Cable Electric Vehicle Charging with Dlb






Previous:
Next:

RELATED PRODUCTS

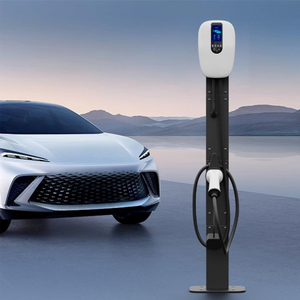

AC Charger
AC Charger

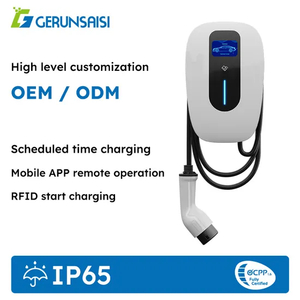

7kw/11kw/22kw CE Type2 Home Smart EV Charger with RFID Card/WiFi/APP
7kw/11kw/22kw CE Type2 Home Smart EV Charger with RFID Card/WiFi/APP

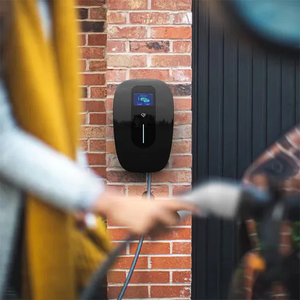

7kw 32A EV Charger Pile Type 1 2 Commercial Home Use Tuya APP Ocpp 1.6
7kw 32A EV Charger Pile Type 1 2 Commercial Home Use Tuya APP Ocpp 1.6

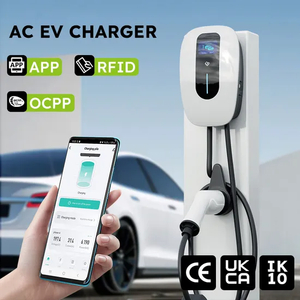

11kw 16A EV Charger with 5m Cable Electric Vehicle Charging Wallbox EV Charger
11kw 16A EV Charger with 5m Cable Electric Vehicle Charging Wallbox EV Charger
SAE J1772 Level 2 Smart Home EV Charging Station with WiFi/APP/RFID Card
SAE J1772 Level 2 Smart Home EV Charging Station with WiFi/APP/RFID Card

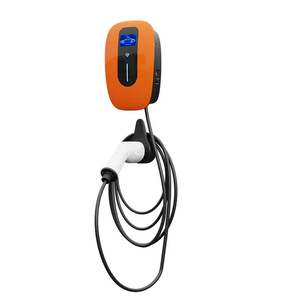

7kw 32A EV Charger Pile EV Charging Station Type 1 2 Home Commercial Use Tuya APP
7kw 32A EV Charger Pile EV Charging Station Type 1 2 Home Commercial Use Tuya APP
11kw 16A Wallbox EV Charger EV Charging Station IP65 CE Certification Tuya APP
11kw 16A Wallbox EV Charger EV Charging Station IP65 CE Certification Tuya APP

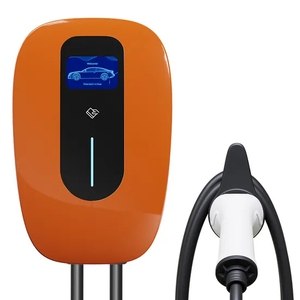

22kw 32A Evse Wallbox Home EV Charger Pile EV Charging Staion APP Adjustable
22kw 32A Evse Wallbox Home EV Charger Pile EV Charging Staion APP Adjustable
AC EV Charger Wallbox Charging Station 22kw 32A Ocpp 1.6 APP Plug and Play Wholesale Type2
AC EV Charger Wallbox Charging Station 22kw 32A Ocpp 1.6 APP Plug and Play Wholesale Type2
Wall Mounted EV Car Charger 22 Kwh
Wall Mounted EV Car Charger 22 Kwh
EV Charger Pedestal Floor Mounted Charging Stations
EV Charger Pedestal Floor Mounted Charging Stations

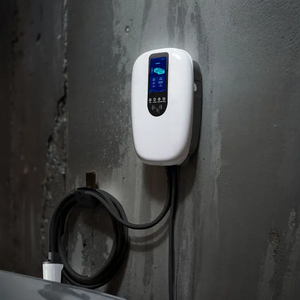

Wall-Amount EV Charger with WiFi
Wall-Amount EV Charger with WiFi

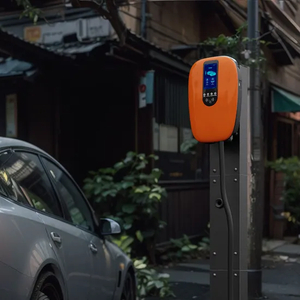

Good Price Dismountable Floor Stands for EV Charger
Good Price Dismountable Floor Stands for EV Charger

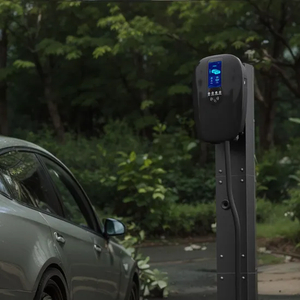

Floor-Mounted Small AC Battery Charger EV Charging
Floor-Mounted Small AC Battery Charger EV Charging

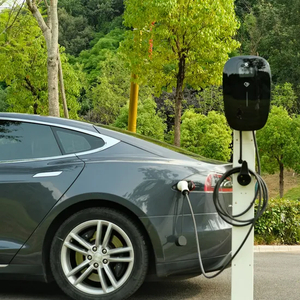

AC DC EV Charger
AC DC EV Charger

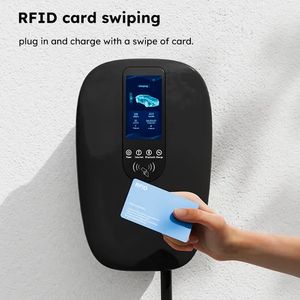

400V Universal EV Car Charger Station 22kw Charging Type 2
400V Universal EV Car Charger Station 22kw Charging Type 2

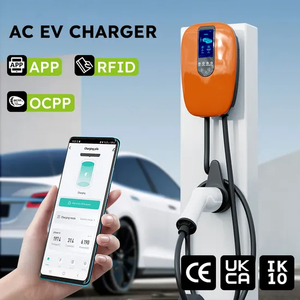

Three Phase 22kw EV Charger Wall Box Designed
Three Phase 22kw EV Charger Wall Box Designed

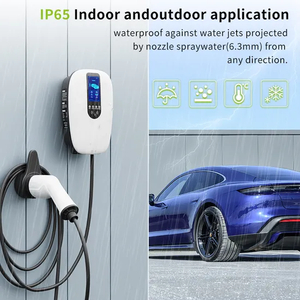

Outdoor IP65 EV Charger Enclosure Housing Load Plastic
Outdoor IP65 EV Charger Enclosure Housing Load Plastic

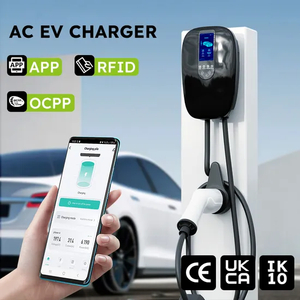

CE Listed Mode 3 22 Kw 3 Phase EV Charger Level 2
CE Listed Mode 3 22 Kw 3 Phase EV Charger Level 2

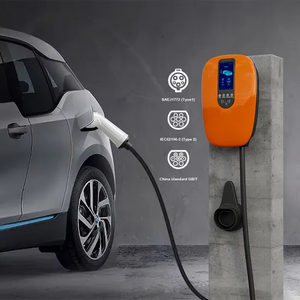

2024 New EV Charger Screen Version Type 2 32A 22kw
