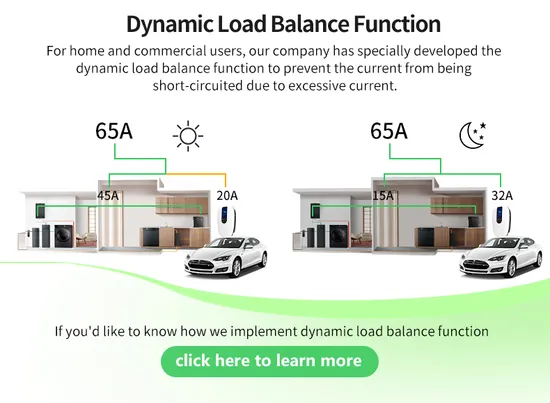

New Energy Vehicle EV Charger Remote-Control Load Balance EV Charging Station
New Energy Vehicle EV Charger Remote-Control Load Balance EV Charging Station New Energy Vehicle EV Charger Remote-Control Load Balance EV Charging Station
New Energy Vehicle EV Charger Remote-Control Load Balance EV Charging Station New Energy Vehicle EV Charger Remote-Control Load Balance EV Charging Station
New Energy Vehicle EV Charger Remote-Control Load Balance EV Charging Station New Energy Vehicle EV Charger Remote-Control Load Balance EV Charging Station
New Energy Vehicle EV Charger Remote-Control Load Balance EV Charging Station New Energy Vehicle EV Charger Remote-Control Load Balance EV Charging Station
New Energy Vehicle EV Charger Remote-Control Load Balance EV Charging Station New Energy Vehicle EV Charger Remote-Control Load Balance EV Charging Station
New Energy Vehicle EV Charger Remote-Control Load Balance EV Charging Station New Energy Vehicle EV Charger Remote-Control Load Balance EV Charging Station

loading

New Energy Vehicle EV Charger Remote-Control Load Balance EV Charging Station

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Customization:Available
Installation:Wall-Mounted /Floor-Stand
Communication:RS485/WiFi/Bluetooth/4G/Ethernet
Quantity:
Inquire Add to Basket
Overview

Basic Info.

Model NO.
GS11-AC-B02
Smart Charging
Tuya APP / Ocpp 1.6j
RCD
Type a + 6mA DC
Charging Connector
Type 2 Connector
IP Protection
IP 65
Plug Lifetime
30000 Times Plug in and Plug out
Enclosure
Plastic PC940A
Charging Mode
Plug & Play, RFID, APP / Ocpp 1.6j
Standard
IEC 61851-1:2017, IEC 61851-21-2:2018
Ik Protection
Ik10
Cable Length
5 Meters/ Customized
Certificate
CE Reach FCC RoHS

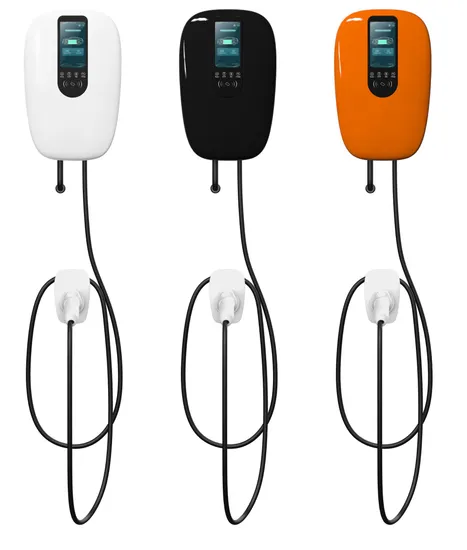

Color
Black White Orange Optional
After-sales Service
Hardware Problem for Free Replacement
Type
Fast EV Charging Station
Certification
CE, ISO, TUV, RoHS
Warranty
12 Months
Transport Package
Carton
Specification
470*320*270mm
Trademark
Green Science
Origin
China
HS Code
8504409999
Production Capacity
50000/Year

Product Description



New Energy Vehicle EV Charger Remote-Control Load Balance EV Charging Station

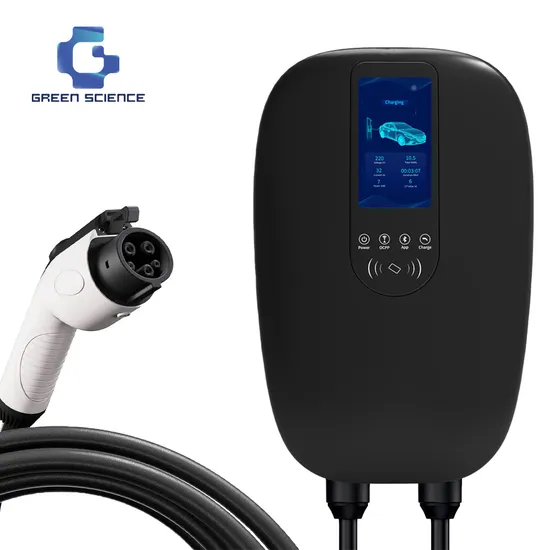

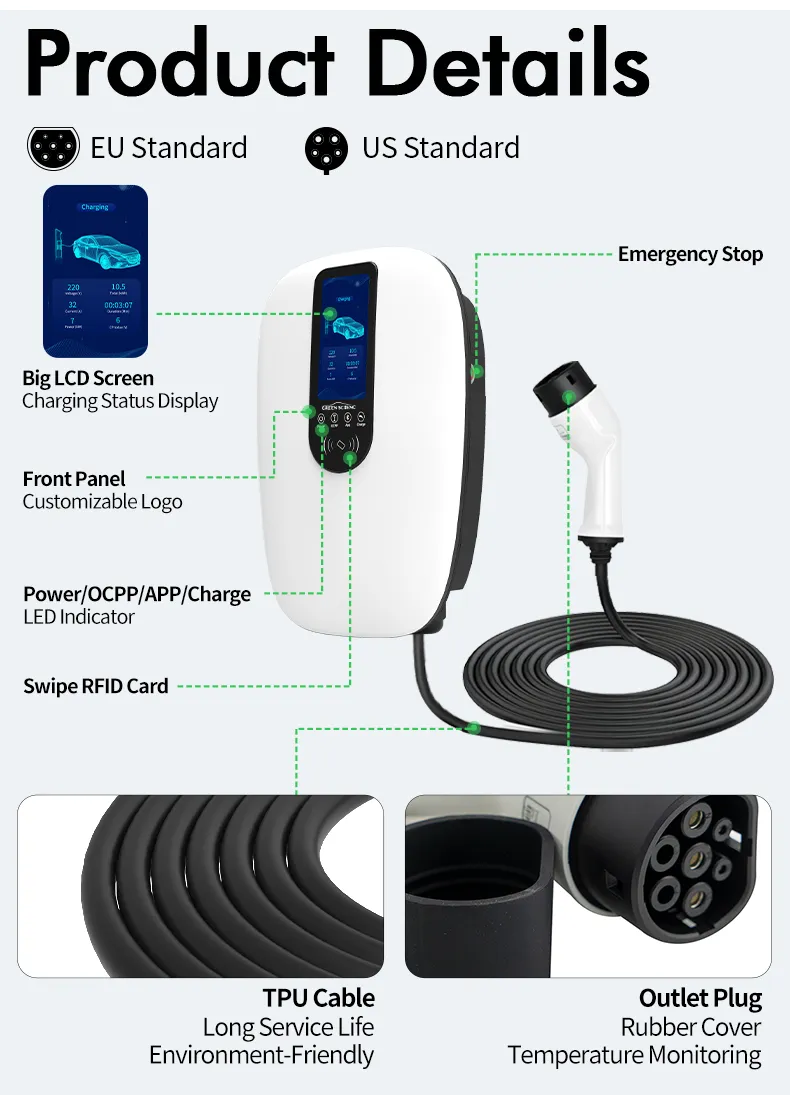

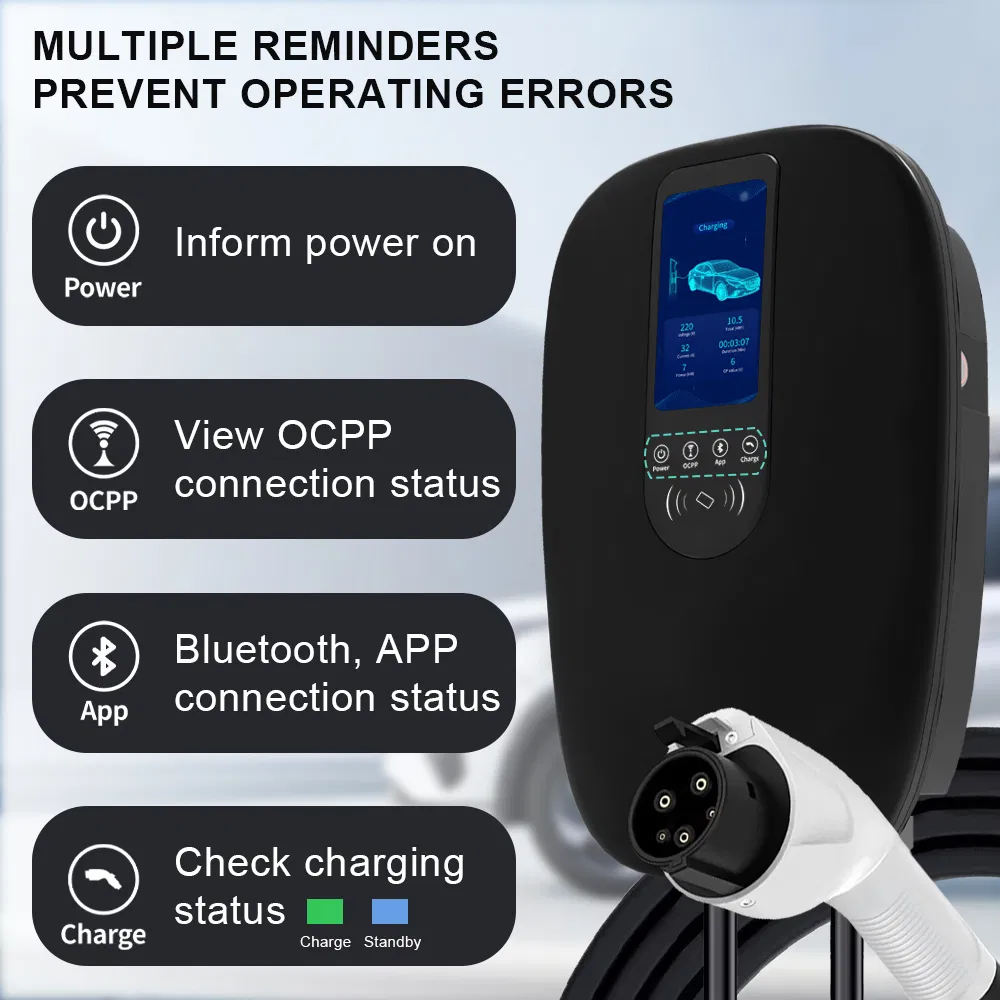

Detailed Photos



New Energy Vehicle EV Charger Remote-Control Load Balance EV Charging Station



Product Parameters



Technical Datasheet
Model GS7-AC-B02 GS11-AC-B02 GS22-AC-B02
Power Supply 1P+N+PE 3P+N+PE 3P+N+PE
Rated Voltage 230 V AC 400V AC 400V AC
Rated Current  32A 16A 32A
Frequency  50/60 Hz 50/60 Hz 50/60 Hz
Output Voltage 230V AC 400V AC 400V AC
Output Current 32A 16A 32A
Max Output power 7kw  11kw 22kw
Cable Connector Type 2
Cable length  5m /Customized
Control Mode Plug & Play / RFID card /App /OCPP 1.6J
Communication WIFI / Ethernet / Blue tooth/ 4G
IP Protection IP 65
RCD  30mA Type A + 6mA DC
Certificate  CE , Rohs
Warranty Period 24 months
Package Dimensions  470* 320*270 mm
Gross weight  7kg
External Package Carton



New Energy Vehicle EV Charger Remote-Control Load Balance EV Charging Station


Certifications



New Energy Vehicle EV Charger Remote-Control Load Balance EV Charging Station
Compatibility



New Energy Vehicle EV Charger Remote-Control Load Balance EV Charging Station
Our Advantages



New Energy Vehicle EV Charger Remote-Control Load Balance EV Charging Station
