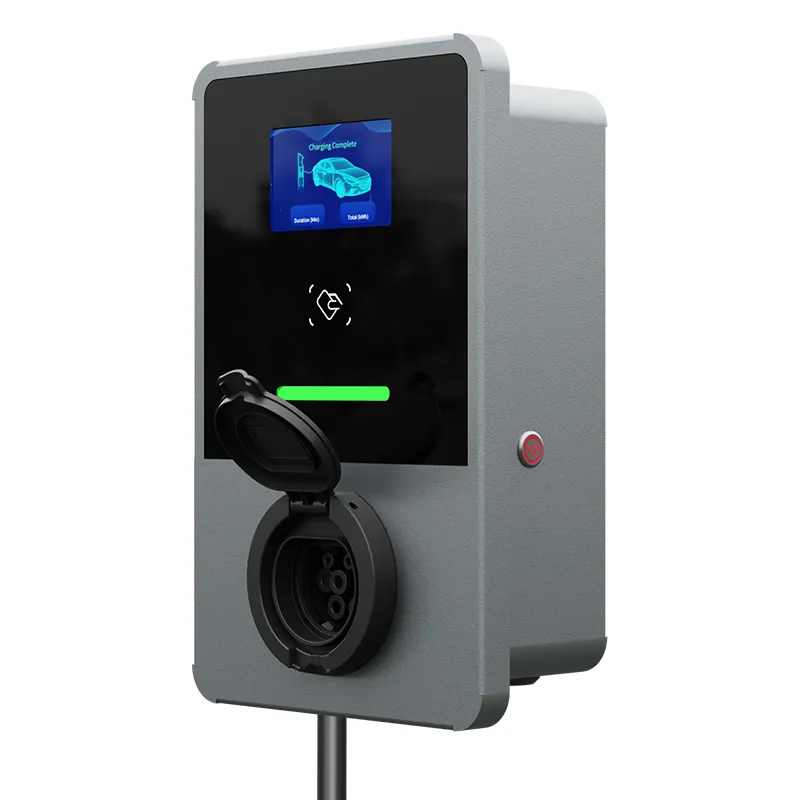

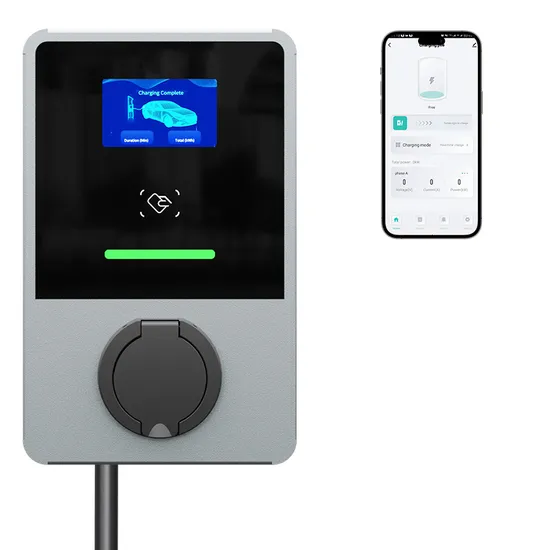

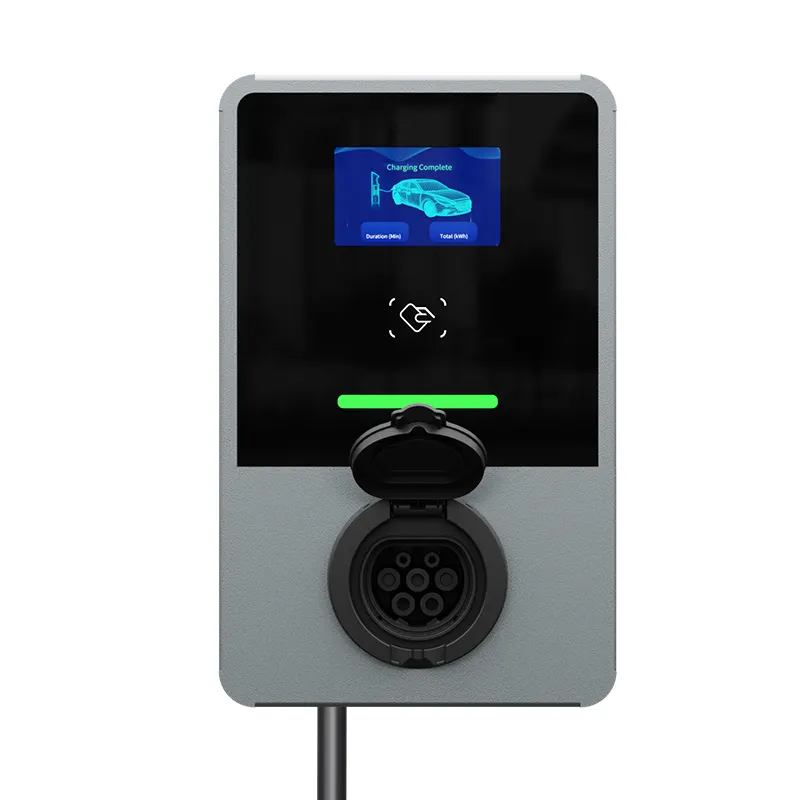

IP65 Smart Home EV Charger Type 2 11kw 32A with RFID Card/APP

Customization:	Available
Number of Charging Interfaces:	with Socket
Location:	Private Use

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

GS11-AC-H01

Charge Method

Quick Charge

Rated Voltage

400V AC

Rated Output Current

16A/32A

Rated Output Power

7kw/11kw/22kw

Communication

WiFi/Bluetooth/Rj 45/4G(Optional)

RCD

30mA Type a + 6mA DC

Standard

En/IEC 61851-1:2017, En/IEC 61851-21-2:2018

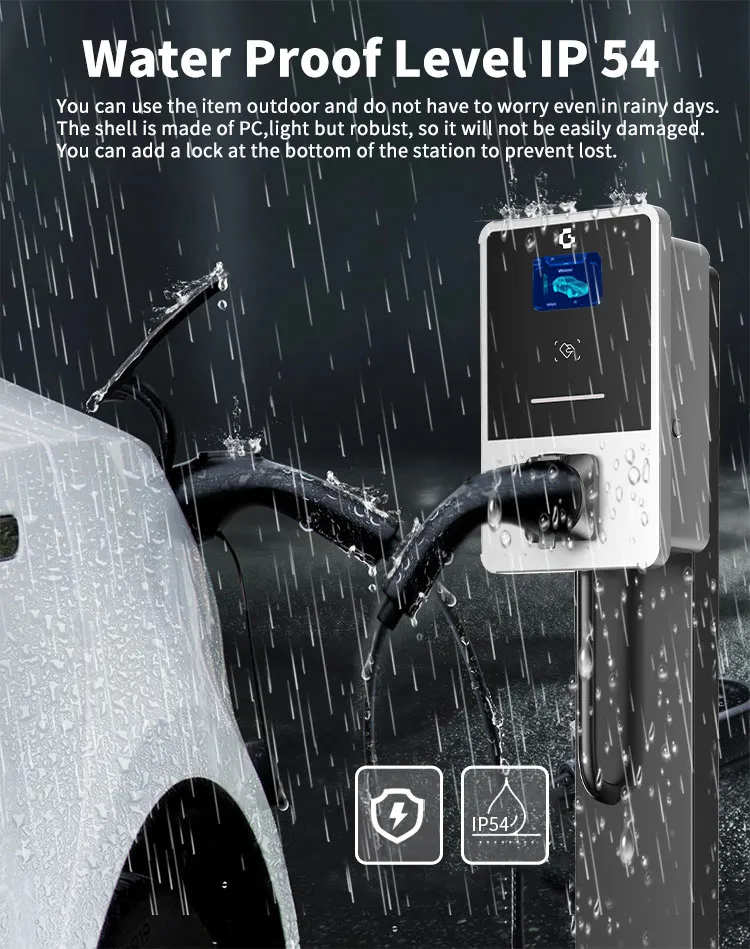

IP Protection

IP 54

Impact Protection

Ik10

Certification

CE, RoHS

Protocol

Ocpp 1.6 Json

Start Mode

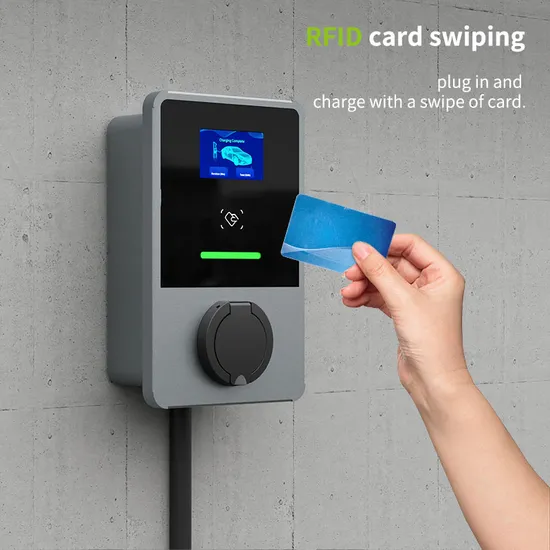

Plug&Play/ RFID Card/APP

Enclosure

Metal+High Tempered Glass

Emergency Stop

Yes

Net Weight

8kg

Warranty

12 Months

Transport Package

Carton

Specification

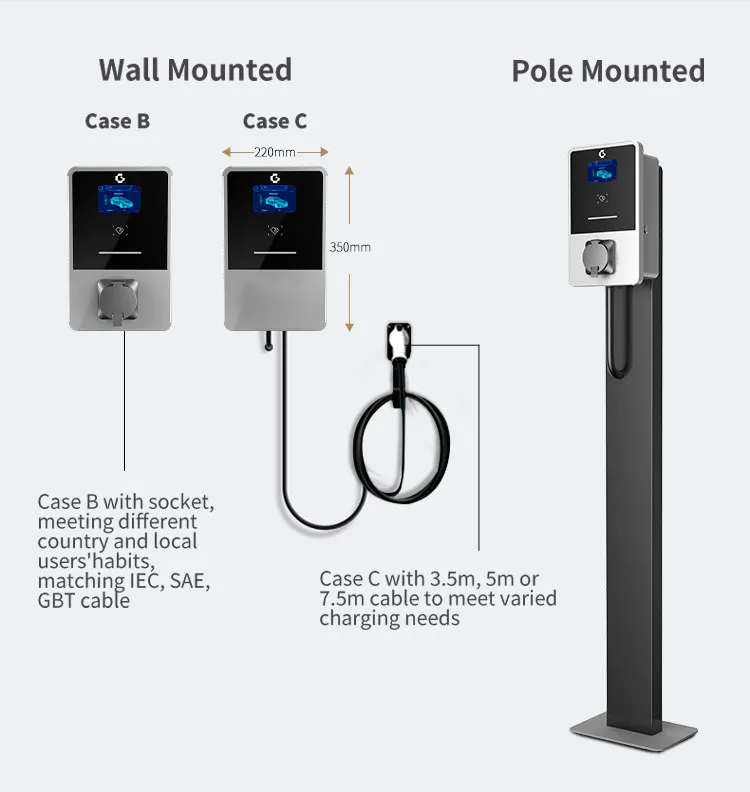

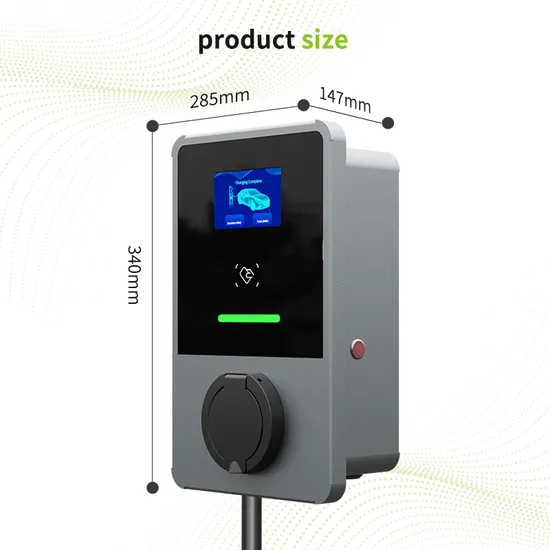

340*285*147mm

Trademark

GERUNSAISI

Origin

Sichuan, China

HS Code

8504409999

Production Capacity

10000/Month

Packaging & Delivery

Package Size

56.00cm * 34.00cm * 31.50cm

Package Gross Weight

8.000kg

Product Description

Features:

1. For Europe market, we've got CE, ROHS, NB, UKCA. REACH for 7kw, 11kw, 22kw wallbox EV charger.

2. For North America, we're getting FCC certification of 7kw, 10kw wallbox for whole charger.
3. Customize designs, languages, logos, colors available even for small quantity and small business.
4. 3 inch LED screen, Type B RCD leakage protection for EV chargers.
5. Manual available in different languages, English, German, Dutch, Italian, Spanish etc.
6.1 year warranty, 2 years and 3 years warranty(optional).
7. Each EV charging station is with emergency stop button.
8. Independently designed, different from other existing models in the market.

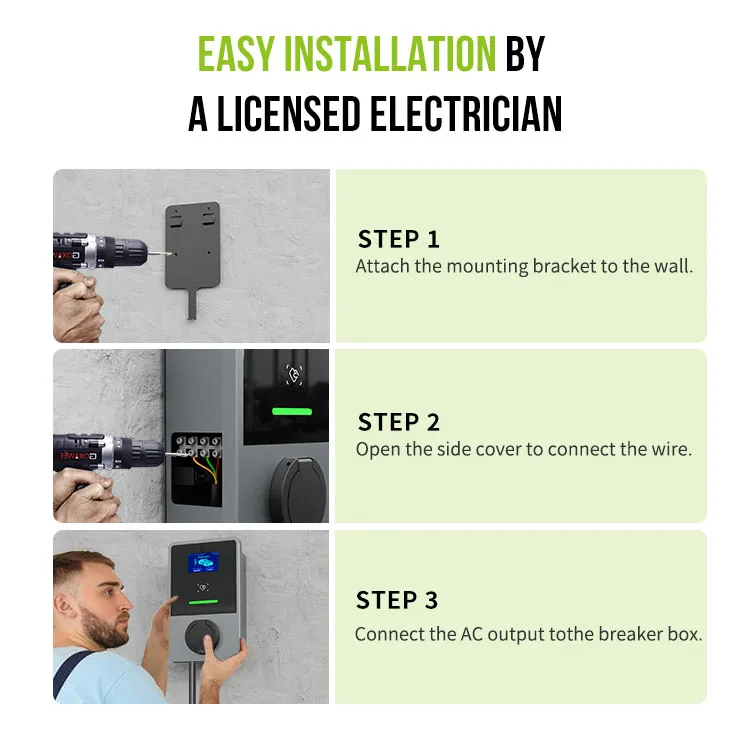

9. Easy installation, maintaining and stable functioning.
10. Solid durable metal box and full size LCD screen.

IP65 Smart Home EV Charger Type 2 11kw 32A with RFID Card/APP

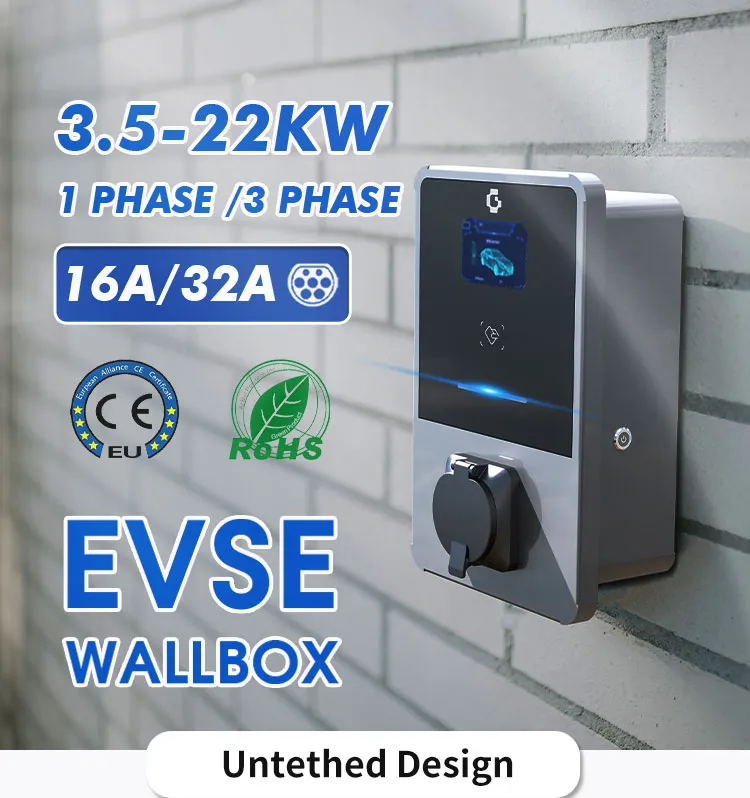

Model	GST7-AC-H01	GST11-AC-H01	GST22-AC-H01
Power Supply	1P+N+PE	3P+N+PE	3P+N+PE
Rated Voltage	230 V AC	400V AC	400V AC
Rated Current	32A	16A	32A
Frequency	50/60 Hz	50/60 Hz	50/60 Hz
Output Voltage	230V AC	400V AC	400V AC
Output Current	32A	16A	32A
Max Output power	7kw	11kw	22kw
Cable Connector	Type 2/GBT
Cable length	5m /Customized
Control Mode	Plug & Play / RFID card /App /OCPP 1.6J
Communication	WIFI / Ethernet / Blue tooth/ 4G(Optional)
IP Protection	IP 54

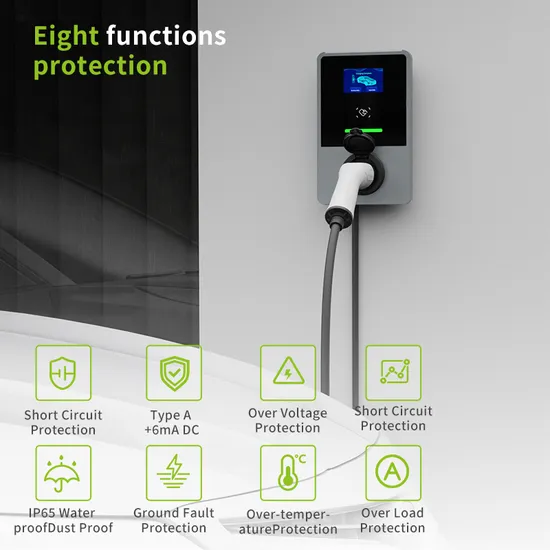

RCD	30mA Type A + 6mA DC
Certificate	CE , Rohs
Warranty Period	12 months
Package Dimensions	560* 340*147 mm
Gross weight	7 kg for 7kw, 9kg for 11kw and 11kg for 22kw
External Package	Carton

IP65 Smart Home EV Charger Type 2 11kw 32A with RFID Card/APP

Passion, Sincerity, Professionalism

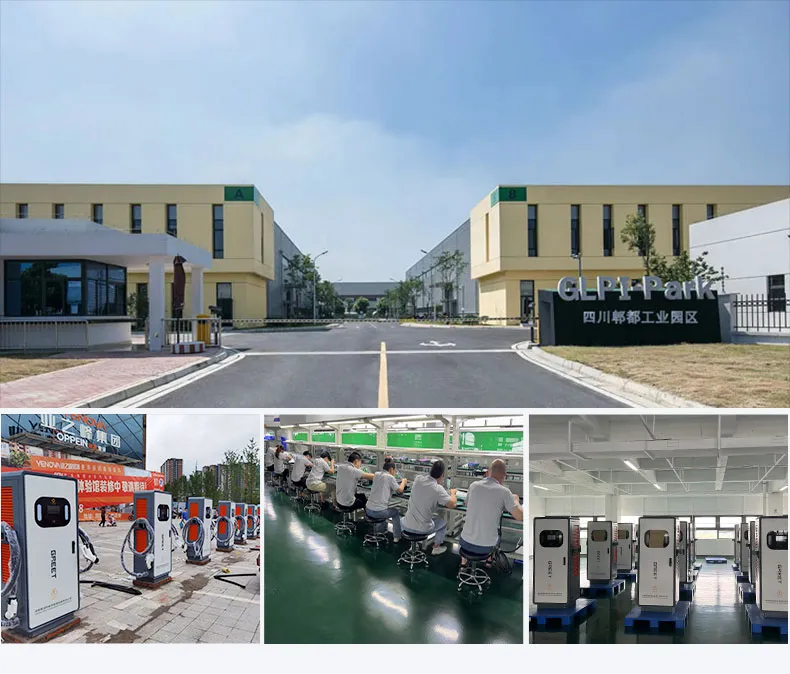

Sichuan Green Science & Technology Co. Ltd was founded in 2016, locates in Chengdu national Hi-tech development zone.
We dedicate in providing package technique and products solution for intelligent efficient and safe application of energy resources,
and for energy saving and emission reduction.

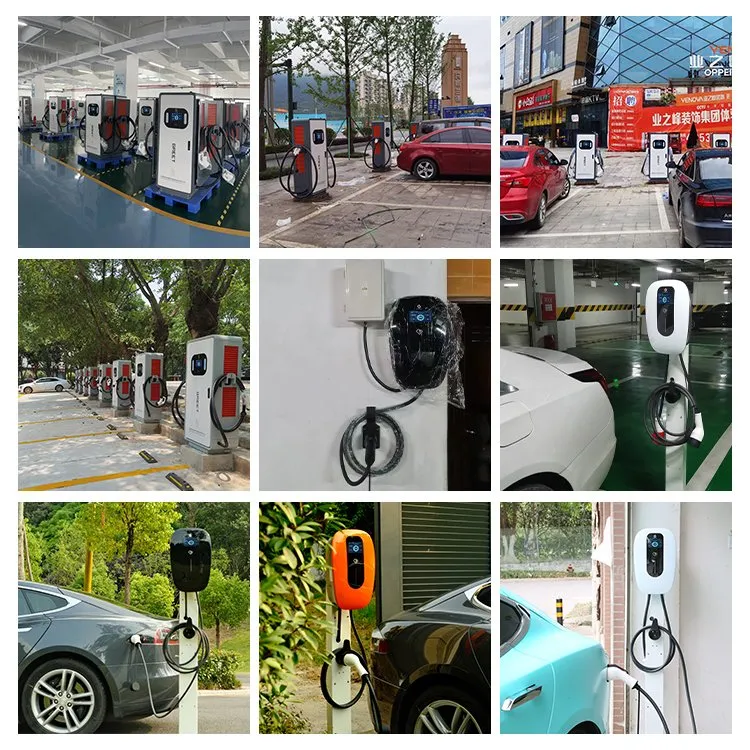

Our products cover portable charger, AC charger, DC charger, and software platform equipped with OCPP 1.6 protocol, providing
smart charging service for both hardware and software. We also can customize products by customer's sample or design concept
with competitive price in a short time.

Our value is "Passion, Sincerity, Professionalism." Here you can enjoy a professional technical team to solve your technical problems;
enthusiastic sales professionals to provide you with the most suitable solution to your needs; online or on-site factory inspection
at any time. Any require about EV charger please feel free to contact us, hope we will have a long-term mutual benefit relationship
in near future.

We are here for you !

IP65 Smart Home EV Charger Type 2 11kw 32A with RFID Card/APP

1. who are we?
We are based in Sichuan, China, start from 2016,sell to Southeast Asia(21.00%),Domestic Market(20.00%),Western Europe(18.00%),South America(14.00%),Eastern Europe(12.00%),Southern Europe(7.00%),Mid East(3.00%),North America(2.00%),Oceania(1.00%),Northern Europe(1.00%),Africa(1.00%),South Asia(0.00%),Eastern Asia(0.00%),Central America(0.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
EV Charger, EV Charging Stations, EV Charging Cables, Portable EV Charger

4. why should you buy from us not from other suppliers?
Wehas been working in the field of new energy for many years, we have mastered the main technology of the ev charger.The hardware, software and human-machine interface of the ev charger are all self-developed by our R&D team,we can make OEM/ODM order

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,Express Delivery;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Escrow;
Language Spoken:English,Spanish
