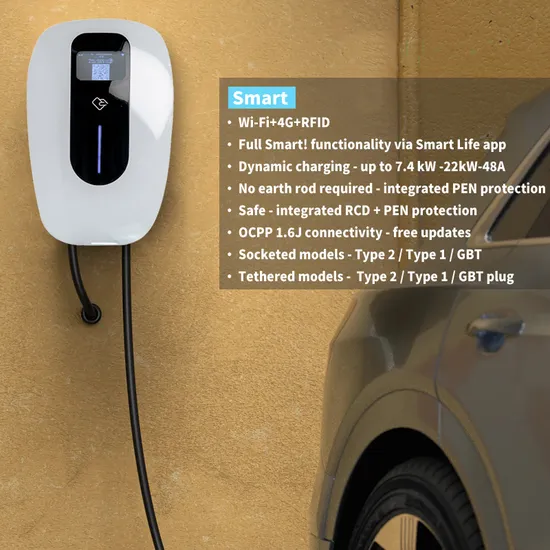

Product Advantages
* Suitable for every electric car with type1/type2/GBT charging plugs.
* RDC: 30mA AC+ 6mA DC Detection Safety protection circuit Surge protection charging.
* Extend the battery life significantly 20% longer life span expected.

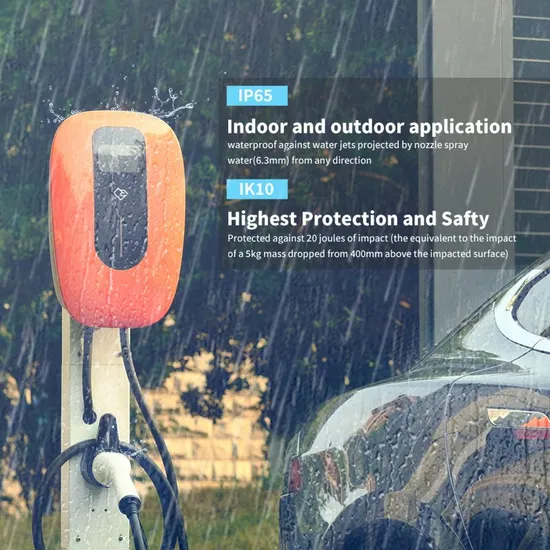

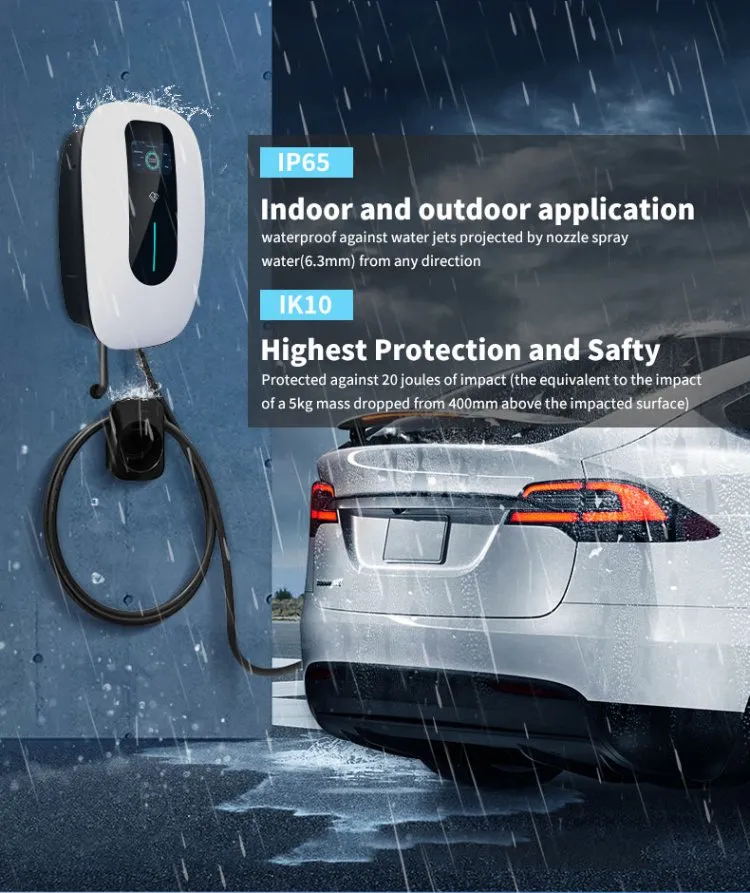

* IP65 Protection, against water, oil and dust.
* leading thermal management keeps running at cooler temperatures.
* Can be controlled by RFID Card/ WIFI/4G and Ethernet.
* Choose among 7kW/11kW/22kW.
* Dynamic Load Balancing, built in Active load management.
* Convenient APP (free download) schedules charges, shows status, session details etc.
* Inside or outside mounting possibilities.
* Over the air updates.
* Status indicator with 4 LED on front pane.
* App can be showed in different languages.
* Luxury appearance design with factory price.
* CE Certificate / RoHS Certificate FACC / SDOC / UL TEST REPORT
wall mount ev charger 20kw high efficiency ev charger outdoor ev charger high power ev charger ev charger charging station
| Datasheet | Model | GS7-AC -B01 | GGS11- AC -B01 | GS22- AC -B01 |
| Input | Power Supply | 1P+N+PE | 3P+N+PE | 3P+N+PE |
| Rated Voltage | 230V AC | 400V AC | 400V AC |
| Rated Current | 32A | 16A | 32A |
| Frequency | 50/60HZ | 50/60HZ | 50/60HZ |
| Output | OutputVoltage | 230V AC | 400V AC | 400V AC |
| Output Current: | 32A | 16A | 32A |
| Rated Output Power | 7kw | 11kw | 22kw |
| User Interface | Charging Port | Type 2 Cable/ GBT Cable |
| Cable Length | 3.5/4/5M |
| Enclosure Plastic | PC940A |
| LED Indicator | Yellow/Red/Green |
| RFID Reader | Mifare ISO/IEC 14443 A |
| Start Mode | Plug&Play /RFID card/App |
| Emergency Stop | Yes |
| Communication | WiFi | Optional |
| Bluetooth | Optional |
| OCPP | 1.6 Json (OCPP 2.0 optional) |
| Safety | RCD | 30mA Type A+6mA DC |
| Ingress Protection | IP65 |
| Impact Protection | IK10 |
| Electrical Protection | Over current protection, Residual current protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection |
| Certifification | CE |
| Certifification Standard | EN/IEC 61851 - 1: 2017, EN/IEC 61851 - 21 - 2: 2018 |
| Warranty | 1 Years |

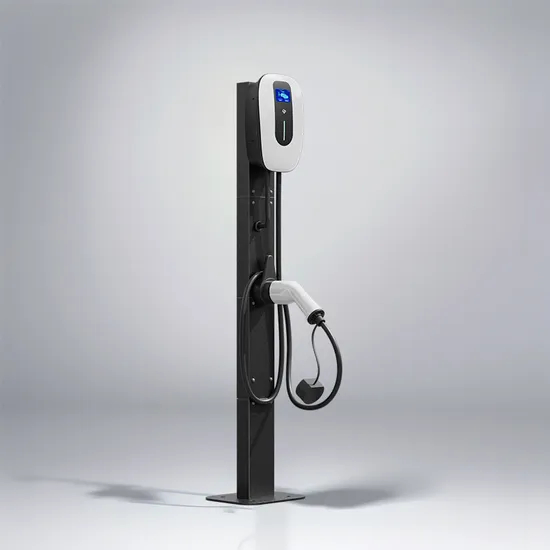

| Environment | Installation | Wall-mount/Pole - mount |
| Work Temperature | -25ºC~+50ºC |
| Work Humidity | 5%~95% |
| Work Altitude | <2000M |
| Package | Product Dimension | 340*285*147mm ( H*W*D ) |
| Package Dimension | 480*350*210 L*W*H) |
| Net Weight | 5kg |
| Gross Weight | 7.5kg |
| External Package | Carton |

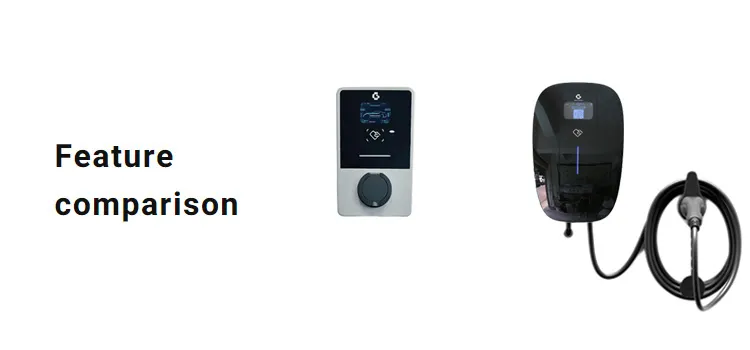

Parameters AC -Socket AC -Tethered Dimensions 336 x 186 x 85 mm 336 x 186 x 85 mm
Power 7kW / 11kW / 22kW 7kW / 11kW / 22kW
Cable --- 3.5M/5M/Longer
PEN Fault Detection ✓ ✓
DC Leakage Detection ✓ ✓
Schedules Smart Life App Smart Life App
Advanced Load Management ✓ ✓
Dynamic Load Balance ✓ ✓
RFID ✓ ✓

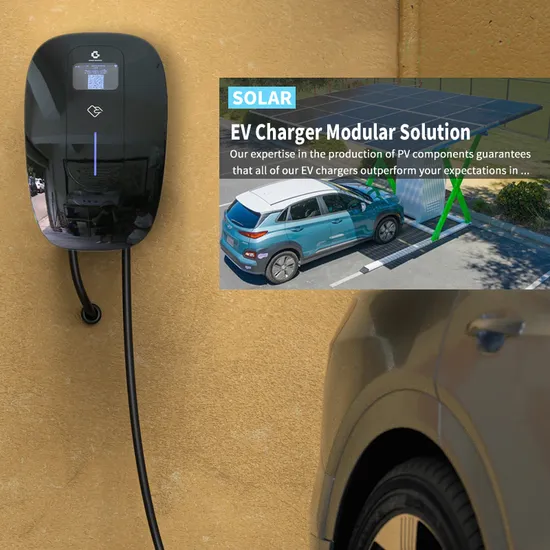

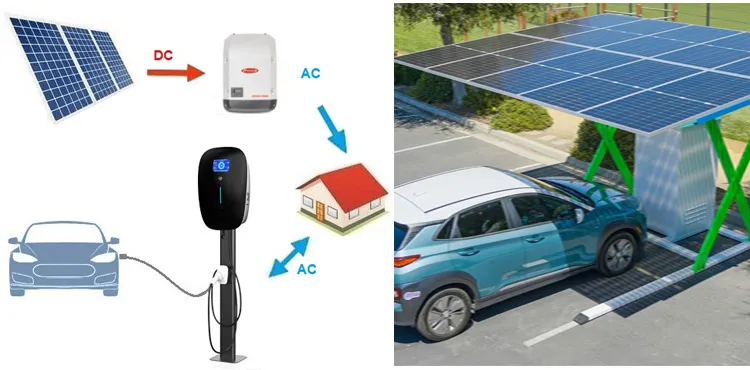

Solar Compatible ✓ ✓
4G Optional Optional
Enthernet Optional Optional
WIFI Optional Optional
OCPP ✓ ✓
Warranty 12Months 12Months

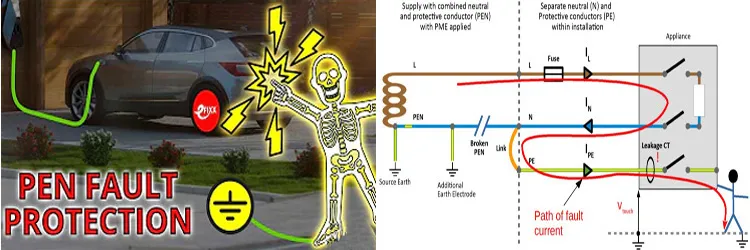

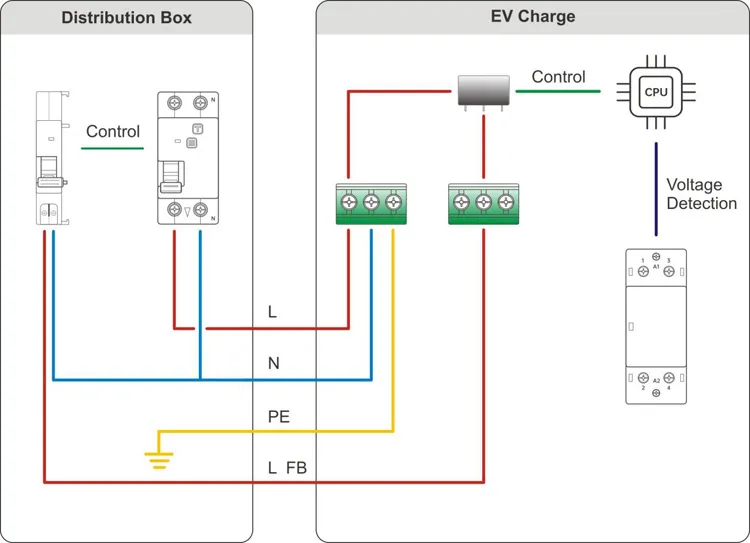

PEN Fault Detection
PEN
-An additional CT is installed in the PE conductor to detect any fault current-If the fault current reaches a predetermined
threshold, all conductors are switched off.
-The load and henceforth dangerous PE are become isolated from the supply.

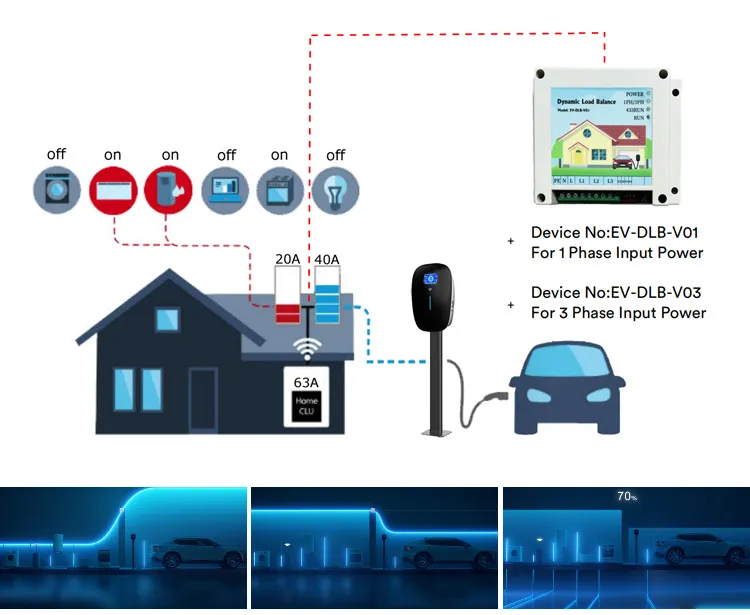

Dynamic Load Balance
DLB For safely balance the energy usage between your electric car chargers and other home appliances to make your car
chargers in the most efficient way.
Balance: DLB allows you to use your available power wherever you need it, for regular consumption during the day and
for charging during the night.
Optimisation: The charge of the EV by automatically adapts to the maximum available power of the installation.
Speed: DLB technology allows the EV/PHEV to charge as fast as possible.
Safety: DLB technology protects the main fuse and ensures that your household appliances can access the electricity
when needed.You won't need to worry about safety or overloading your circuit board.
Economy: There is no need to invest in increased power supply for your home.
Please remember: The amount of power you get for charging depends on a few factors. The wall charger, charging lead and
EV all limit the quantity of Amps available.

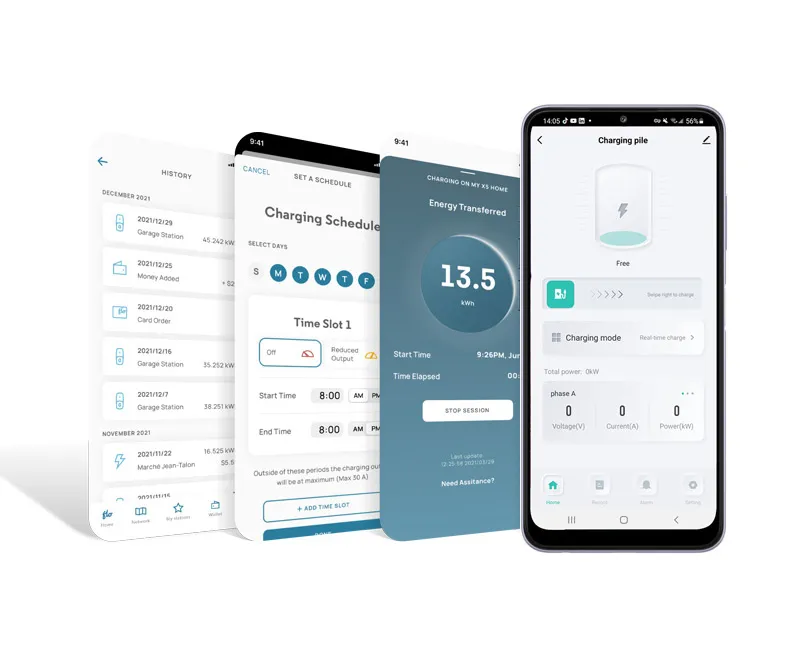

Use APP to track, manage, and optimize EV charging Mobile App 1. Optimize your EV charge routine to complement your lifestyle & energy tariff. 2. Start, stop, schedule charging remotely. 3. Receive notifications when charging is completed.
4. Control your smart home charging unit via Charge App.
5. Track your EV battery health while charging.
6. APP name can be customized according to customer request.

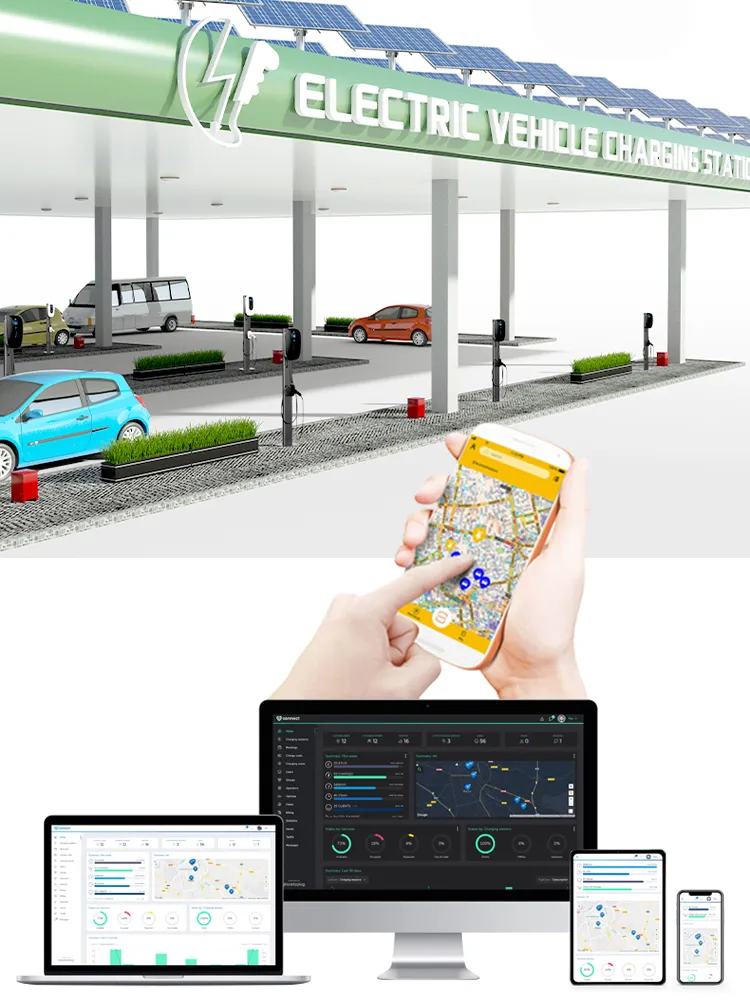

MaxiCharge Charging
Management Software With our one-stop SAAS(Software as a service) solution, you can manage your charging network easily, intelligently and
insight fully. Our charging management software lets you track and manage your charging network right from your
smartphone or computer.

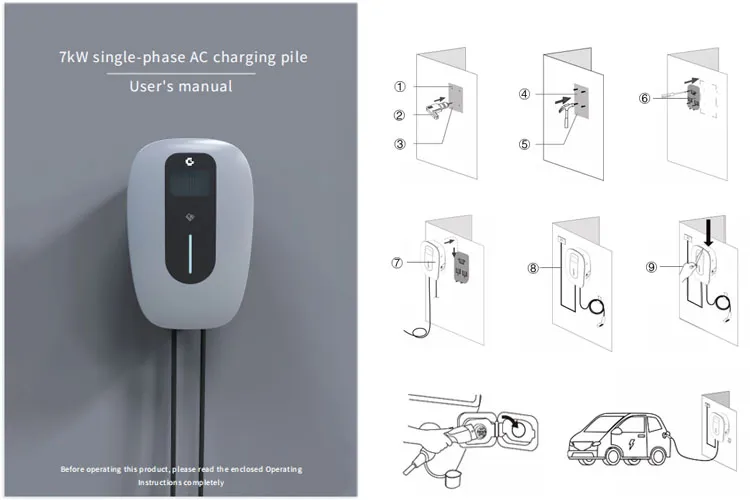

Steps Of Installation and Useage Specification Note:
1.After the vehicle is fully charged, the device will automatically stop charging 2.Please read the instructions carefully before use

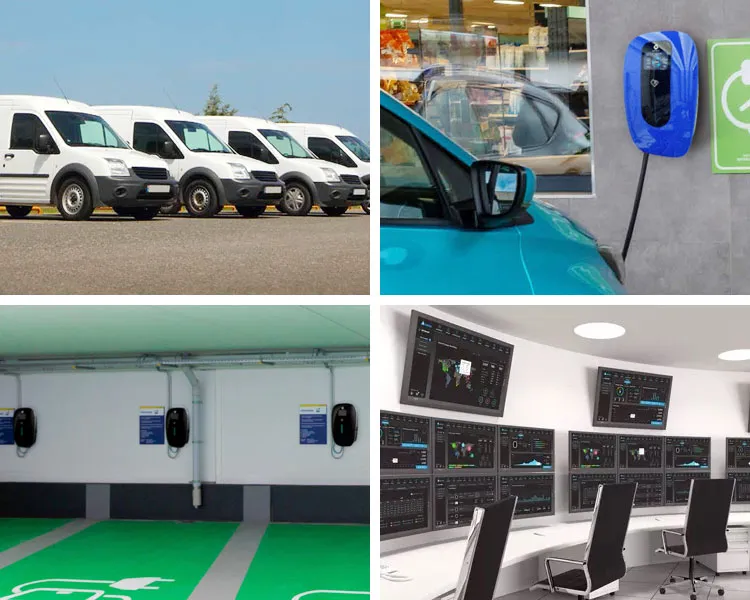

Charging Solution Residential Workplaces Gas Station Apartments Commercial Park Charging Network

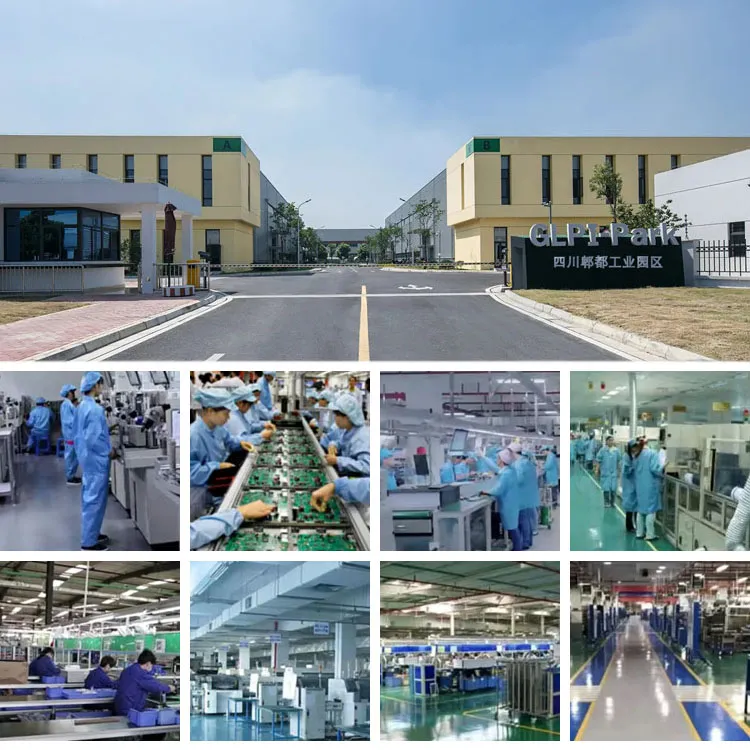

Company Profile
Sichuan Green Science & Technology Co. Ltd was founded in 2016, locates in Chengdu national Hi-tech development
zone. We dedicate in providing package technique and products solution for intelligent efficient and safe application of
energy resources, and for energy saving and emission reduction.
Through continuous technical innovation and marketing accumulation, Green Science has grown to be a professional
supplier for EV charging facility and solutions. Our products cover portable charger, AC charger, DC charger, and software platform equipped with OCPP 1.6 protocol,
providing smart charging service for both hardware and software. We also can customize products by customer's sample
or design paper with competitive price in a short time. Any require about EV charger please feel free to contact us, hope
we will have a long-term mutual benefit relationship in near future.
Exhibition History We have Participated in many EV charger exhibitions both at home and abroad. Our products were very popular with our
customers.
Express: For small quantity order or sample, shipping quickly but expensiveOcean Shipping: For big quantity order, a little
slowly but with competitive cost CRexpress: China Rail Way Express, transport by train from China to Europe, price good and fast

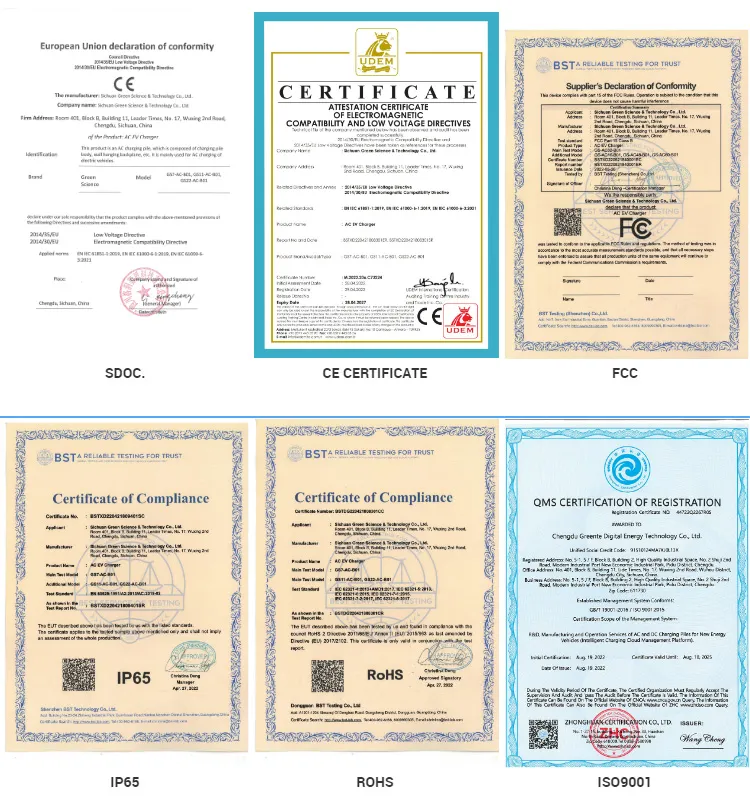

Certifications
Questions and Answers:
1.Are you a trading company or a factory? We are a high-tech enterprise with our own production plant, which integrates
design,R&D, and manufacturing. 2.What is your lead time for customer order? It usually takes 1-2 weeks to produce when it comes to a batch of
non-customized models. It usually takes 4-6 weeks to produce when it comes to a batch of customized models. 3.What
transportation methods are available? We provide customers with express, air and sea services. Express includes FedEx,
DHL, TNT,UPS, etc.
4.What is your delivery time? Express: 3 - 7 days By air: 5 - 10 days By sea: 20 - 35 days, depending on different
ports.
5. What payment terms? We accept all methods of payment: PayPal, T/T, Alibaba assurance, L/C etc, please contact us for
more details. 6.Is OEM service available? We provide a series of OEM customized services.
7.Is ODM service available? We provide ODM services. Please refer to the relevant page for more details.
8.Can I customize products with special features? We have complete technical reserves. We can meet all functional
requirements raised by customers within a reasonable range.
9.How long is the product warranty time? 1 year warranty. Based on the requirements of policies and regulations in
different regions, we can also provide customers with personalized solutions to extend the warranty time.
Steps Of Installation and Useage
