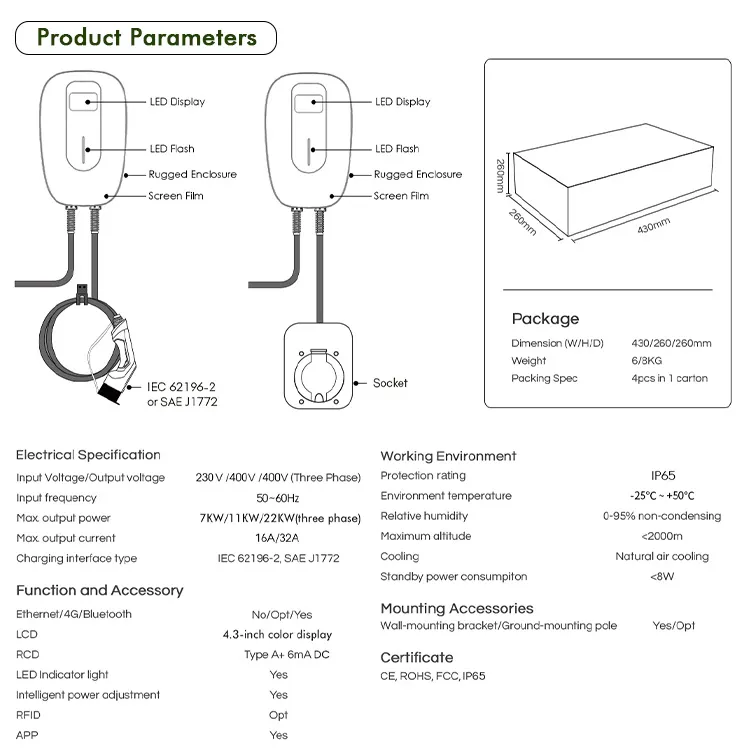

| Product Paramenters | |||
| Datasheet | Model | GS7-AC-B01 | |
| Input | Power Supply | 1P+N+PE | |
| Rated voltage | 230V AC | ||
| Rated Current | 32A | ||
| Frequency | 50/60HZ | ||
| Output | Output Voltage | 230V AC | |
| Maximum Current | 32A | ||
| Rated Power | 7KW | ||

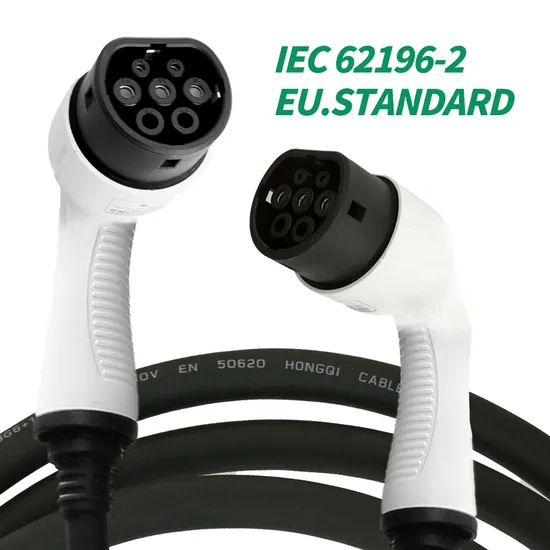

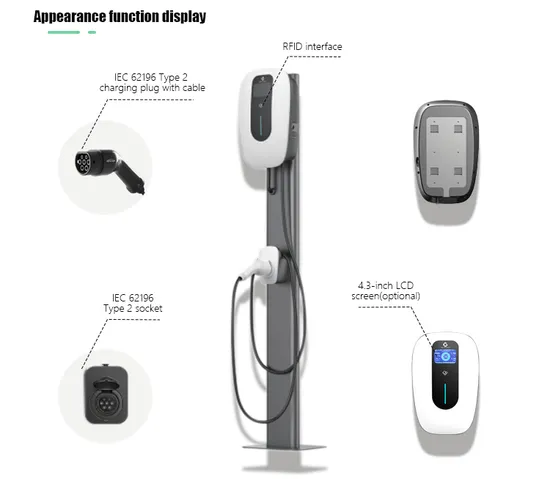

| User Interface | Charging Port | Type2 cable | |
| Cable Length (M) | 3.5/4/5 | ||
| Enclosure | Plastic PC940A | ||
| LED Indicator | Yellow/ Red/ Green | ||
| RFID Reader | Mifare ISO/ IEC 14443A | ||
| Start Mode | Plug&Play/ RFID Card/ APP | ||
| Commumication | Ememergency Stop | YES | |

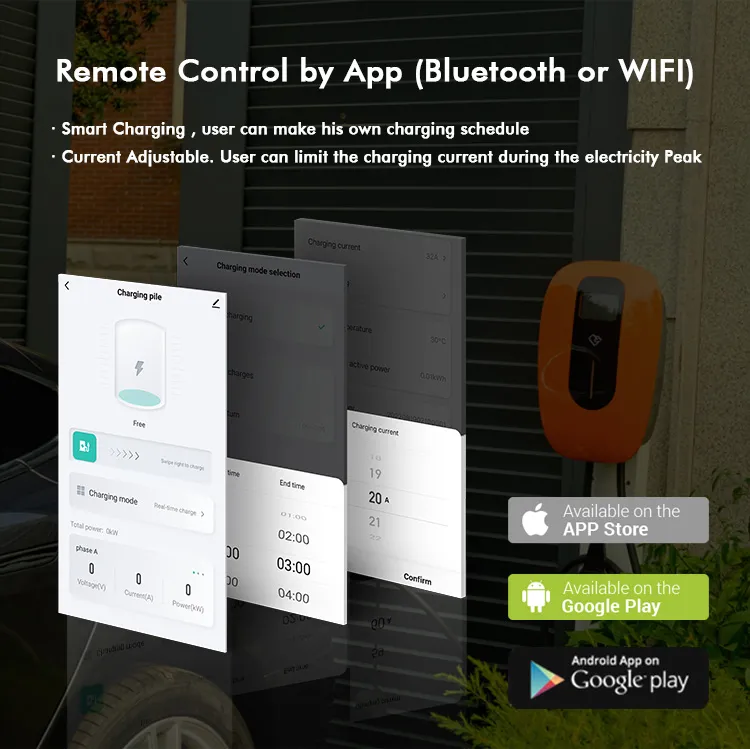

| Wifi/Bluetoth | Optional | ||
| OCPP | OCPP 1.6 Json (OCPP 2.0 optional) | ||
| Safety | RCD | 30mA TypeA+6mA DC | |
| Ingress Protection | IP65 | ||
| Impact Protection | IK10 | ||
| Certification Standard | EN/IEC 61851-1:2017, EN/IEC 61851-21-2:2018 | ||
| Warranty | 2 Years | ||

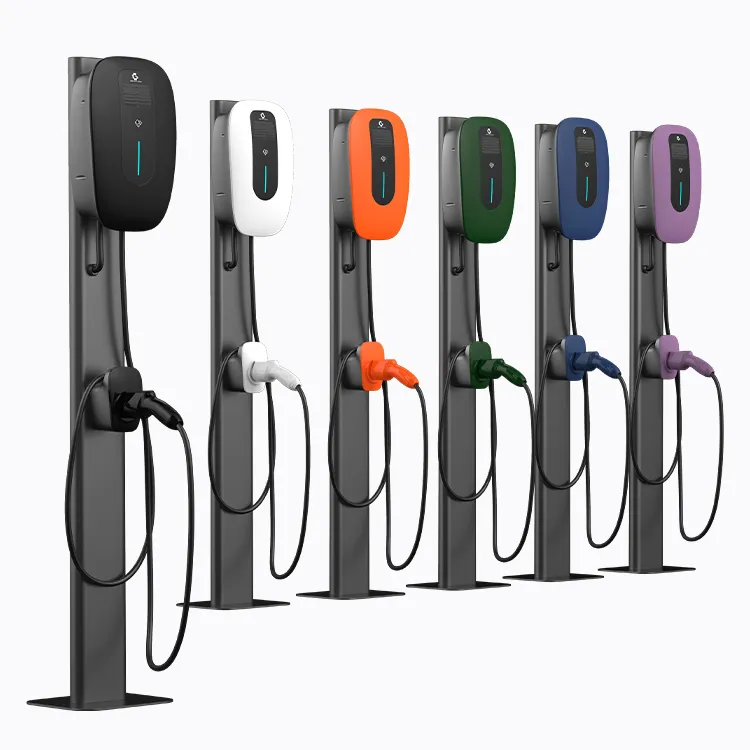

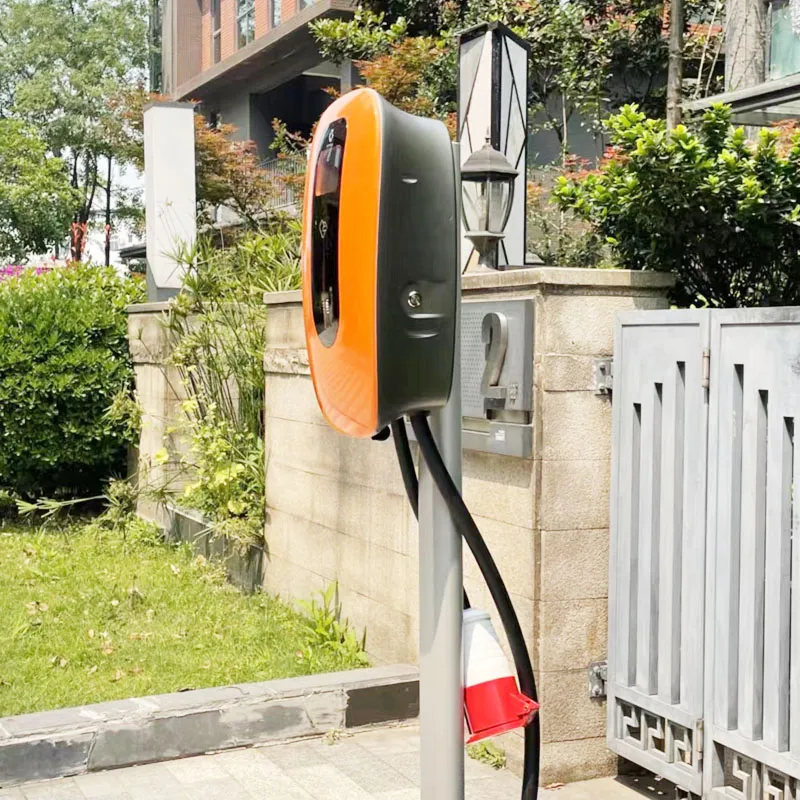

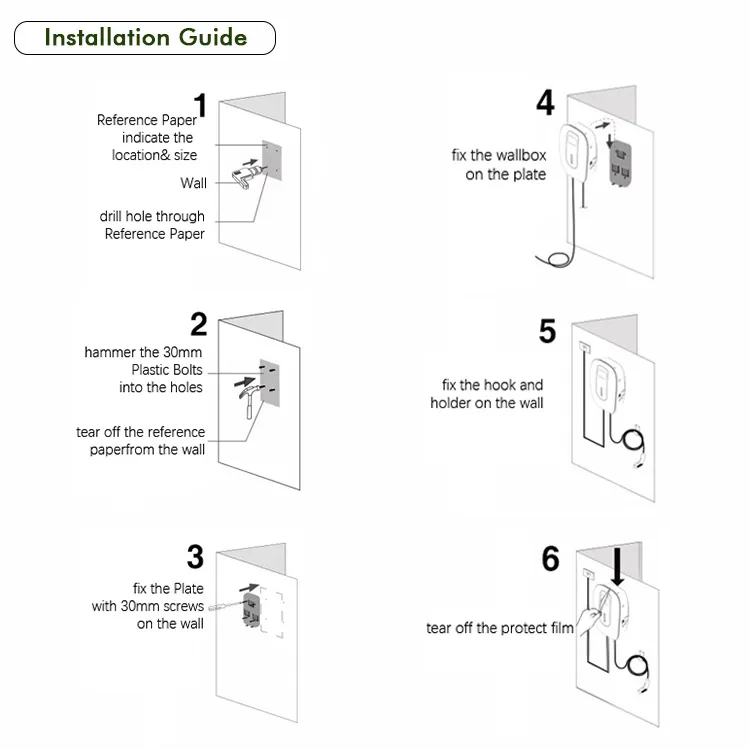

| Environment | Installation | Wall-mount Pole Mount | |
| Work Temperature | -25ºC-+50ºC | ||
| Work Humidity | 5%-95% | ||
| Work Altitude | <2000M | ||
| Package | Product Dimension | 340*285*147mm (H*W*D) | |
| Package Dimension | 480*350*210 (L*W*H) | ||
| Net Weight | 8KG | ||
